Technika zbrojenia

Wypusty uziemiające i zaciski przyłączeniowe do tworzenia połączeń wyrównawczych. Uziomy i przepusty ścienne do bezpiecznego wprowadzania przewodów do budynku. Zaciski do prętów zbrojeniowych do łączenia zbrojenia z instalacją uziemiającą w sposób umożliwiający przepływ prądu piorunowego.

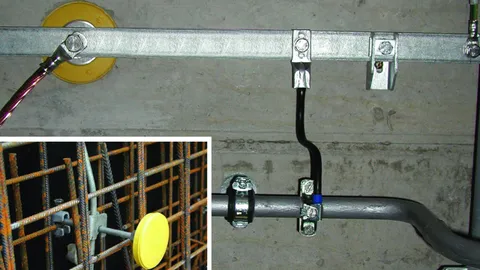

Wypusty uziemiające

For installation into concrete as corrosion-free connection to the earth-termination system for protective equipotential bonding and / or functional equipotential bonding of the down conductor e.g. to the reinforcement of buildings.
For the double thread M10 and M12 mind the following minimum lengths of the screws:
35 mm of M10 (thread length 40 mm)
15 mm of M12 (thread length 20 mm)

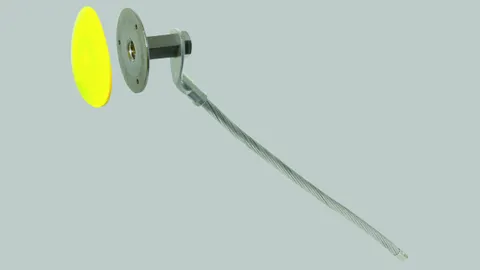

Wypust uziemiający M16

With connection thread M16 for higher current loadings (50 Hz), e.g. for connecting the ring equipotential bonding system with the earth-termination systems of power installations with nominal a.c. voltages over 1 kV (transformer earthing).

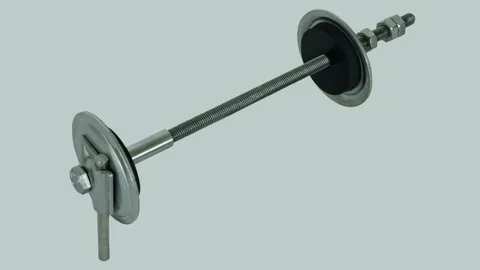

Przepusty ścienne i uziemiające

With MV clamp made of StSt (V4A) for round conductors 8-10 mm. For water pressure-tight ducting of the earthing conductor / equipotential bonding conductor through walls and brickwork with StSt threaded rod M10.

For subsequent installation through borehole (Ø14 mm) or through the formwork spreader.
Test for water pressure-tightness up to 1 bar features an installation depth of 10 m in stagnant water.

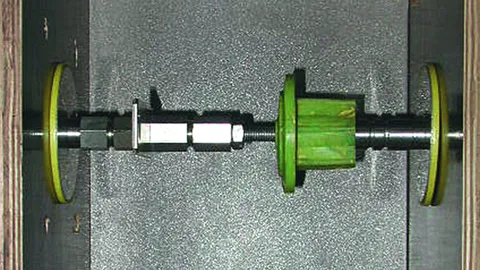

Wodoszczelne przepusty ścienne do białej wanny

For installation in the formwork.
For water pressure-tight bushing of walls, e.g. for connecting the ring earth electrode with the equipotential bonding bar or the equiopotential bonding conductor in the foundation.
Test for water pressure-tightness up to 1 bar features an installation depth of 10 m in stagnant water.
Tested with 5 bar compressed air in accordance with EN 62561-5.

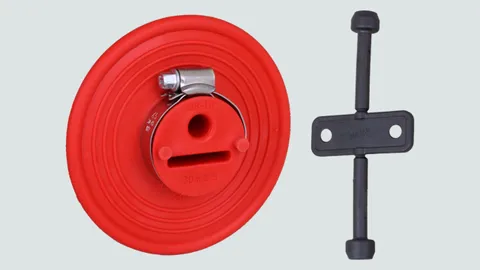

Uszczelka wodoszczelna do końcówek przyłączeniowych

Sealing collar for bushings of watertight foundation slabs / walls (e.g. white tank).
Water pressure-tight for pushing on round / flat conductors with StSt tensioning straps.

Test for water pressure-tightness up to 1 bar features an installation depth of 10 m in stagnant water, additionally tested with 5 bar compressed air according to EN 62561-5.

Zaciski łączące do wypustów uziemiających i zbrojenia

For connecting the reinforcement with clamping frame.
For round conductors or fixed earthing terminals with concomitant fixing in the formwork.

Arrangement:
(II) = parallel
(+) = cross

Końcówki

For screwing to the fixed earthing terminal to connect e.g. an equipotential bonding bar or construction elements such as steel girders etc.

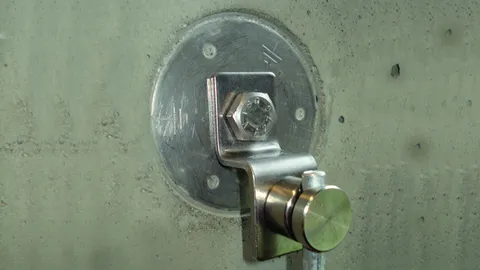

Zaciski przyłączeniowe z gwintowanym sworzniem

For connection of round and flat conductors to fixed earthing terminals with thread M10 / M12 (e.g. Part No. 478 011, 478 200) and thread M16 (Part No. 478 027).

Clamps with thread M10 are also suitable for installation on the back side of the fixed earthing terminal (without connection axis) e.g. to connect flat strip.

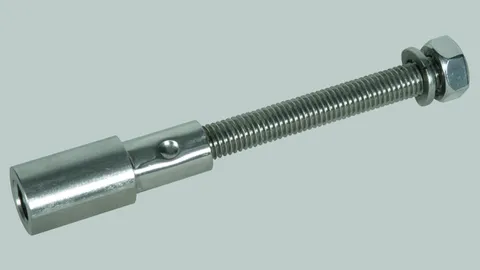

Adapter gwintowany

For connection to fixed earthing terminals with thread M10, lock nut and spring washer, for use in case of perimeter insulation or thermal insulation composite systems.

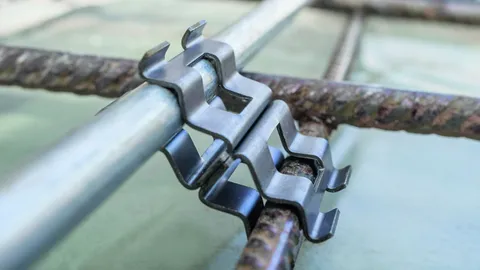

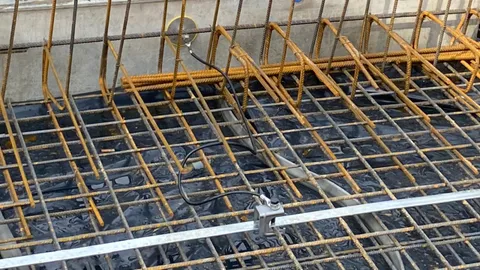

Zacisk do zbrojenia DEHNclip

In accordance with the German standard DIN 18014: 2014-03 Fundamenterder – Planung, Ausführung und Dokumentation (Title Englisch: Foundation earth electrode - Planning, execution and documentation), foundation earth electrodes have to be connected every two meters with the reinforcement of the foundation plate. Among the various connection possibilities the clamping connection has turned out to be the most economic, as it can be realised fast and easily on site.

Among others also reinforcing steels shall be used as natural components of the down conductor system according to the current lightning protection standards. In the following a survey of the nominal and outer diameters as well as cross sections of the reinforcing steels DIN EN 10080: 2005 (see Figure 1).

For connecting concrete reinforcing mats or reinforcements with round and flat conductors.
Arrangement: (II) = parallel (+) = cross

Quick and safe:
Without tools the new DEHNclip® rebar clamp allows to connect the earth electrode quick and safely with the reinforcing structure. DEHNclip® is tested for a lightning current carrying capability of 50 kA (10/350 µs) in accordance with EN 62561-1.

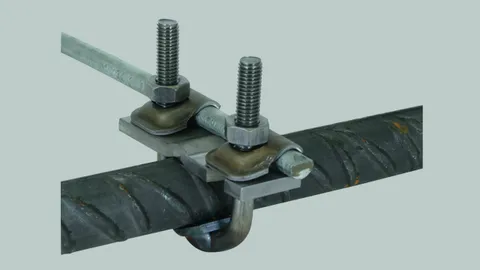

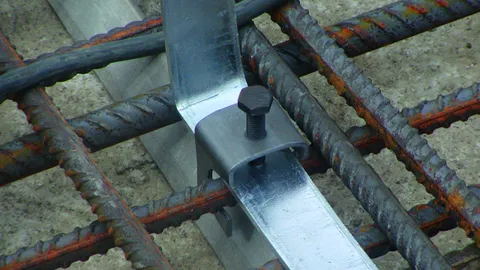

Zaciski łączące do zbrojenia

In accordance with the German standard DIN 18014: 2014-03 Fundamenterder – Planung, Ausführung und Dokumentation (Title Englisch: Foundation earth electrode - Planning, execution and documentation), foundation earth electrodes have to be connected every two meters with the reinforcement of the foundation plate. Among the various connection possibilities the clamping connection has turned out to be the most economic, as it can be realised fast and easily on site.

Among others also reinforcing steels shall be used as natural components of the down conductor system according to the current lightning protection standards. In the following a survey of the nominal and outer diameters as well as cross sections of the reinforcing steels DIN EN 10080: 2005.

For connecting concrete reinforcing mats or reinforcements with round and flat conductors.
Arrangement: (II) = parallel (+) = cross

Zacisk łączące do uziomów fundamentowych

For connecting round and flat conductors in the concrete foundation.
For T, cross and parallel connections, no need of threading the conductors.

Arrangement:
(II) = parallel
(+) = crosswise

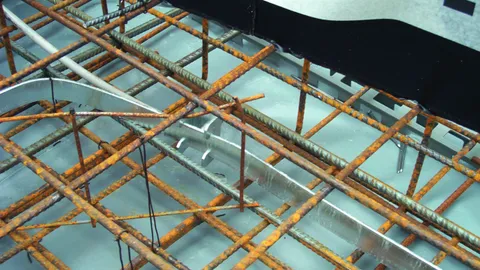

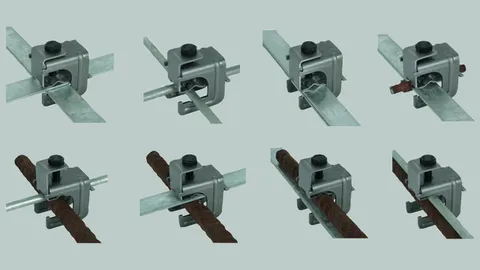

Zaciski łączące do uziomów fundamentowych i zbrojeń

For connecting round and flat conductors in the concrete foundation or the
concrete reinforcing mats and the reinforcements with round and flat conductors.

Arrangement:
(II) = parallel
(+) = cross
