Statyw do rur wsporczych z tworzywa sztucznego wzmocnionego włóknem szklanym / aluminium i iglic odgromowych Ø40

For erection by means of a counter plate on wire mesh cable trays and steel girders or other structures. The adapter set for Ø40 air-termination rods is available separately in the accessories.
The D40 air-termination rods / supporting tubes must be ordered separately.

1 Produkt

Nr kat. 105244 SRS D50 300 300 H500 STTZN

GTIN / EAN 4013364503069, Nr taryfy celnej (EU): 85389099, Waga brutto: 9.50 kg, Jednostka opakowaniowa: 1.00 szt.

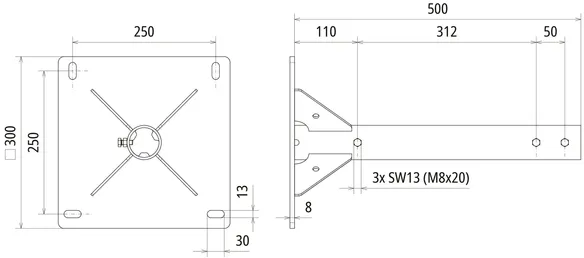

Rysunki

Informacje dodatkowe

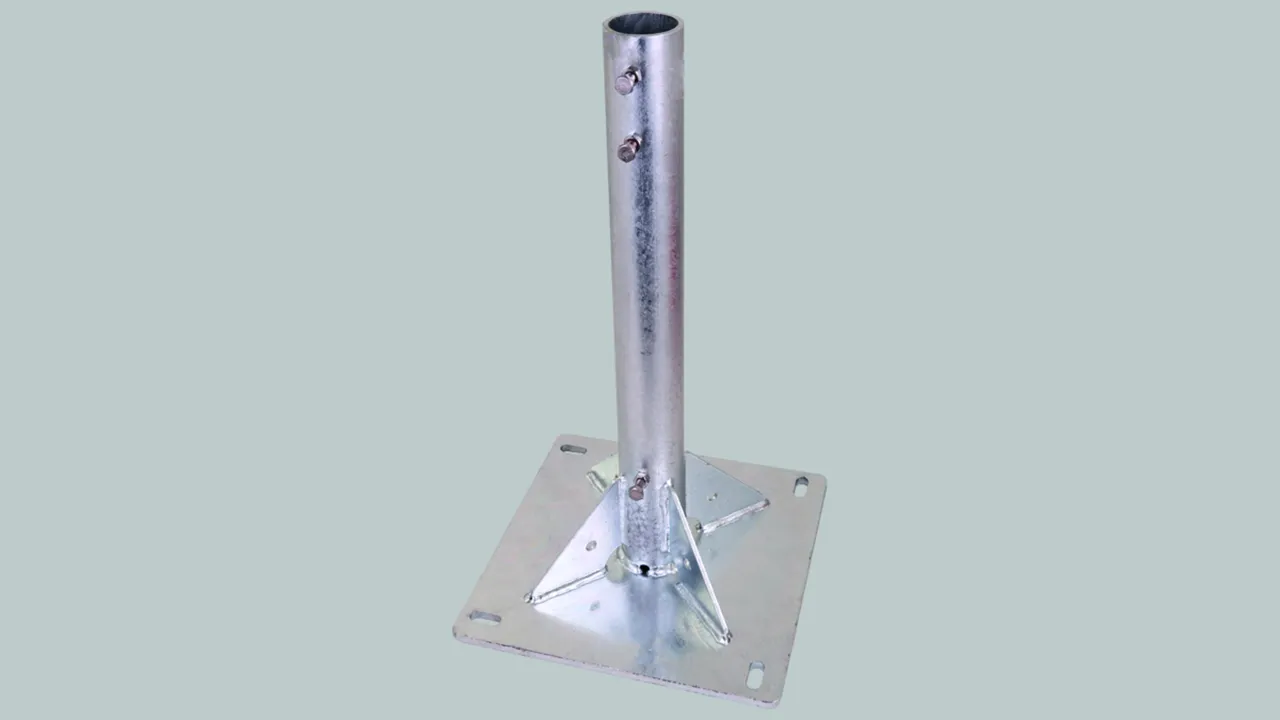

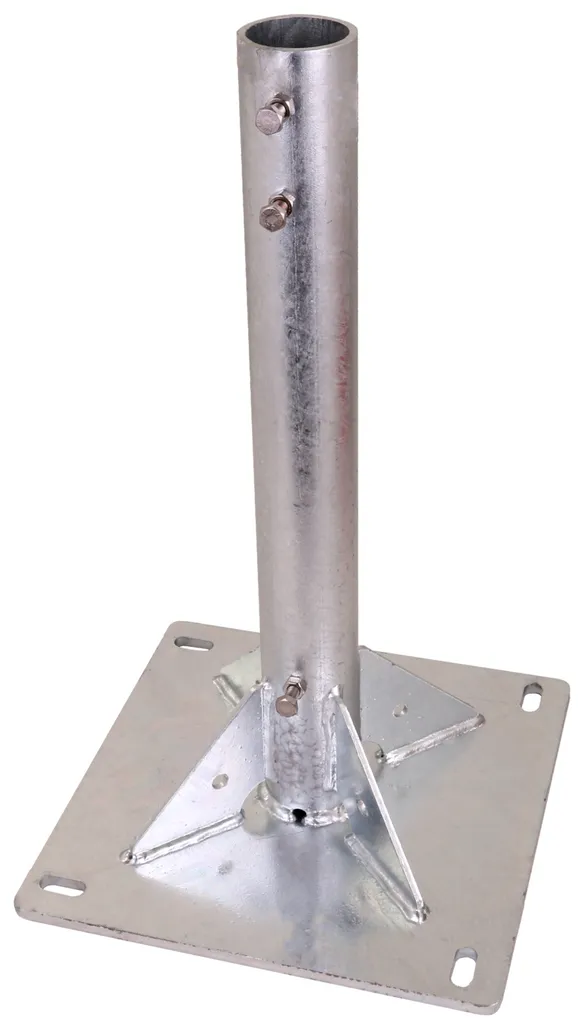

Supporting tube stand with HDG steel post
For holding Ø50 mm supporting tubes
With reducing adapter set, part no. 107 399
it is possible to hold air-termination rods with a
diameter of 40 mm
For erection directly on installations or
mounted using a counter plate with long hole
e.g. to steel girders or mesh mats
Material: HDG steel
Support: Ø50 mm and Ø40 mm *)
Fixing: 4x 13 x 30 mm
Plate dimensions: 300 x 300 x 8 mm
Height: 500 mm

Producent: DEHN
Typ: SRS D50 300 300 H500 STTZN
Nr kat.: 105244
lub podobny.



Dane techniczne

Material HDG steel
Support Ø50 mm and Ø40 mm *)
Fixing 4x 13 x 30 mm
Plate dimensions 300 x 300 x 8 mm
Height 500 mm
*) Supporting of Ø40 mm air-termination rods only possible with adapter set part no. 107 399.
*) Supporting of Ø40 mm HVI supporting tubes only possible with adapter part no. 819 799.
