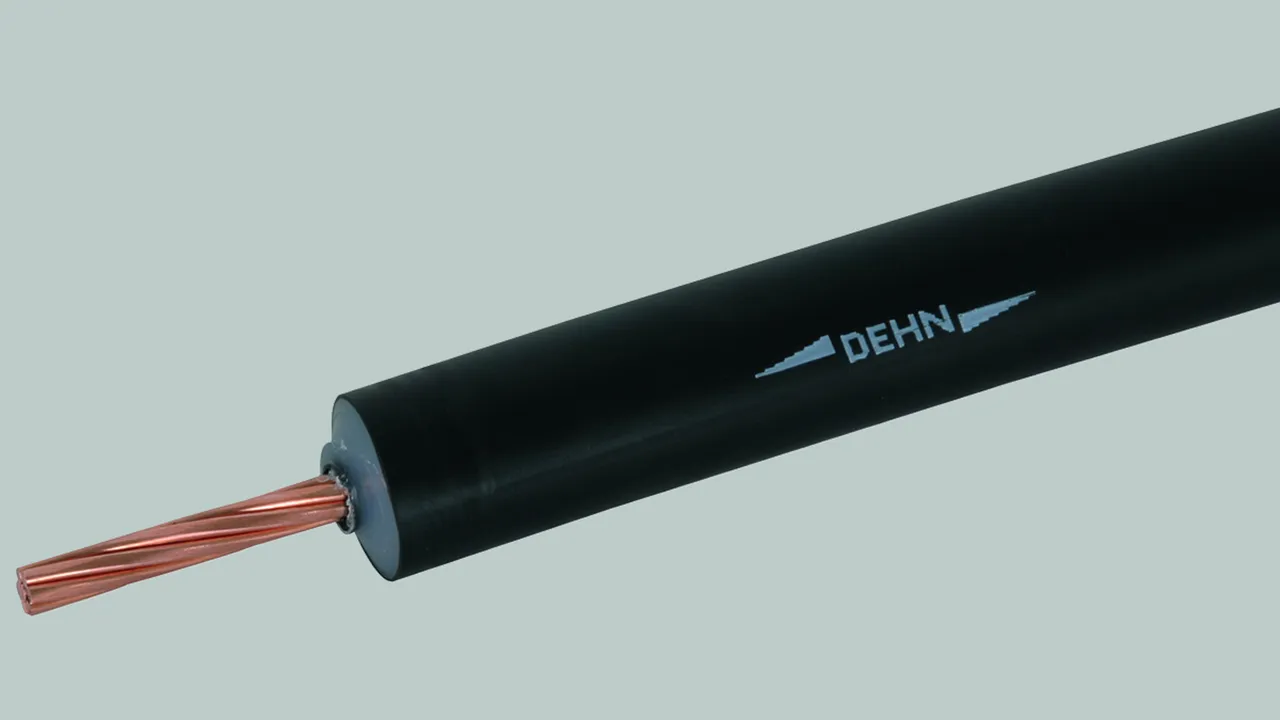

Przewód HVI / HVI long
:quality(98)/www.dehn.pl/store/f/40722310/HDVORSCHAU/819135_mehrdr_16-9.jpg)
:quality(98)/www.dehn.pl/store/f/40722310/HDVORSCHAU/819135_mehrdr_16-9.jpg)
High-voltage-resistant, insulated down conductor for keeping the separation distance to electrically conductive parts according to IEC/EN 62305-3.
Applicable up to an equivalent separation distance s ≤ 75 cm (in air) or s ≤ 150 cm (solid material).
The HVI long Conductor meets the requirements of EN 62561-1.
The processing temperature -5 to +40 °C and the permanent temperature range of -30 bis +70 °C (in case of fixed installation) have to be observed.
Applicable up to an equivalent separation distance s ≤ 75 cm (in air) or s ≤ 150 cm (solid material).
The HVI long Conductor meets the requirements of EN 62561-1.
The processing temperature -5 to +40 °C and the permanent temperature range of -30 bis +70 °C (in case of fixed installation) have to be observed.
Nr kat. 819131 HVI LO 75 20 L... SW M
GTIN / EAN 4013364223189, Nr taryfy celnej (EU): 85446010, Waga brutto: 4.22 kg, Jednostka opakowaniowa: 1.00 szt.

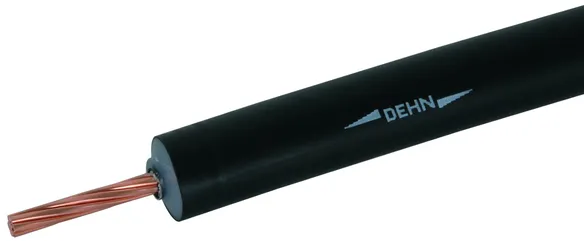

Rysunki
:quality(98)/www.dehn.pl/store/f/40722317/HDVORSCHAU/819135_mehrdr.jpg)
:quality(98)/www.dehn.pl/store/f/40722317/HDVORSCHAU/819135_mehrdr.jpg)
Certyfikaty
Dane techniczne
| Materiał przewodu | Cu |
| Materiał izolacji | PE |
| Materiał płaszcza | PVC |
| Kolor przewodu | black ● |
| Średnica przewodu Ø | 20 mm |
| Minimalna długość do zamówienia | 6 m |
| <TRANSLATION_PLACEHOLDER> | <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER> |
| <TRANSLATION_PLACEHOLDER> (<TRANSLATION_PLACEHOLDER>) | <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER> |
