Zestaw przyłączeniowy do rur wsporczych o nr kat. 105 272 i 105 273

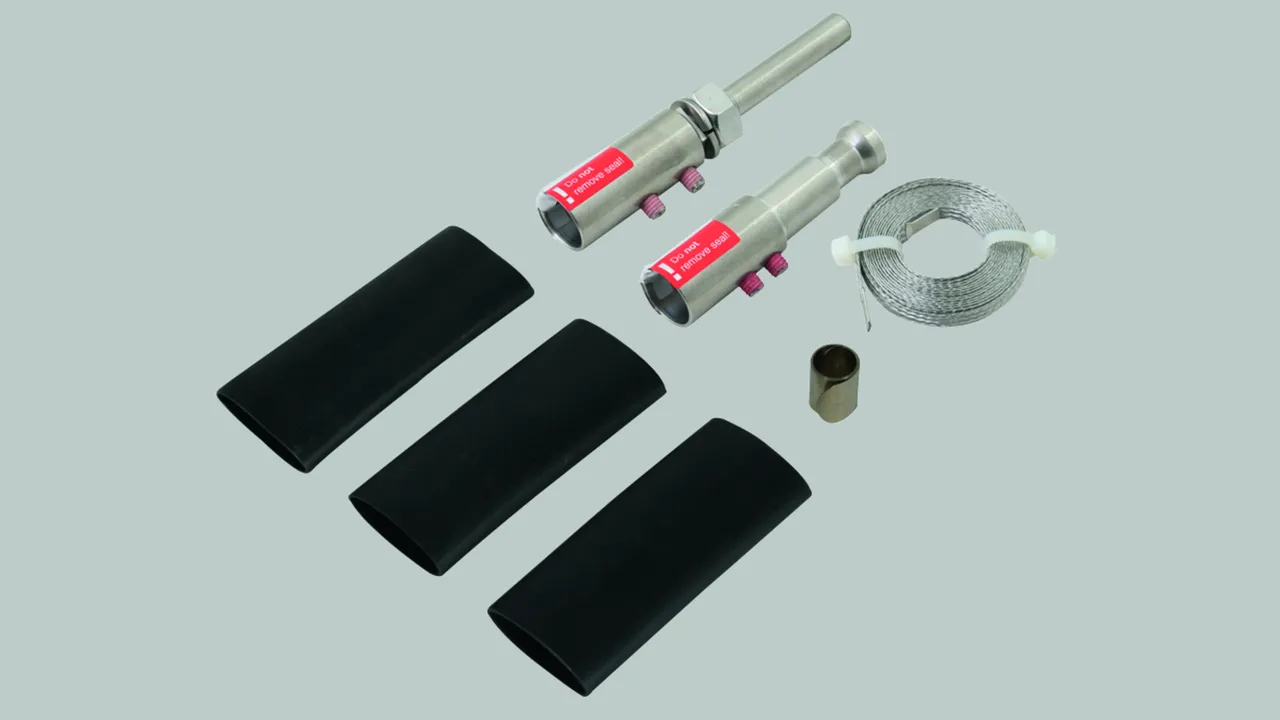

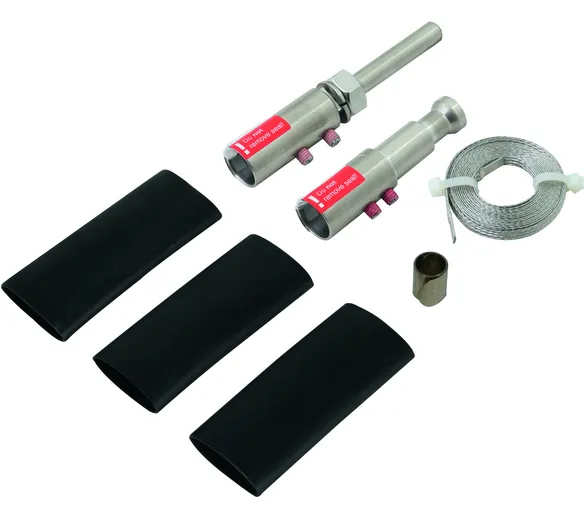

Connection kit for sealing the HVI light Conductor at both ends, for implementing the adjustment range of the conductor in the supporting tube (head piece) and connection element for other parts of the external lightning protection system or earth-termination system (incl. EB connection cable, constant force spring and three heat-shrinkable sleeves).
1 Produkt

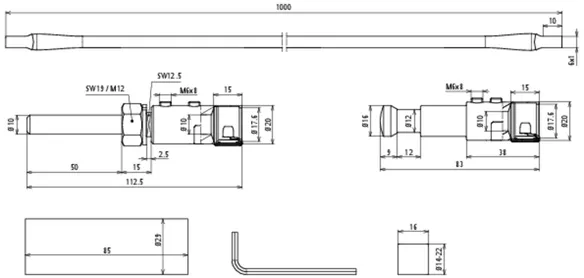

Nr kat. 819271 HVI LI ASS RIV KF GFB1000 V2A
GTIN / EAN 4013364255845, Nr taryfy celnej (EU): 85359000, Waga brutto: 321.08 g, Jednostka opakowaniowa: 1.00 szt.
Dane techniczne
Materiał elementów przyłączeniowych | StSt |
Przyłączenie | bolt Ø10 mm, L 50 mm |
Średnica elementu przyłączeniowego Ø | 20 mm |
Śruba | threaded bolt M6 x 8 mm |
Nakrętka | M12 |
Przewód wyrównawczy | Strip 1000 x 18 x 0.4 mm |
Materiał obejmy połączenia wyrównawczego | StSt |
<TRANSLATION_PLACEHOLDER> (<TRANSLATION_PLACEHOLDER>) | <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER> |
Zestaw przyłączeniowy do rur wsporczych o nr kat. 105 274 i 105 280
Connection kit for sealing the HVI light Conductor at both ends, for implementing the adjustment range of the conductor in the supporting tube (head piece) and connection element for other parts of the external lightning protection system or earth-termination system (incl. EB connection cable, constant force spring and three heat-shrinkable sleeves).
1 Produkt

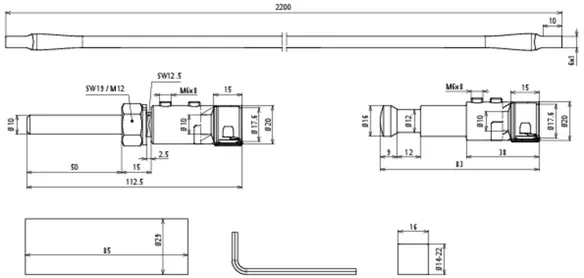

Nr kat. 819272 HVI LI ASS RIV KF GFB2200 V2A
GTIN / EAN 4013364255876, Nr taryfy celnej (EU): 85359000, Waga brutto: 296.00 g, Jednostka opakowaniowa: 1.00 szt.
Dane techniczne
Materiał elementów przyłączeniowych | StSt |
Przyłączenie | bolt Ø10 mm, L 50 mm |
Średnica elementu przyłączeniowego Ø | 20 mm |
Śruba | threaded bolt M6 x 8 mm |
Nakrętka | M12 |
Przewód wyrównawczy | strip 2200 x 18 x 0,4 mm |
Materiał obejmy połączenia wyrównawczego | StSt |
<TRANSLATION_PLACEHOLDER> (<TRANSLATION_PLACEHOLDER>) | <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER> |
