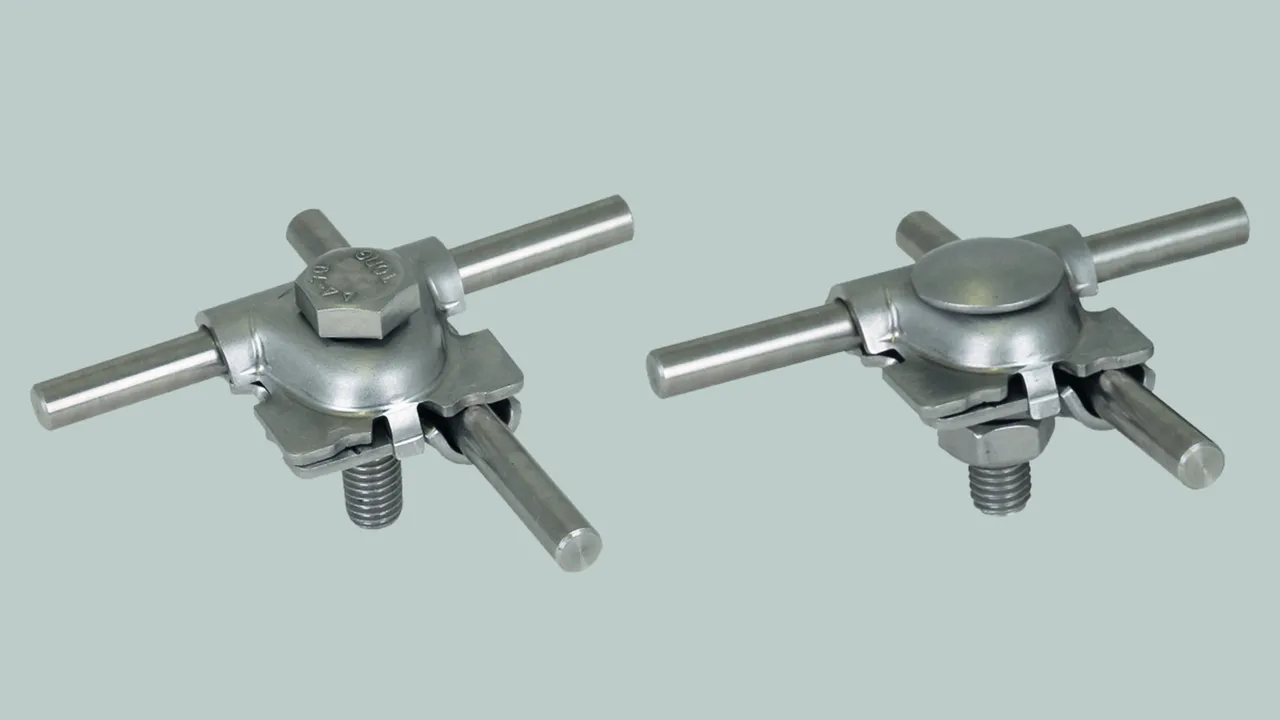

Zaciski MV z ryglem

Multi-purposeconnecting clamp with locking lug for universal use as a cross clamp, T clamp and parallel clamp; two-part.

Ze śrubą z łbem sześciokątnym

1 Produkt

Nr kat. 391079 MVK AR 8.10 SKM10X40 V4A

GTIN / EAN 4013364487130, Nr taryfy celnej (EU): 85359000, Waga brutto: 95.18 g, Jednostka opakowaniowa: 50.00 szt.

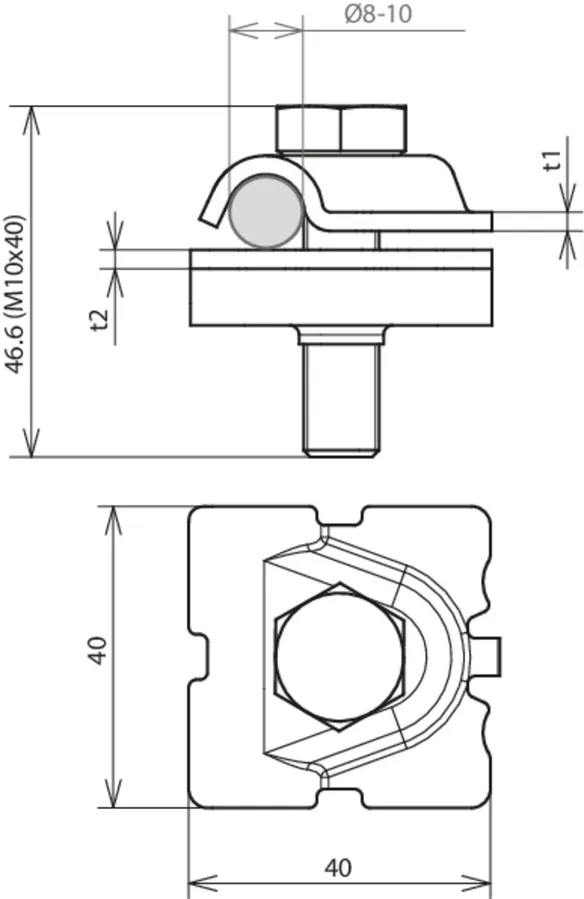

Rysunki

Informacje dodatkowe

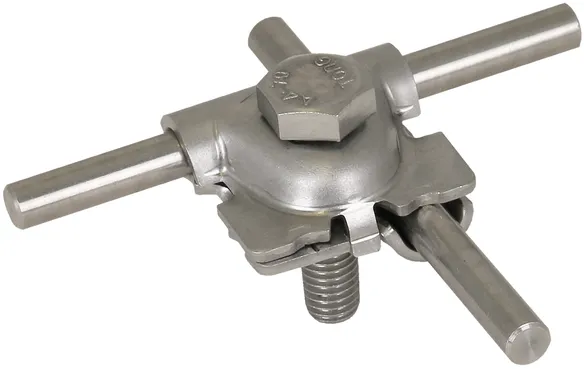

MV clamp with hexagon screw, StSt (V4A)
Multi-purpose connecting clamp
with anti-rotation protection
for universal use
as a cross clamp, T clamp and parallel clamp
for round conductors
Capable of carrying lightning current
tested to EN 62561-1
with hexagon screw and
threaded base part
Material of clamp: StSt (V4A)
Clamping range Rd: 8-10 mm
Material thickness: 2.5 / 2.5 mm
Material No.: 1.4571 / 1.4404 / 1.4401
ASTM / AISI:: 316Ti / 316L / 316
Standard: EN 62561-1

Producent: DEHN
Typ: MVK AR 8.10 SKM10X40 V4A
Nr kat.: 391079
lub podobny.

Certyfikaty



Dane techniczne

Material of clamp StSt (V4A)
Material No. 1.4571 / 1.4404 / 1.4401
ASTM / AISI: 316Ti / 316L / 316
Clamping range Rd 8-10 mm
Screw di M10 x 40 mm
Material of screw / nut StSt (V4A)
Material No. 1.4571 / 1.4404 / 1.4401
ASTM / AISI: 316Ti / 316L / 316
Standard EN 62561-1
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) 3.9 *) kA
*) For exact assignment, see test certificate.

Produkt 391079 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 391079.

Idź do sklepu internetowego

Ze śrubą z łbem grzybkowym

1 Produkt

Nr kat. 391070 MVK AR 8.10 FRM10X40 V4A

GTIN / EAN 4013364487123, Nr taryfy celnej (EU): 85359000, Waga brutto: 105.00 g, Jednostka opakowaniowa: 50.00 szt.

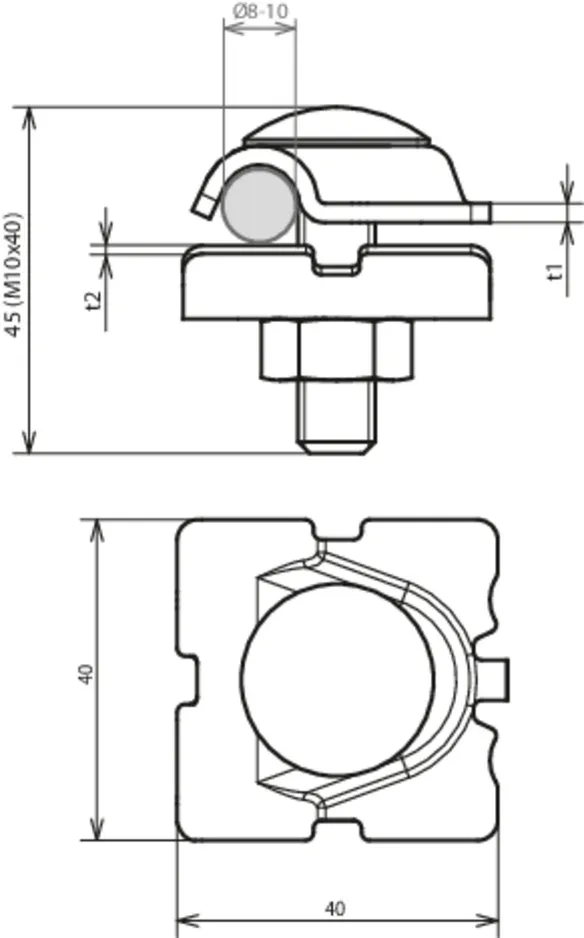

Rysunki

Informacje dodatkowe

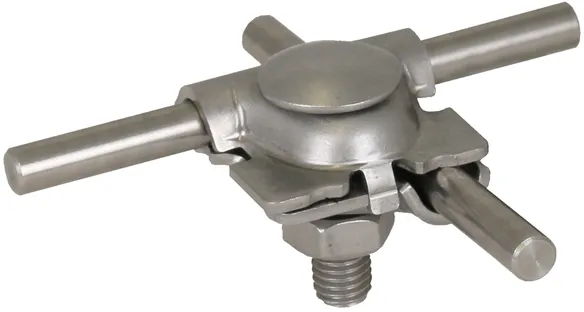

MV clamp with truss head screw, StSt (V4A)
Multi-purpose connecting clamp
with anti-rotation protection
for universal use
as a cross clamp, T clamp and parallel clamp
for round conductors
Capable of carrying lightning current
tested to EN 62561-1
with truss head screw
Material of clamp: StSt (V4A)
Clamping range Rd: 8-10 mm
Material thickness: 3.0 / 2.5 mm
Material No.: 1.4571 / 1.4404 / 1.4401
ASTM / AISI:: 316Ti / 316L / 316
Standard: EN 62561-1

Producent: DEHN
Typ: MVK AR 8.10 FRM10X40 V4A
Nr kat.: 391070
lub podobny.

Certyfikaty



Dane techniczne

Material of clamp StSt (V4A)
Material No. 1.4571 / 1.4404 / 1.4401
ASTM / AISI: 316Ti / 316L / 316
Clamping range Rd 8-10 mm
Screw e M10 x 40 mm
Material of screw / nut StSt (V4A)
Material No. 1.4571 / 1.4404 / 1.4401
ASTM / AISI: 316Ti / 316L / 316
Standard EN 62561-1
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) 3.9 *) kA
*) For exact assignment, see test certificate.
