Wskaźnik napięcia PHE - zestaw

Easy and safe testing

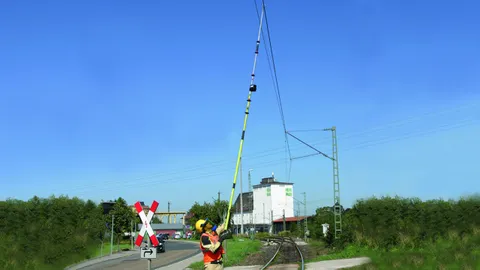

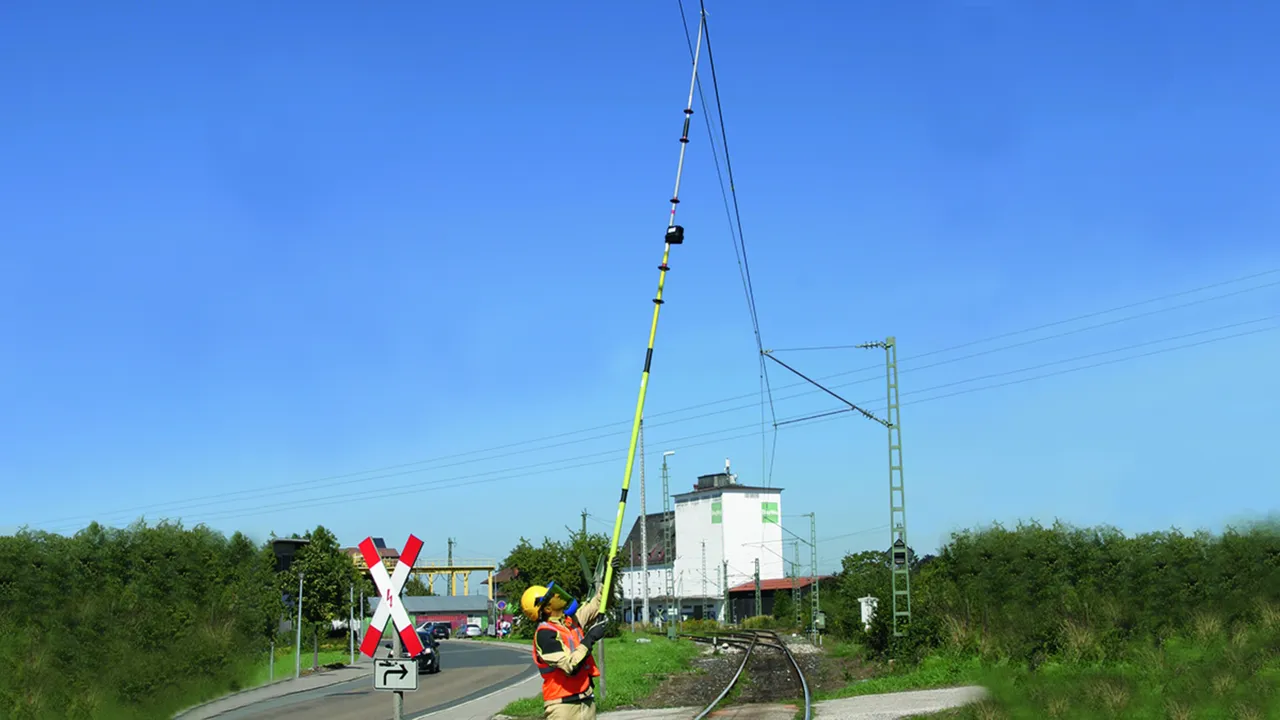

For overhead contact lines of electric railways
Cost-effective / space-saving transport
Easy to use due to simple plug-in system

Szczegóły

End fitting with plug-in coupling and non-slip eye

lorem ipsum — End fitting with plug-in coupling and non-slip eye

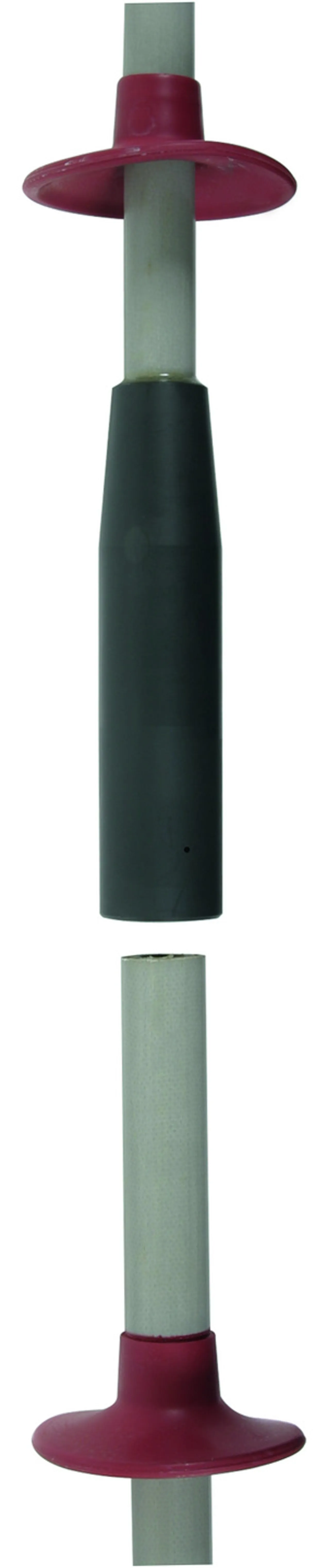

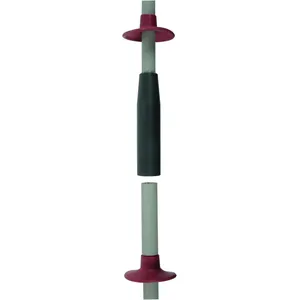

Two-part test prod with robust threaded coupling (six-part kit for transport in motor vehicles)

lorem ipsum — Two-part test prod with robust threaded coupling (six-part kit for transport in motor vehicles)

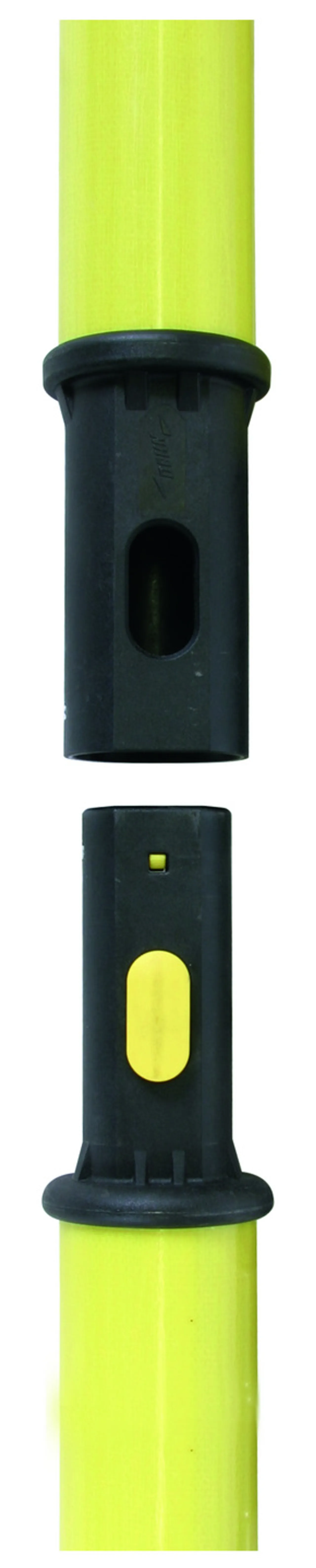

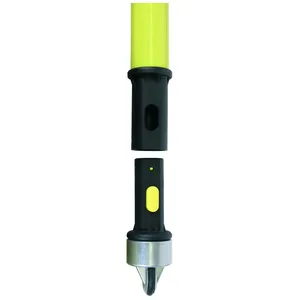

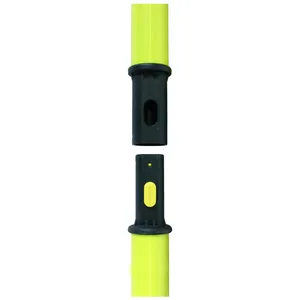

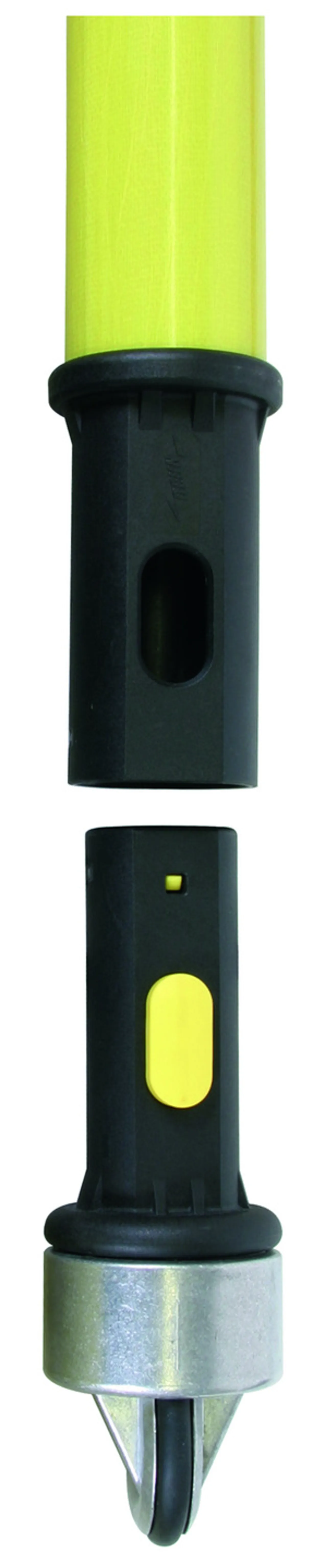

Insulating stick with anti-rotation plug-in coupling

lorem ipsum — Insulating stick with anti-rotation plug-in coupling

lorem ipsum

Napięcie znamionowe 15 kV / 16,7 Hz

Detachable (four elements).

1 Produkt

Nr kat. 766616 PHE 15 16.7 4T TA

GTIN / EAN 4013364126091, Nr taryfy celnej (EU): 90303370, Waga brutto: 5.09 kg, Jednostka opakowaniowa: 1.00 szt.

Rysunki

Open PDF

Informacje dodatkowe

Certyfikaty

Dane techniczne

Nominal voltage (U_N )	15 kV
Frequency	16.7 Hz
Total length (l_G )	4890 mm
Insertion depth (I_O )	1675 mm
DB drawing No.	3 Ebgw 02.51
DB material No.	237 129

Nominal voltage (U_N )	15 kV
Frequency	16.7 Hz
Total length (l_G )	4890 mm
Insulating clearance (l_I )	685 mm
Insertion depth (I_O )	1675 mm
Length of the prod	1900 mm
Length of the operating stick (with hand guard)	640 mm
Length of the operating stick (end fitting)	2530 mm
DB drawing No.	3 Ebgw 02.51
DB material No.	237 129
Standard	DIN VDE 0681-6
Design	Complete
For use at	_
For	Outdoor installations
Application	Overhead contact lines of electric railways
Version	Single-pole
Indication	Visual
Self-testing element	Yes
Battery	Lithium
Material (test electrode)	St/gal Zn
Material (test prod)	Glass-fibre reinforced polyester tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Produkt 766616 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 766616.

Idź do sklepu internetowego

Napięcie znamionowe 15 kV / 16,7 Hz (do transportu w pojazdach silnikowych)

Detachable (six elements).

1 Produkt

Nr kat. 766617 PHE 15 16.7 6T TA

GTIN / EAN 4013364101760, Nr taryfy celnej (EU): 90303370, Waga brutto: 4.95 kg, Jednostka opakowaniowa: 1.00 szt.

Rysunki

Open PDF

Informacje dodatkowe

Certyfikaty

Dane techniczne

Nominal voltage (U_N )	15 kV
Frequency	16.7 Hz
Total length (l_G )	4900 mm
Insertion depth (I_O )	1675 mm
DB drawing No.	3 Ebgw 02.53
DB material No.	652 975

Nominal voltage (U_N )	15 kV
Frequency	16.7 Hz
Total length (l_G )	4900 mm
Insulating clearance (l_I )	685 mm
Insertion depth (I_O )	1675 mm
Length of the prod	975 + 965 mm
Length of the operating stick (with hand guard)	1080 mm
Length of the operating stick (intermediate section)	1035
Length of the operating stick (end fitting)	1035 mm
DB drawing No.	3 Ebgw 02.53
DB material No.	652 975
Standard	DIN VDE 0681-6
Design	Complete
For use at	_
For	Outdoor installations
Application	Overhead contact lines of electric railways
Version	Single-pole
Indication	Visual
Self-testing element	Yes
Battery	Lithium
Material (test electrode)	St/gal Zn
Material (test prod)	Glass-fibre reinforced polyester tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
