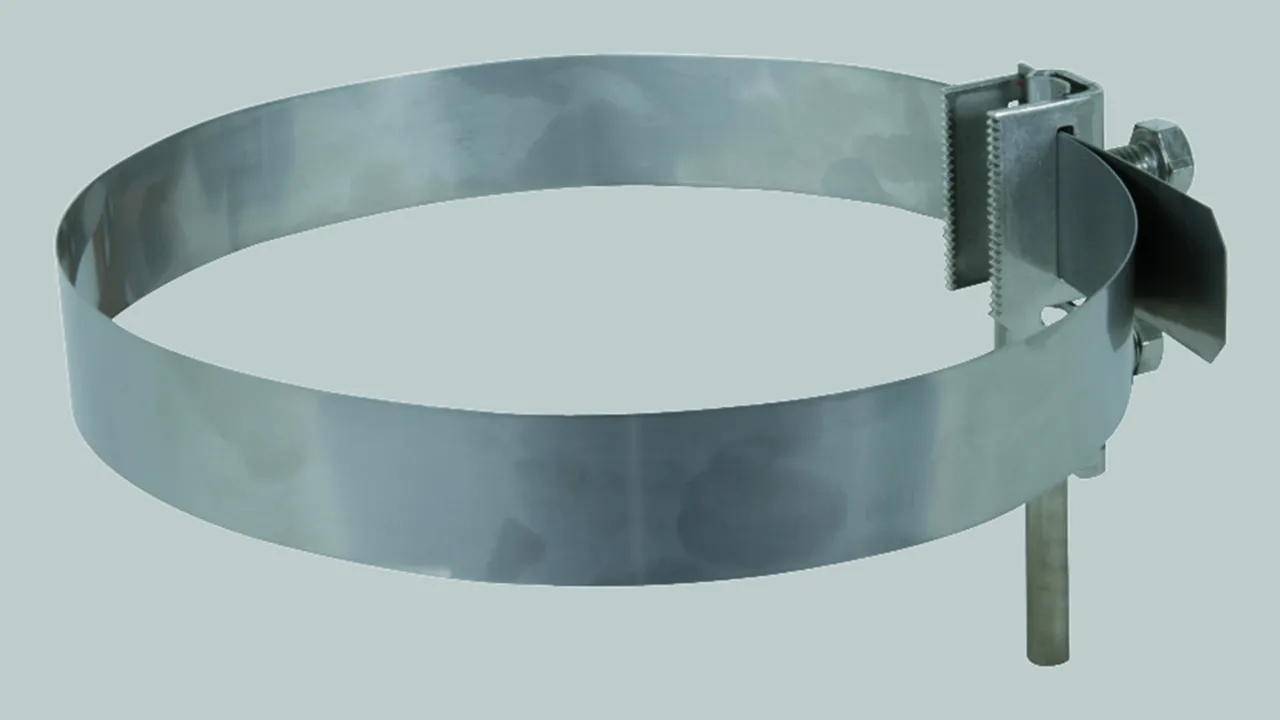

Obejma taśmowa z zębatką

Pipe clamp for the integration of pipes with surface protection into the lightning equipotential bonding according to IEC/EN 62305-3.
For use e.g. at varnished or powder-coated surfaces up to a layer thickness of 0.2 mm.

The special tines penetrate the surface protection and provide the necessary contact, thus it is not necessary to remove the surface protection.

Kompletna odgromowa obejma taśmowa z ząbkami

Connection for: 1 conductor Rd Ø10 mm or 1-2 conductors Rd Ø6-8 mm or 4-50 mm2 (solid / stranded).

1 Produkt

Nr kat. 540200 BRS 27.168 Z AK1X10 2X6.8 V2A

GTIN / EAN 4013364113039, Nr taryfy celnej: 85359000, Waga brutto: 135.60 g, Jednostka opakowaniowa: 10.00 szt.

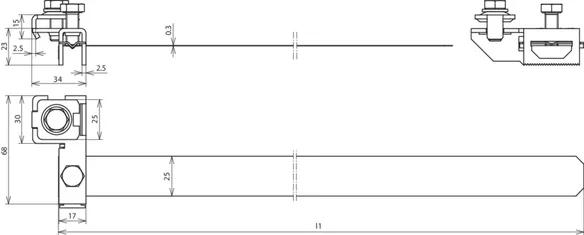

Rysunki

Informacje dodatkowe

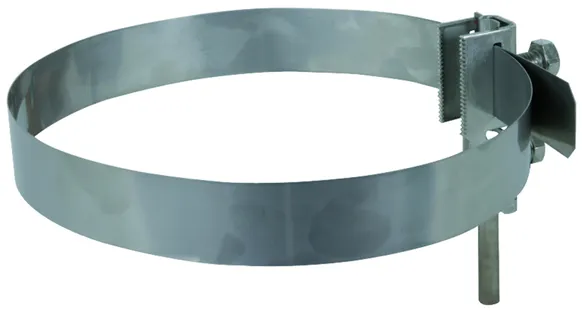

Lightning protection pipe clamp with tines, StSt (27-168 mm)
BS pipe clamp with tines
For connecting pipes with surface protection into the
lightning equipotential bonding and equipotential
bonding according to VDE 0100 Part 410/540.
Applicable for surfaces (e.g. lacquers, powder
coatings) up to a layer thickness of 0.2 mm.
Materiał: StSt
Zakres zacisku (rura Ø): 27-168 mm (3/4-6'')
Przyłączenie (drut): 1-2 x 6-8 mm / 1 x 10 mm
Przyłączenie (drut / wielodrutowo): 4-50 mm2
Spełnia wymagania normy: EN 62561-1

Producent: DEHN
Typ: BRS 27.168 Z AK1X10 2X6.8 V2A
Nr kat.: 540200
lub podobny.

Certyfikaty



Dane techniczne

Materiał StSt
Zakres zacisku (rura Ø) 27-168 mm (3/4-6'')
Wymiary taśmy (l1 x sz x gł) 570 x 25 x 0.3 mm
Spełnia wymagania normy EN 62561-1

Produkt 540200 został dodany do notatnika.

Do koszyka dodano produkt 540200.

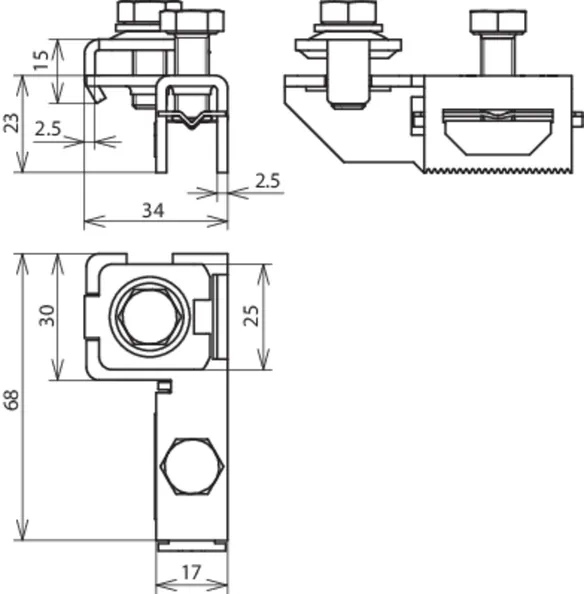

Uchwyt zaciskowy osobno

For combination with endless tensioning strap (Part No. 540 901).
Connection for: 1 conductor Rd Ø10 mm or 1-2 conductors Rd Ø6-8 mm or 4-50 mm2 (solid / stranded).

1 Produkt

Nr kat. 540210 SPK Z 25 BRS AK1X10 2X6.8 V2A

GTIN / EAN 4013364221284, Nr taryfy celnej: 85359000, Waga brutto: 100.00 g, Jednostka opakowaniowa: 50.00 szt.


Rysunki

Informacje dodatkowe

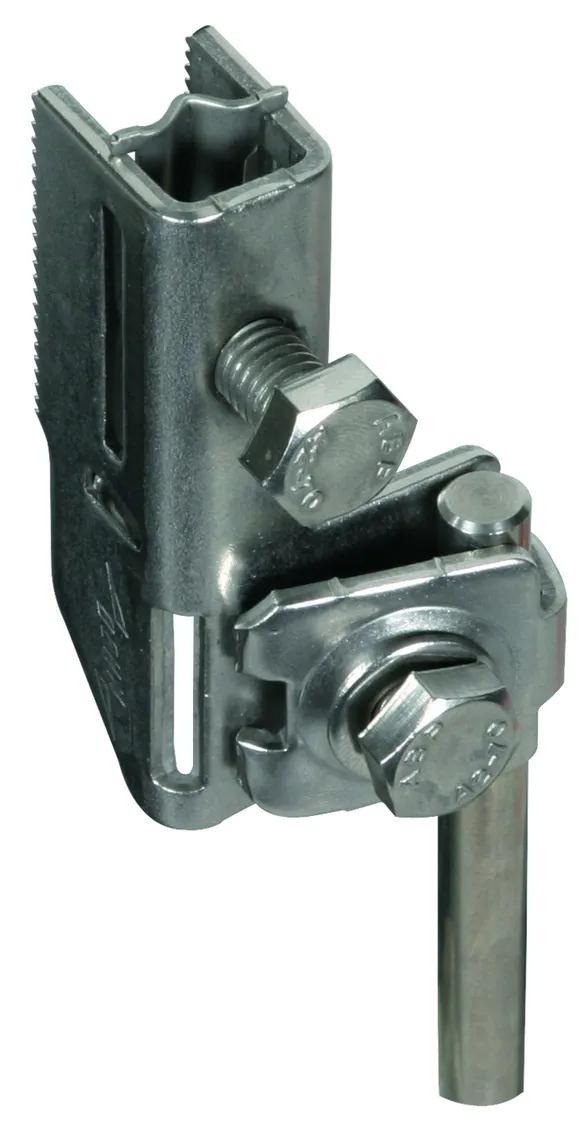

Lightning protection pipe clamp, separate grip head, StSt
BS pipe clamp with tines
For connecting pipes with surface protection into the
lightning equipotential bonding and equipotential
bonding according to VDE 0100 Part 410/540.
Applicable for surfaces (e.g. lacquers, powder
coatings) up to a layer thickness of 0.2 mm.
Separate grip head, for combination with continuous tensioning strap (Part No. 540 901)
Materiał: StSt
Przyłączenie (drut): 1-2 x 6-8 mm / 1 x 10 mm
Przyłączenie (drut / wielodrutowo): 4-50 mm2
Spełnia wymagania normy: EN 62561-1

Producent: DEHN
Typ: SPK Z 25 BRS AK1X10 2X6.8 V2A
Nr kat.: 540210
lub podobny.

Certyfikaty



Dane techniczne

Materiał StSt
Spełnia wymagania normy EN 62561-1

Produkt 540210 został dodany do notatnika.

Do koszyka dodano produkt 540210.
