Drążki izolacyjne IS

Easy and safe working

Cost-effective since the application of different supporting heads allows universal use
Easy handling

Szczegóły

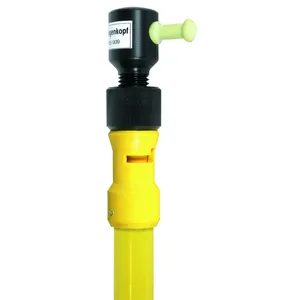

IS SQ insulating stick fitted with SSK SQ switching stick head. Black knurled nut for additional locking on the insulating stick.

lorem ipsum — IS SQ insulating stick fitted with SSK SQ switching stick head. Black knurled nut for additional locking on the insulating stick.

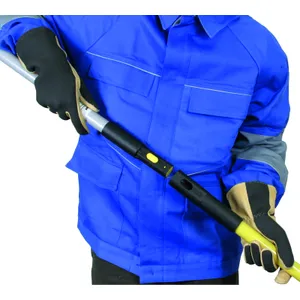

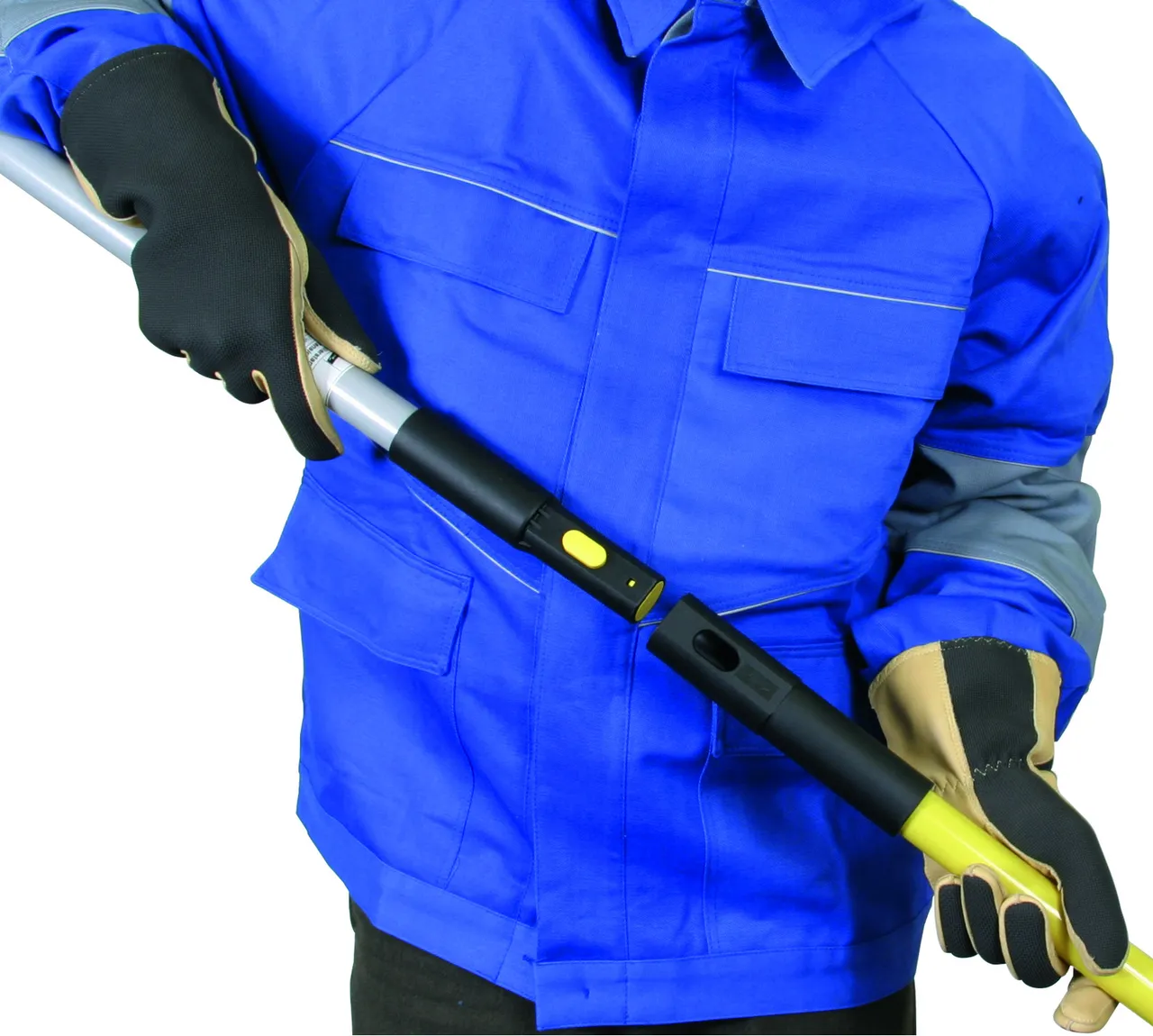

The handle of IS STK insulating sticks can be easily extended via the plug-in coupling.

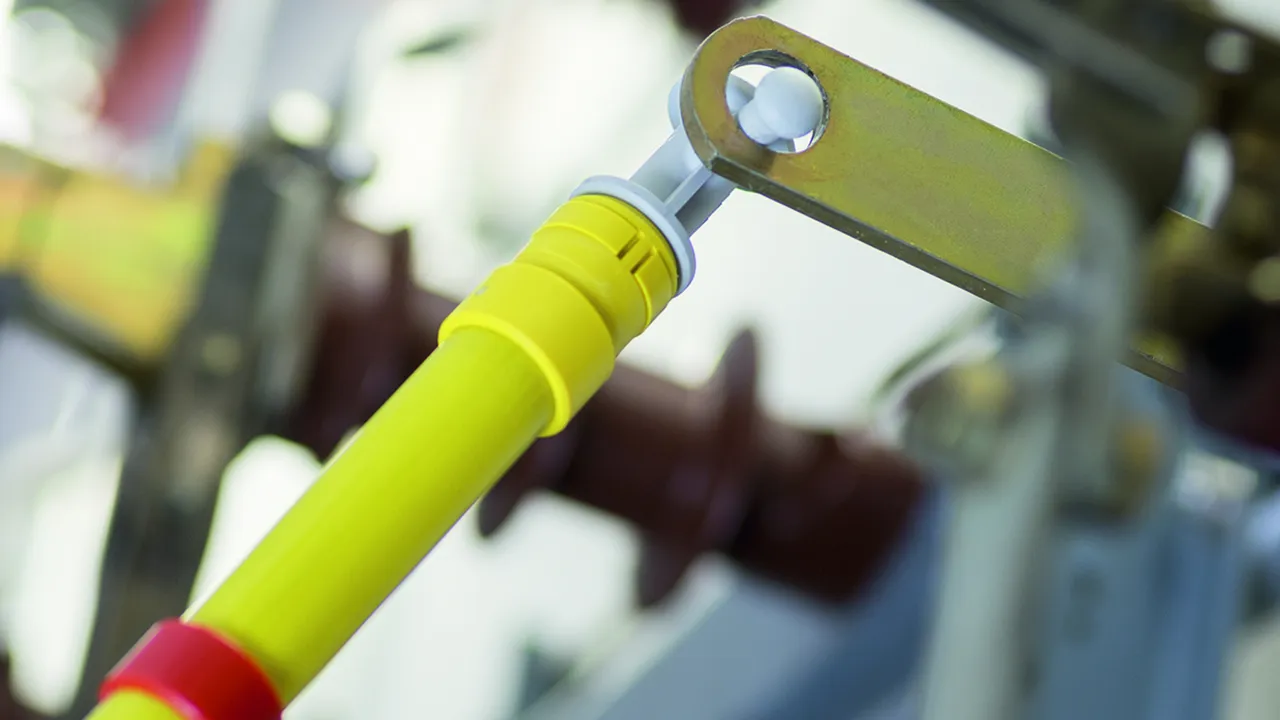

IS SK insulating stick fitted with SSK M12 switching stick head.

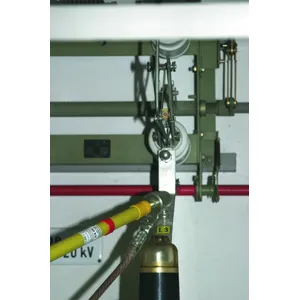

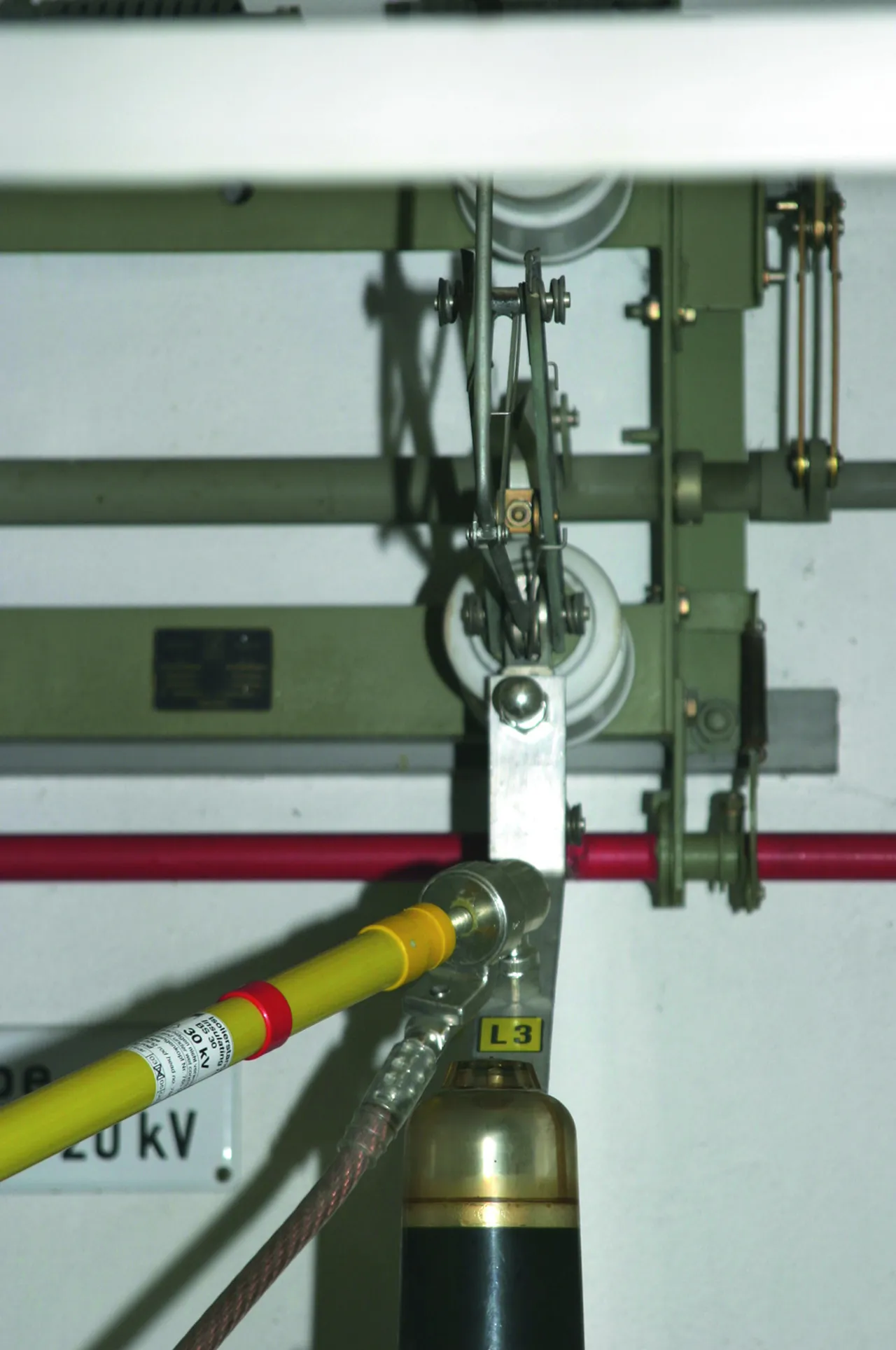

IS SK insulating stick used for clamps with hexagon shaft of earthing and short-circuiting devices.

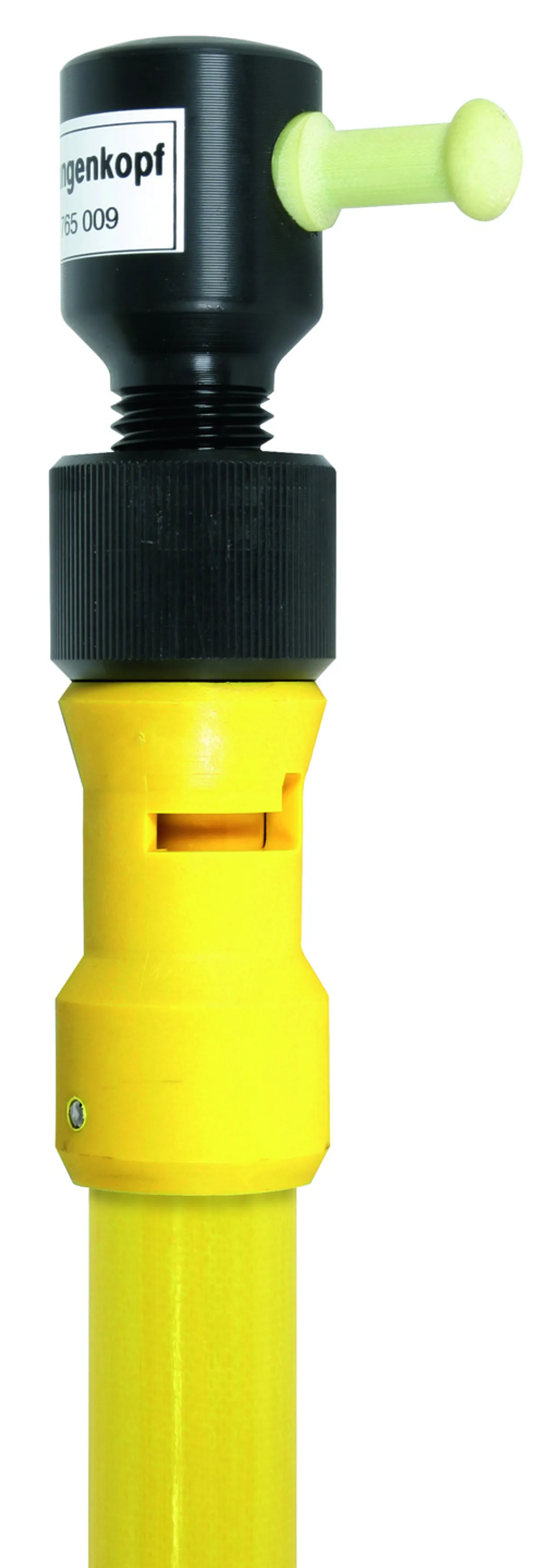

Drążek izolacyjny, złącze sześciokątne

Operating head with spring locking mechanism and M12 threaded bushing

Can be used as switching and operating stick by attaching a SSK M12 switching stick head
Can be used as earthing stick
Handle closed with end cap

2 Produkty

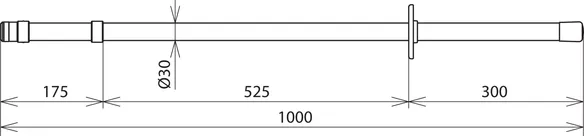

Nr kat. 766001 IS 36 SK 1000

GTIN / EAN 4013364017825, Nr taryfy celnej (EU): 82055980, Waga brutto: 916.00 g, Jednostka opakowaniowa: 1.00 szt.

Rysunki

Open PDF

Informacje dodatkowe

Dane techniczne

Nominal voltage (U_N )	1 ... 36 kV
Total length (l_G )	1000 mm
Insertion depth (I_O )	175 mm
For use at	^

Nominal voltage (U_N )	1 ... 36 kV
Total length (l_G )	1000 mm
Insulating clearance (l_I )	525 mm
Handle length (I_H )	300 mm
Insertion depth (I_O )	175 mm
Standard (insulating stick)	DIN VDE V 0681-1
For	Indoor and outdoor installations
Material	Glass-fibre reinforced polyester tube
Diameter	30 mm
For use at	^
Supporting head for	Hexagon shaft
Anti-rotation plug-in coupling including end fitting	No
Type of device	Insulating stick

Produkt 766001 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 766001.

Idź do sklepu internetowego

Nr kat. 766002 IS 36 SK 1500

GTIN / EAN 4013364017832, Nr taryfy celnej (EU): 82055980, Waga brutto: 1610.00 g, Jednostka opakowaniowa: 1.00 szt.

Rysunki

Open PDF

Informacje dodatkowe

Dane techniczne

Nominal voltage (U_N )	1 ... 36 kV
Total length (l_G )	1500 mm
Insertion depth (I_O )	475 mm
For use at	^

Nominal voltage (U_N )	1 ... 36 kV
Total length (l_G )	1500 mm
Insulating clearance (l_I )	525 mm
Handle length (I_H )	500 mm
Insertion depth (I_O )	475 mm
Standard (insulating stick)	DIN VDE V 0681-1
For	Indoor and outdoor installations
Material	Glass-fibre reinforced polyester tube
Diameter	30 mm
For use at	^
Supporting head for	Hexagon shaft
Anti-rotation plug-in coupling including end fitting	No
Type of device	Insulating stick

Produkt 766002 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 766002.

Idź do sklepu internetowego

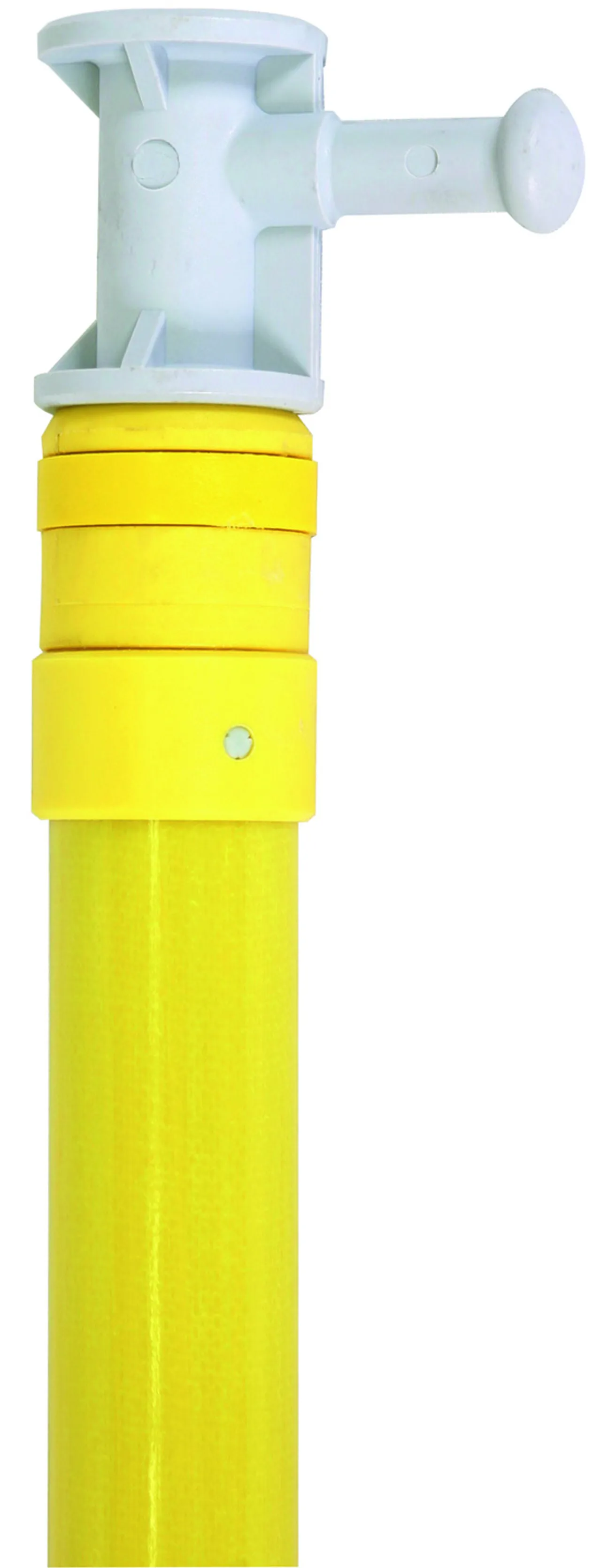

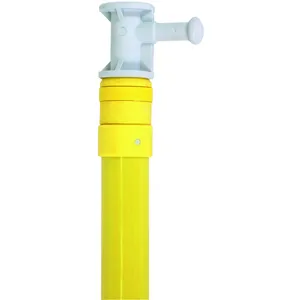

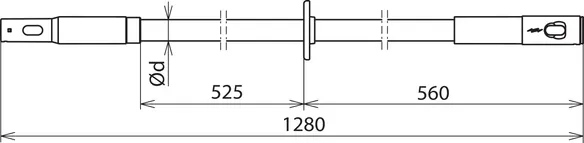

Drążek izolacyjny, z trzpieniem z poprzecznym kołkiem

Operating head with spring-loaded bayonet coupling

Can be used as switching and operating stick by attaching a SSK SQ switching stick head
Can be used as operating stick for inserting insulating protective shutters
Can be used as earthing stick
Handle closed with end cap

3 Produkty

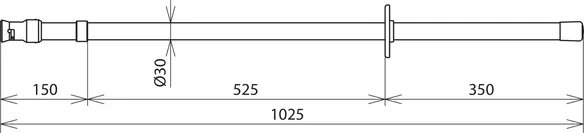

Nr kat. 766311 IS 36 SQ 1000

GTIN / EAN 4013364017856, Nr taryfy celnej (EU): 82055980, Waga brutto: 919.00 g, Jednostka opakowaniowa: 1.00 szt.

Rysunki

Open PDF

Informacje dodatkowe

Dane techniczne

Nominal voltage (U_N )	1 ... 36 kV
Total length (l_G )	1025 mm
Insertion depth (I_O )	150 mm
For use at	^
^*) Max. shutter weight when inserting insulating protective shutters

Nominal voltage (U_N )	1 ... 36 kV
Max. load on the operating head ^*)	17 kg
Total length (l_G )	1025 mm
Insulating clearance (l_I )	525 mm
Handle length (I_H )	350 mm
Insertion depth (I_O )	150 mm
Standard (insulating stick)	DIN VDE V 0681-1
For	Indoor and outdoor installations
Material	Glass-fibre reinforced polyester tube
Diameter	30 mm
For use at	^
Supporting head for	T pin shaft
Anti-rotation plug-in coupling including end fitting	No
Type of device	Insulating stick
^*) Max. shutter weight when inserting insulating protective shutters

Produkt 766311 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 766311.

Idź do sklepu internetowego

Nr kat. 766315 IS 36 SQ 1500

GTIN / EAN 4013364008281, Nr taryfy celnej (EU): 82055980, Waga brutto: 1620.00 g, Jednostka opakowaniowa: 1.00 szt.

Rysunki

Open PDF

Informacje dodatkowe

Dane techniczne

Nominal voltage (U_N )	1 ... 36 kV
Total length (l_G )	1525 mm
Insertion depth (I_O )	500 mm
For use at	^
^*) Max. shutter weight when inserting insulating protective shutters

Nominal voltage (U_N )	1 ... 36 kV
Max. load on the operating head ^*)	17 kg
Total length (l_G )	1525 mm
Insulating clearance (l_I )	525 mm
Handle length (I_H )	500 mm
Insertion depth (I_O )	500 mm
Standard (insulating stick)	DIN VDE V 0681-1
For	Indoor and outdoor installations
Material	Glass-fibre reinforced polyester tube
Diameter	30 mm
For use at	^
Supporting head for	T pin shaft
Anti-rotation plug-in coupling including end fitting	No
Type of device	Insulating stick
^*) Max. shutter weight when inserting insulating protective shutters

Produkt 766315 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 766315.

Idź do sklepu internetowego

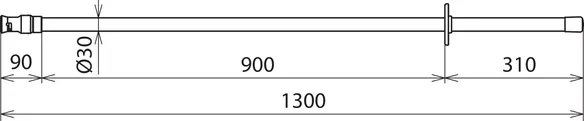

Nr kat. 766312 IS 72.5 SQ SN7743

GTIN / EAN 4013364311985, Nr taryfy celnej (EU): 82055980, Waga brutto: 1040.00 g, Jednostka opakowaniowa: 1.00 szt.

Rysunki

Open PDF

Informacje dodatkowe

Dane techniczne

Nominal voltage (U_N )	1 ... 72.5 kV
Total length (l_G )	1300 mm
Insertion depth (I_O )	90 mm
For use at	^
^*) Max. shutter weight when inserting insulating protective shutters

Nominal voltage (U_N )	1 ... 72.5 kV
Total length (l_G )	1300 mm
Insulating clearance (l_I )	900 mm
Handle length (I_H )	310 mm
Insertion depth (I_O )	90 mm
Standard (insulating stick)	E DIN VDE V 0681-1
For	Indoor and outdoor installations
Material	Glass-fibre reinforced polyester tube
Diameter	30 mm
For use at	^
Supporting head for	T pin shaft
Anti-rotation plug-in coupling including end fitting	No
Type of device	Insulating stick
^*) Max. shutter weight when inserting insulating protective shutters

Produkt 766312 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 766312.

Idź do sklepu internetowego

Drążek izolacyjny, złącze sześciokątne wtykowe

Operating head with spring locking mechanism and M12 threaded bushing

Can be used as switching and operating stick by attaching a SSK M12 switching stick head
Can be used as earthing stick
Handle closed with plastic plug-in coupling for extending the handle

3 Produkty

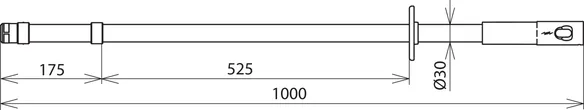

Nr kat. 766100 IS 36 SK STK 1000

GTIN / EAN 4013364125117, Nr taryfy celnej (EU): 82055980, Waga brutto: 900.00 g, Jednostka opakowaniowa: 1.00 szt.

Rysunki

Open PDF

Informacje dodatkowe

Dane techniczne

Nominal voltage (U_N )	1 ... 36 kV
Total length (l_G )	1000 mm
Insertion depth (I_O )	175 mm
For use at	^

Nominal voltage (U_N )	1 ... 36 kV
Total length (l_G )	1000 mm
Insulating clearance (l_I )	525 mm
Handle length (I_H )	300 mm
Insertion depth (I_O )	175 mm
Standard (insulating stick)	DIN VDE V 0681-1
For	Indoor and outdoor installations
Material	Glass-fibre reinforced polyester tube
Diameter	30 mm
For use at	^
Supporting head for	Hexagon shaft
Anti-rotation plug-in coupling including end fitting	Yes
Type of device	Insulating stick

Produkt 766100 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 766100.

Idź do sklepu internetowego

Nr kat. 766122 IS 123 SK STK 2000

GTIN / EAN 4013364134249, Nr taryfy celnej (EU): 82055980, Waga brutto: 1800.00 g, Jednostka opakowaniowa: 1.00 szt.

Rysunki

Open PDF

Informacje dodatkowe

Dane techniczne

Nominal voltage (U_N )	1 ... 123 kV
Total length (l_G )	2000 mm
Insertion depth (I_O )	200 mm
For use at	^

Nominal voltage (U_N )	1 ... 123 kV
Total length (l_G )	2000 mm
Insulating clearance (l_I )	1300 mm
Handle length (I_H )	500 mm
Insertion depth (I_O )	200 mm
Standard (insulating stick)	DIN VDE V 0681-1
For	Indoor and outdoor installations
Material	Glass-fibre reinforced polyester tube
Diameter	30 mm
For use at	^
Supporting head for	Hexagon shaft
Anti-rotation plug-in coupling including end fitting	Yes
Type of device	Insulating stick

Produkt 766122 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 766122.

Idź do sklepu internetowego

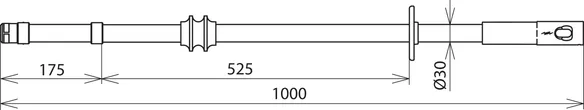

Nr kat. 766111 ISN 36 SK STK 1000

GTIN / EAN 4013364137295, Nr taryfy celnej (EU): 82055980, Waga brutto: 1060.00 g, Jednostka opakowaniowa: 1.00 szt.

Rysunki

Open PDF

Informacje dodatkowe

Dane techniczne

Nominal voltage (U_N )	1 ... 36 kV
Total length (l_G )	1000 mm
Insertion depth (I_O )	175 mm
For use at	_

Nominal voltage (U_N )	1 ... 36 kV
Total length (l_G )	1000 mm
Insulating clearance (l_I )	525 mm
Handle length (I_H )	300 mm
Insertion depth (I_O )	175 mm
Standard (insulating stick)	DIN VDE V 0681-1
For	Indoor and outdoor installations
Material	Glass-fibre reinforced polyester tube
Diameter	30 mm
For use at	_
Supporting head for	Hexagon shaft
Anti-rotation plug-in coupling including end fitting	Yes
Type of device	Insulating stick

Produkt 766111 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 766111.

Idź do sklepu internetowego

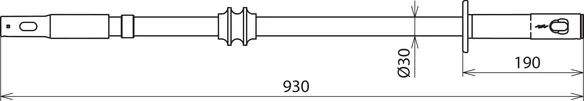

Drążek izolacyjny, z trzpieniem z poprzecznym kołkiem, złącze wtykowe

Operating head with spring-loaded bayonet coupling

Can be used as switching and operating stick by attaching a SSK SQ switching stick head
Can be used as operating stick for inserting insulating protective shutters
Can be used as earthing stick
Handle closed with plastic plug-in coupling for extending the handle

3 Produkty

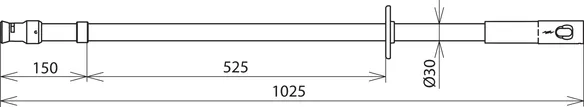

Nr kat. 766301 IS 36 SQ STK 1000

GTIN / EAN 4013364125124, Nr taryfy celnej (EU): 82055980, Waga brutto: 900.00 g, Jednostka opakowaniowa: 1.00 szt.

Rysunki

Open PDF

Informacje dodatkowe

Dane techniczne

Nominal voltage (U_N )	1 ... 36 kV
Total length (l_G )	1025 mm
Insertion depth (I_O )	150 mm
For use at	^
^*) Max. shutter weight when inserting insulating protective shutters

Nominal voltage (U_N )	1 ... 36 kV
Max. load on the operating head ^*)	17 kg
Total length (l_G )	1025 mm
Insulating clearance (l_I )	525 mm
Handle length (I_H )	350 mm
Insertion depth (I_O )	150 mm
Standard (insulating stick)	DIN VDE V 0681-1
For	Indoor and outdoor installations
Material	Glass-fibre reinforced polyester tube
Diameter	30 mm
For use at	^
Supporting head for	T pin shaft
Anti-rotation plug-in coupling including end fitting	Yes
Type of device	Insulating stick
^*) Max. shutter weight when inserting insulating protective shutters

Produkt 766301 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 766301.

Idź do sklepu internetowego

Nr kat. 766322 IS 123 SQ STK 2000

GTIN / EAN 4013364134256, Nr taryfy celnej (EU): 82055980, Waga brutto: 1800.00 g, Jednostka opakowaniowa: 1.00 szt.

Rysunki

Open PDF

Informacje dodatkowe

Dane techniczne

Nominal voltage (U_N )	1 ... 123 kV
Total length (l_G )	2000 mm
Insertion depth (I_O )	200 mm
For use at	^
^*) Max. shutter weight when inserting insulating protective shutters

Nominal voltage (U_N )	1 ... 123 kV
Max. load on the operating head ^*)	8 kg
Total length (l_G )	2000 mm
Insulating clearance (l_I )	1300 mm
Handle length (I_H )	500 mm
Insertion depth (I_O )	200 mm
Standard (insulating stick)	DIN VDE V 0681-1
For	Indoor and outdoor installations
Material	Glass-fibre reinforced polyester tube
Diameter	30 mm
For use at	^
Supporting head for	T pin shaft
Anti-rotation plug-in coupling including end fitting	Yes
Type of device	Insulating stick
^*) Max. shutter weight when inserting insulating protective shutters

Produkt 766322 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 766322.

Idź do sklepu internetowego

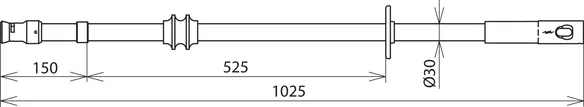

Nr kat. 766310 ISN 36 SQ STK 1000

GTIN / EAN 4013364137318, Nr taryfy celnej (EU): 82055980, Waga brutto: 1060.00 g, Jednostka opakowaniowa: 1.00 szt.

Rysunki

Open PDF

Informacje dodatkowe

Dane techniczne

Nominal voltage (U_N )	1 ... 36 kV
Total length (l_G )	1025 mm
Insertion depth (I_O )	150 mm
For use at	_
^*) Max. shutter weight when inserting insulating protective shutters

Nominal voltage (U_N )	1 ... 36 kV
Max. load on the operating head ^*)	17 kg
Total length (l_G )	1025 mm
Insulating clearance (l_I )	525 mm
Handle length (I_H )	350 mm
Insertion depth (I_O )	150 mm
Standard (insulating stick)	DIN VDE V 0681-1
For	Indoor and outdoor installations
Material	Glass-fibre reinforced polyester tube
Diameter	30 mm
For use at	_
Supporting head for	T pin shaft
Anti-rotation plug-in coupling including end fitting	Yes
Type of device	Insulating stick
^*) Max. shutter weight when inserting insulating protective shutters

Produkt 766310 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 766310.

Idź do sklepu internetowego

Drążek izolacyjny, składany, z trzpieniem z poprzecznym kołkiem, złącze wtykowe

Operating head with bayonet coupling with spring locking mechanism

Can be used as switching stick and operating stick by attaching the switching stick head SSK SQ
Can be used as operating stick for inserting insulating protective shutters
Can be used as earthing stick
Can be used as handle termination with end cap

1 Produkt

Nr kat. 766332 ISN 123 SQ STK 2500

GTIN / EAN 4013364137325, Nr taryfy celnej (EU): 82055980, Waga brutto: 3.08 kg, Jednostka opakowaniowa: 1.00 szt.

Rysunki

Open PDF

Informacje dodatkowe

Dane techniczne

Nominal voltage (U_N )	110 ... 123 kV
Total length (l_G )	2495 mm
Insertion depth (I_O )	290 mm
For use at	_
^*) Max. weight of insulating shutters, for example.

Nominal voltage (U_N )	110 ... 123 kV
Max. load on the operating head ^*)	5 kg
Total length (l_G )	2495 mm
Insulating clearance (l_I )	1485 mm
Handle length (I_H )	720 mm
Insertion depth (I_O )	290 mm
For	Indoor and outdoor installations
Material	Glass-fibre reinforced polyester tube
Diameter	30 / 43 mm
For use at	_
Supporting head for	T pin shaft
Anti-rotation plug-in coupling including end fitting	Yes
Type of device	Insulating stick
^*) Max. weight of insulating shutters, for example.
