Wskaźnik napięcia PHE

Easy and safe testing
  • Reliable indication
  • Easy to use

Szczegóły

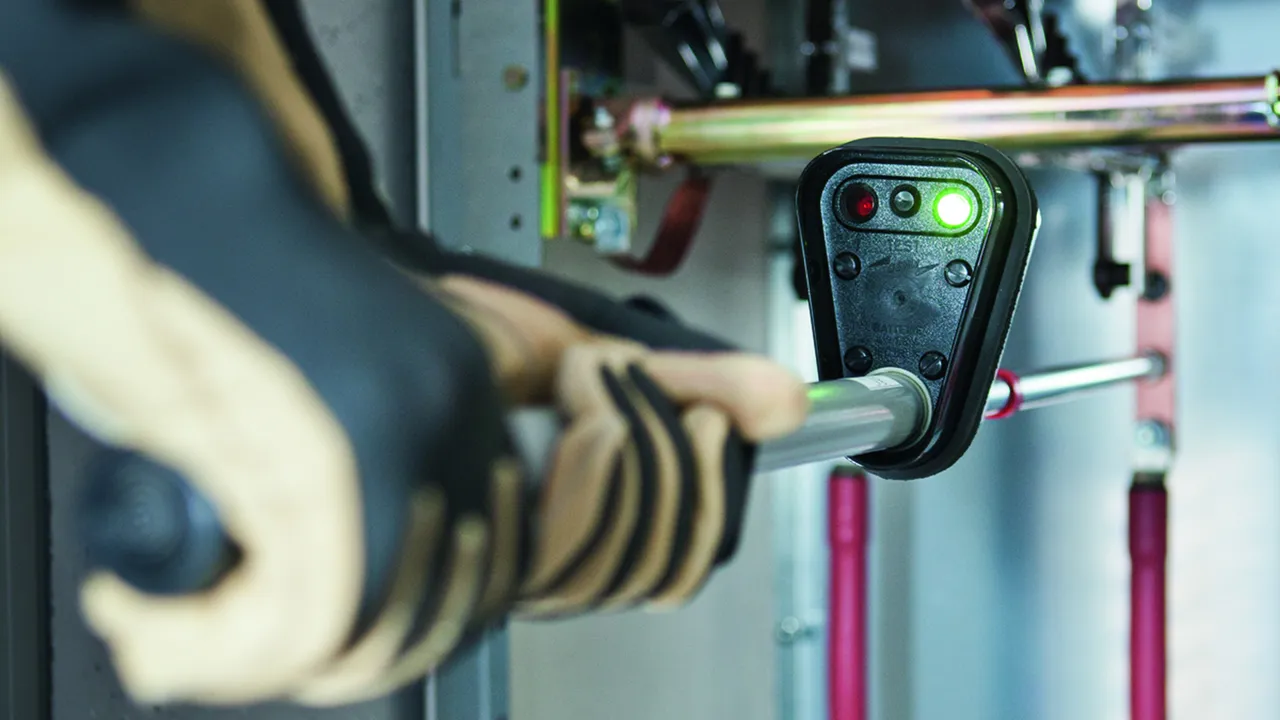

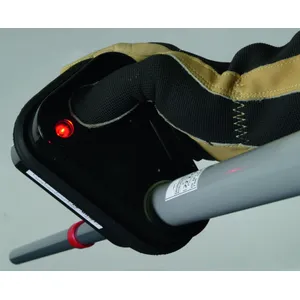

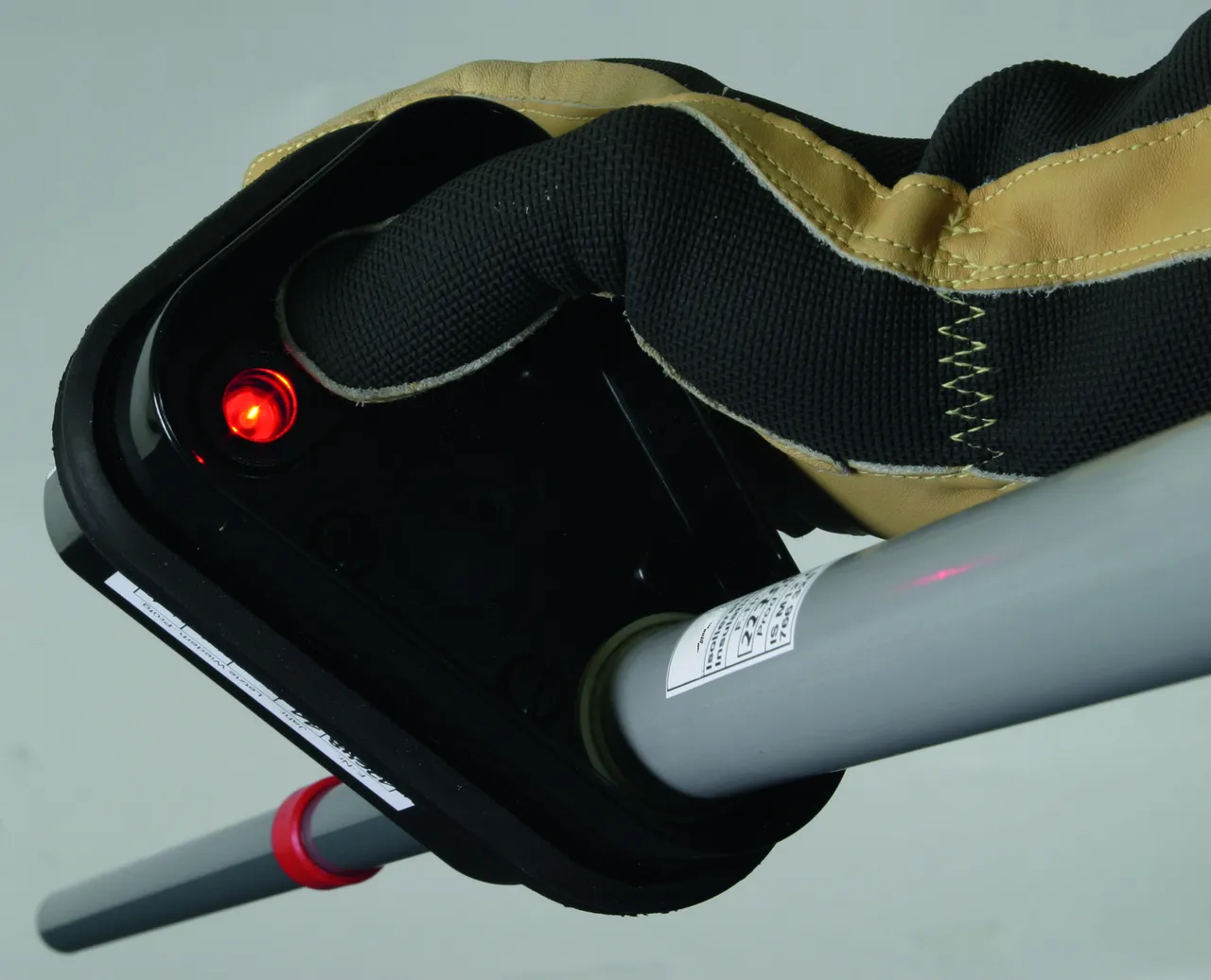

Before testing the installation for safe isolation from supply voltage, the voltage detector must be tested for correct operation. When pressing the “TEST” button, the red indicator light flashes.
lorem ipsum

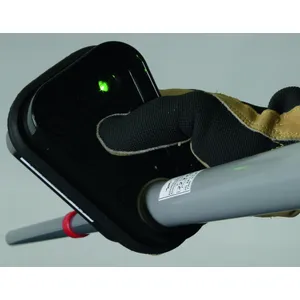

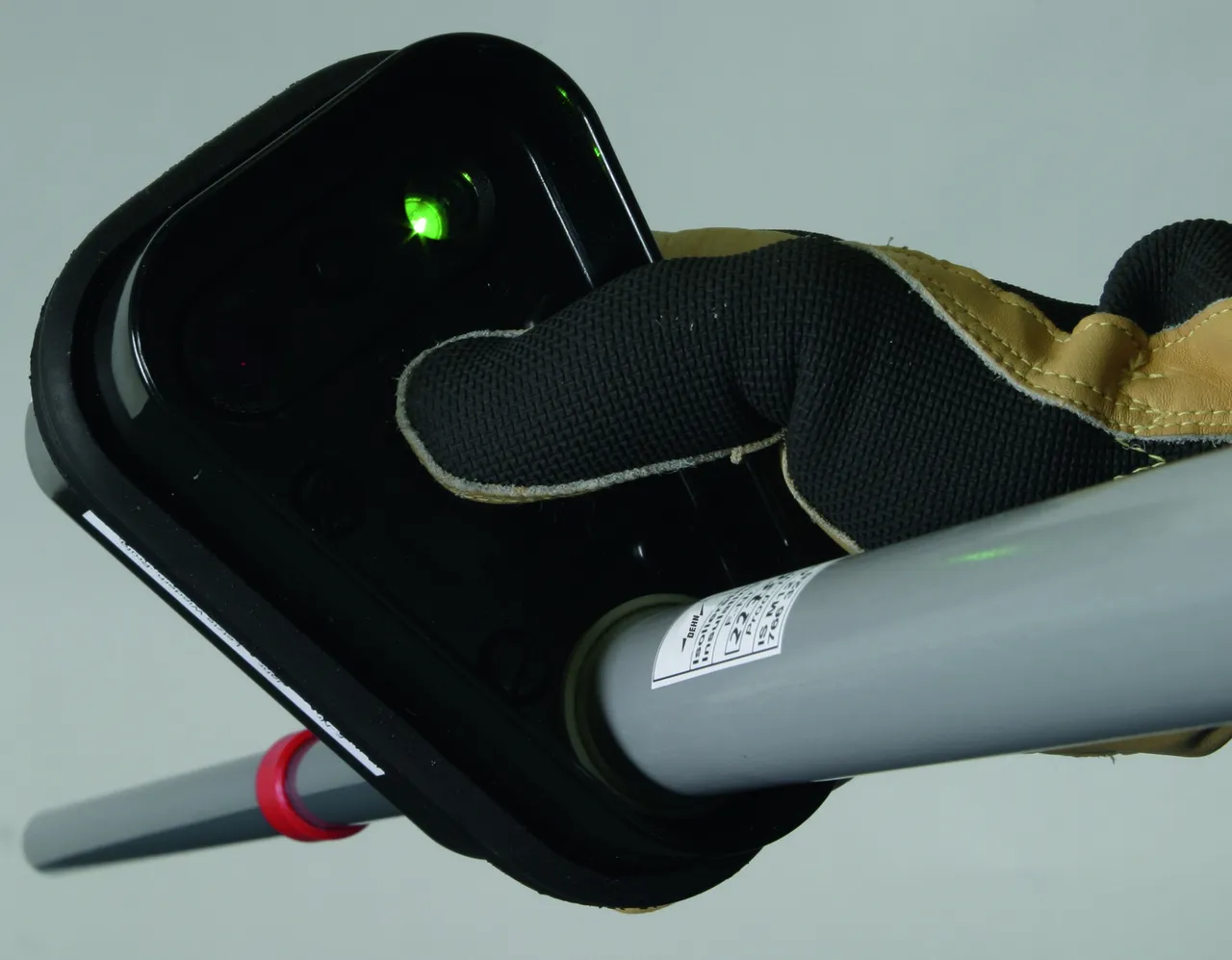

As soon as the button is released, the green indicator light lights up. The test for correct operation was successful and the voltage detector is operational.
lorem ipsum

Zakres napięcia znamionowego do 20 kV / 50 Hz i 16,7 Hz, regulowany zakres

For three-phase systems and single-ended monophase switchgear installations.

Special features of the switchable voltage detector:
The selector switch can be moved into three positions for the relevant voltage and frequency ranges:
3 ... 10 kV / 50 Hz – three-phase systems
6 ... 20 kV / 50 Hz – three-phase systems
6 ... 20 kV / 16.7 Hz – single-ended monophase systems
For safety reasons, the detector can only be switched on if the selector switch is switched to the most sensitive range of 3 kV to 10 kV / 50 Hz. The switch snaps into the relevant position and provides protection against accidental switching. A magnetically operated, wear-resistant reed switch changes the switching position.

1 Produkt

Nr kat. 767416 PHE 3 20 S FU 1P

GTIN / EAN 4013364084247, Nr taryfy celnej (EU): 90303370, Waga brutto: 3.40 kg, Jednostka opakowaniowa: 1.00 szt.

Rysunki

Informacje dodatkowe

Certyfikaty



Dane techniczne

Nominal voltage (UN ) 3 ... 20 kV
Frequency 16.7 and 50 Hz
Total length (lG ) 1560 mm
Insertion depth (IO ) 770 mm
DB drawing No. 3 Ebgw 02.54
DB material No. 743 361

Produkt 767416 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 767416.

Idź do sklepu internetowego

Zakres napięcia znamionowego do 20 kV / 16,7 Hz

For single-ended monophase switchgear installations and point heating systems.

1 Produkt

Nr kat. 767415 PHE 6 20 S 16.7 1P

GTIN / EAN 4013364081116, Nr taryfy celnej (EU): 90303370, Waga brutto: 2.30 kg, Jednostka opakowaniowa: 1.00 szt.

Rysunki

Informacje dodatkowe

Certyfikaty



Dane techniczne

Nominal voltage (UN ) 6 ... 20 kV
Frequency 16.7 Hz
Total length (lG ) 1560 mm
Insertion depth (IO ) 770 mm
DB drawing No. 3 Ebgw 02.52
DB material No. 738 302

Produkt 767415 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 767415.

Idź do sklepu internetowego

Napięcie znamionowe 15 kV / 16,7 Hz

For traction power lines.
Hook-shaped electrode and end fitting with plug-in coupling and non-slip eye included.

Use for traction power lines
Voltage detectors for traction power lines have a shorter extension than voltage detectors for overhead contact lines. To ensure reliable indication, the PHE 15 16.7 BEL STK voltage detector may only be used for traction power lines and not for other components of overhead contact lines. Moreover, it must not be used from ladder trolleys for overhead contact lines.
Traction power lines are supply lines, line feeders, bypass lines, connecting lines, feeder lines, 15 kV cables, cable sealing ends, switch lines and transverse switch lines.

1 Produkt

Nr kat. 767413 PHE 15 16.7 BEL STK

GTIN / EAN 4013364128750, Nr taryfy celnej (EU): 90303370, Waga brutto: 2.55 kg, Jednostka opakowaniowa: 1.00 szt.

Rysunki

Informacje dodatkowe

Certyfikaty



Dane techniczne

Nominal voltage (UN ) 15 kV
Frequency 16.7 Hz
Total length (lG ) 1645 mm
Insertion depth (IO ) 765 mm
DB drawing No. 3 Ebgw 02.55
DB material No. 964 851

Produkt 767413 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 767413.

Idź do sklepu internetowego
