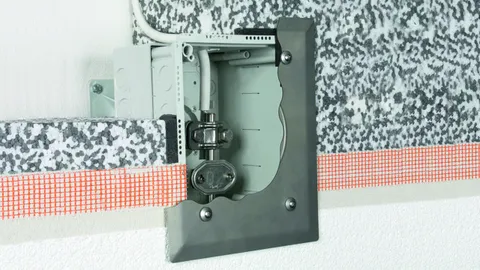

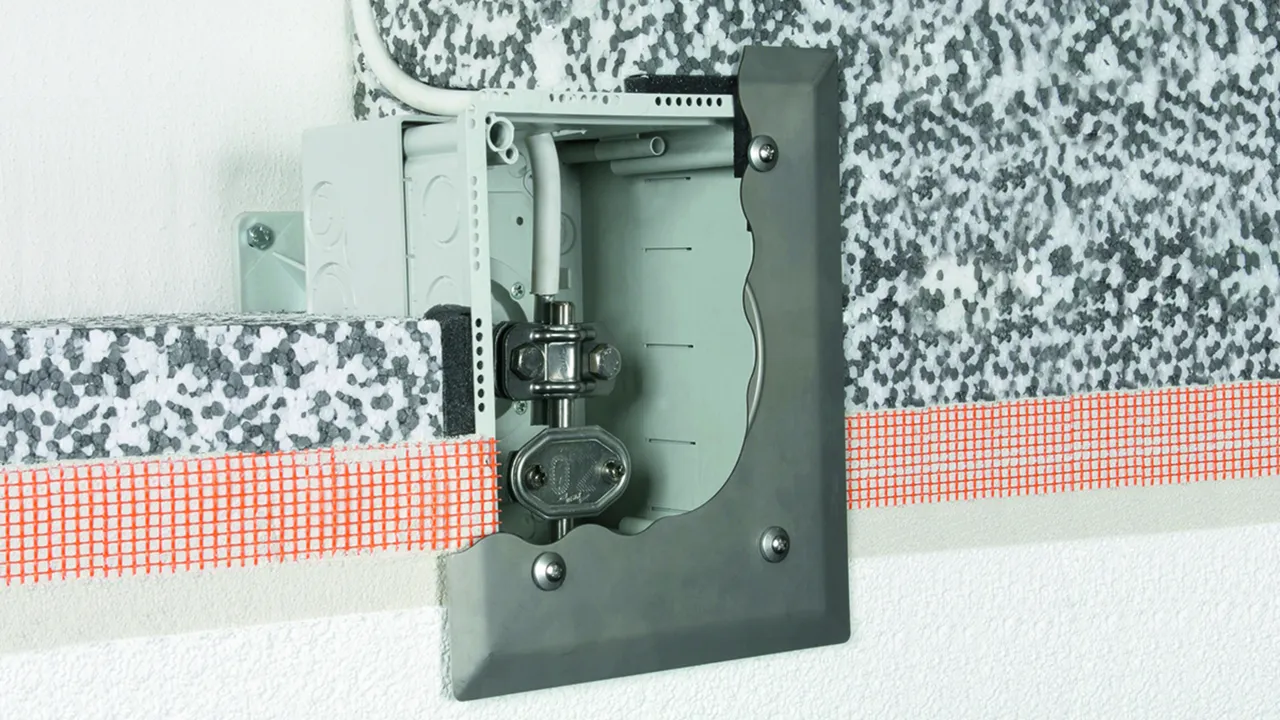

Skrzynka probiercza do złożonych systemów zewnętrznej izolacji termicznej (ETICS)
Properly installed, the constructive design (with adhesive surface for attaching a swellable waterstop tape) with specially edged StSt cover with seal, ensures resistance to driving rain.
The test joint box is telescopable from 90-140 mm and using the additional spacer it can be used up to an insulation material thickness of 320 mm.
Delivery includes the adequate fixing elements (screws and dowels) as well as a styrofoam cover (soiling protection during plastering).
Suits for insertion of (perforations):
– Round wire Ø8-10 mm
– Round wire with plastic sheath Ø13 mm
– HVI Conductors Ø20-27 mm
– Flat strip 30x3.5 mm
The necessary disconnecting clamp and the number plate have to be ordered separately.
Szczegóły

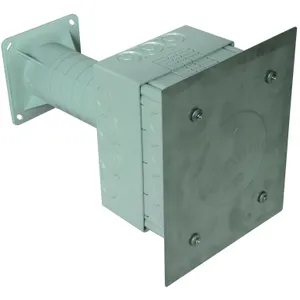

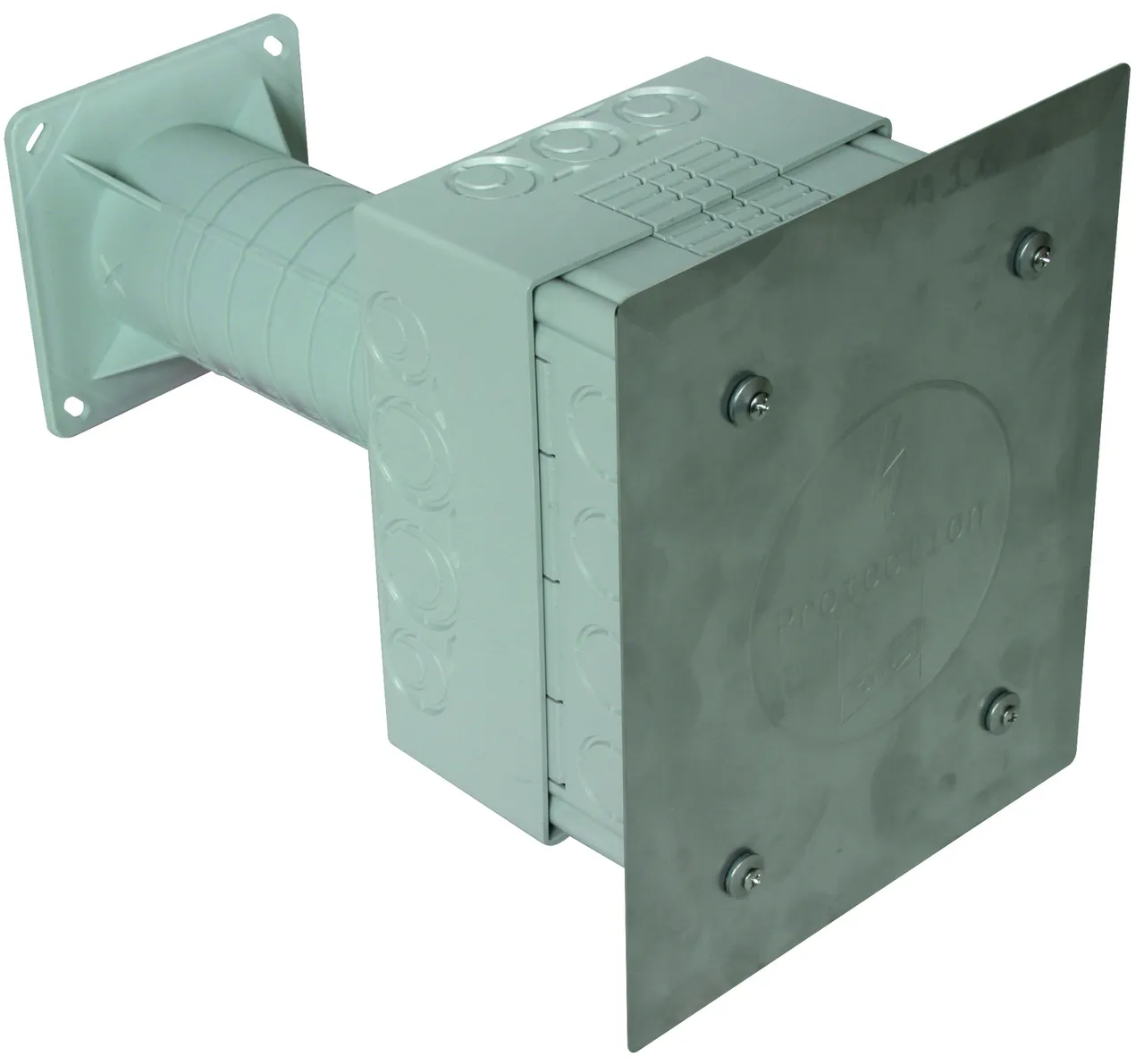

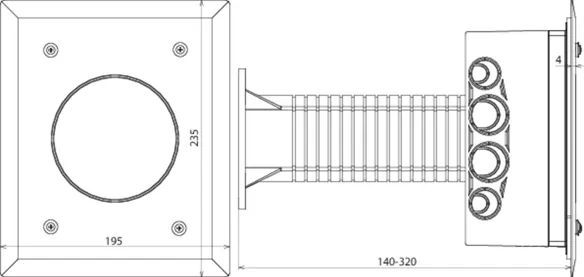

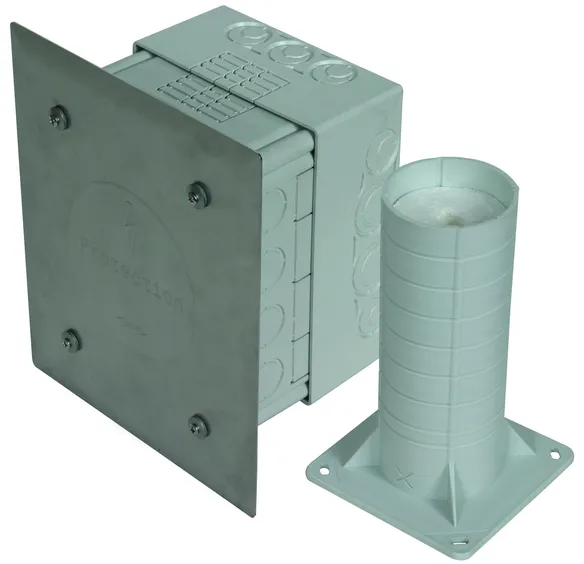

Nr kat. 476055 TSKS WDVS 185X140X88 AH50.200 K V2A
GTIN / EAN 4013364219755, Nr taryfy celnej (EU): 85359000, Waga brutto: 1.02 kg, Jednostka opakowaniowa: 1.00 szt.
Dane techniczne
Materiał skrzynki | PC / ABS |
Wymiary skrzynki | 185 x 145 mm |
Materiał pokrywki | StSt |
Materiał wspornika dystansującego | PP |
Wymiary wspornika dystansującego | 120 x 120 x 200 mm |
Głębokość montażowa | 90-320 mm |

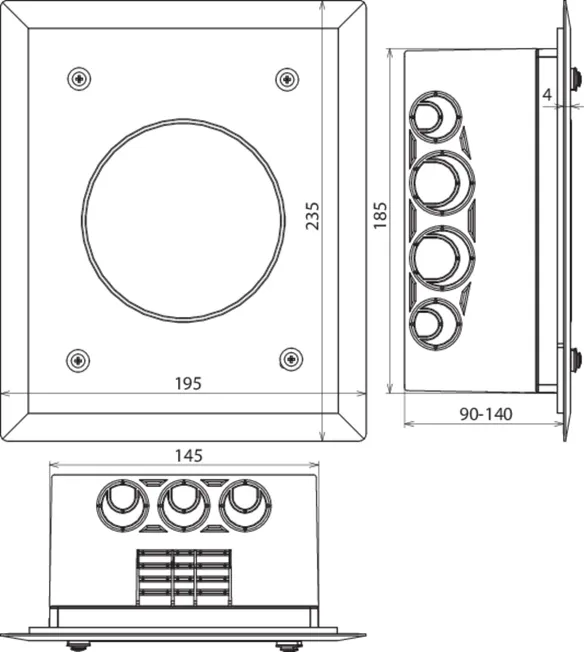

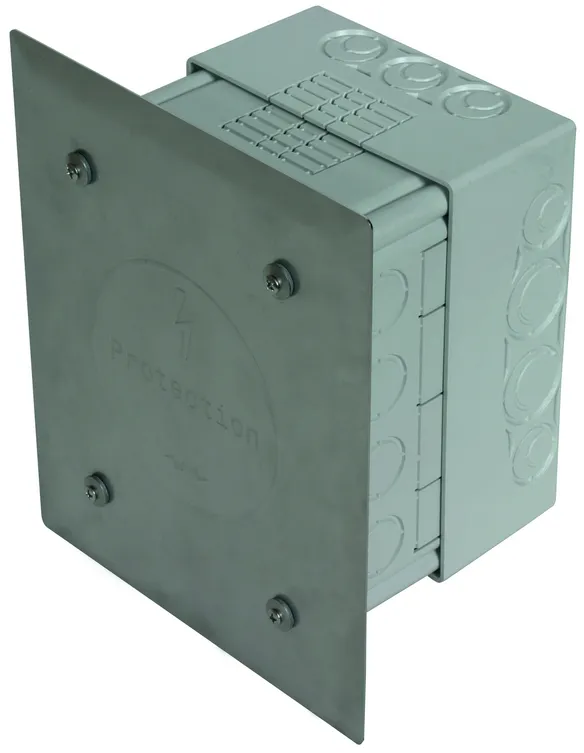

Nr kat. 476050 TSK WDVS 180X140X88 K V2A
GTIN / EAN 4013364219717, Nr taryfy celnej (EU): 85359000, Waga brutto: 1.02 kg, Jednostka opakowaniowa: 1.00 szt.
Dane techniczne
Materiał skrzynki | PC / ABS |
Wymiary skrzynki | 185 x 145 mm |
Materiał pokrywki | StSt |
Głębokość montażowa | 90-140 mm |

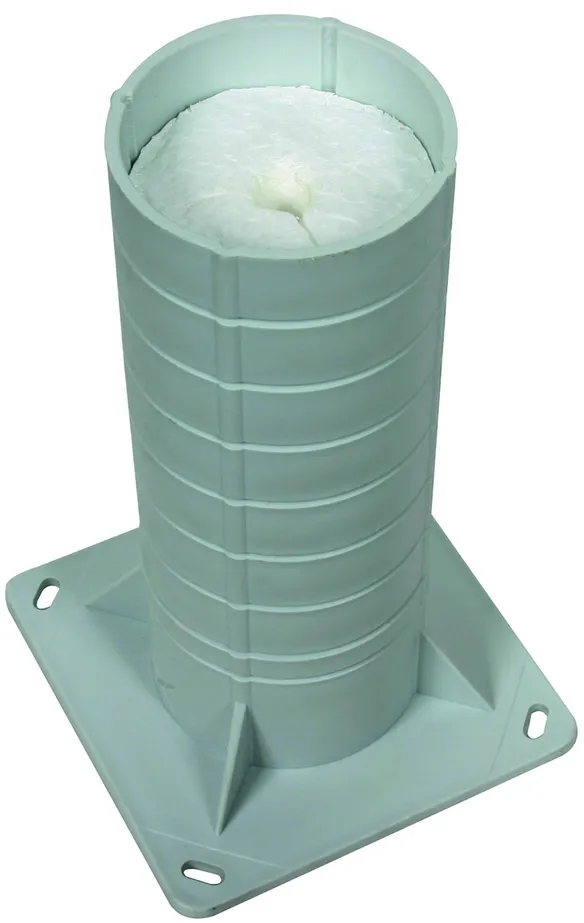

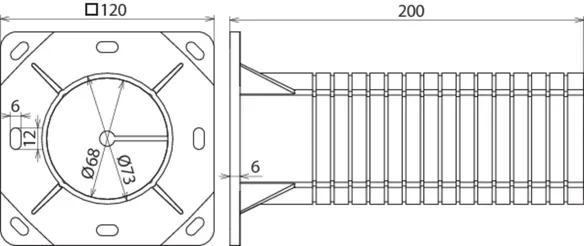

Nr kat. 476053 AH TSK WDVS 50.200 K
GTIN / EAN 4013364219724, Nr taryfy celnej (EU): 39259080, Waga brutto: 225.00 g, Jednostka opakowaniowa: 1.00 szt.
Dane techniczne
Materiał wspornika dystansującego | PP |
Wymiary wspornika dystansującego | 120 x 120 x 200 mm |
