Wskaźnik napięcia PHE III

Safe verification of isolation from supply voltage

Reliable indication
Easy to use
Cost-effective / space-saving transport

Szczegóły

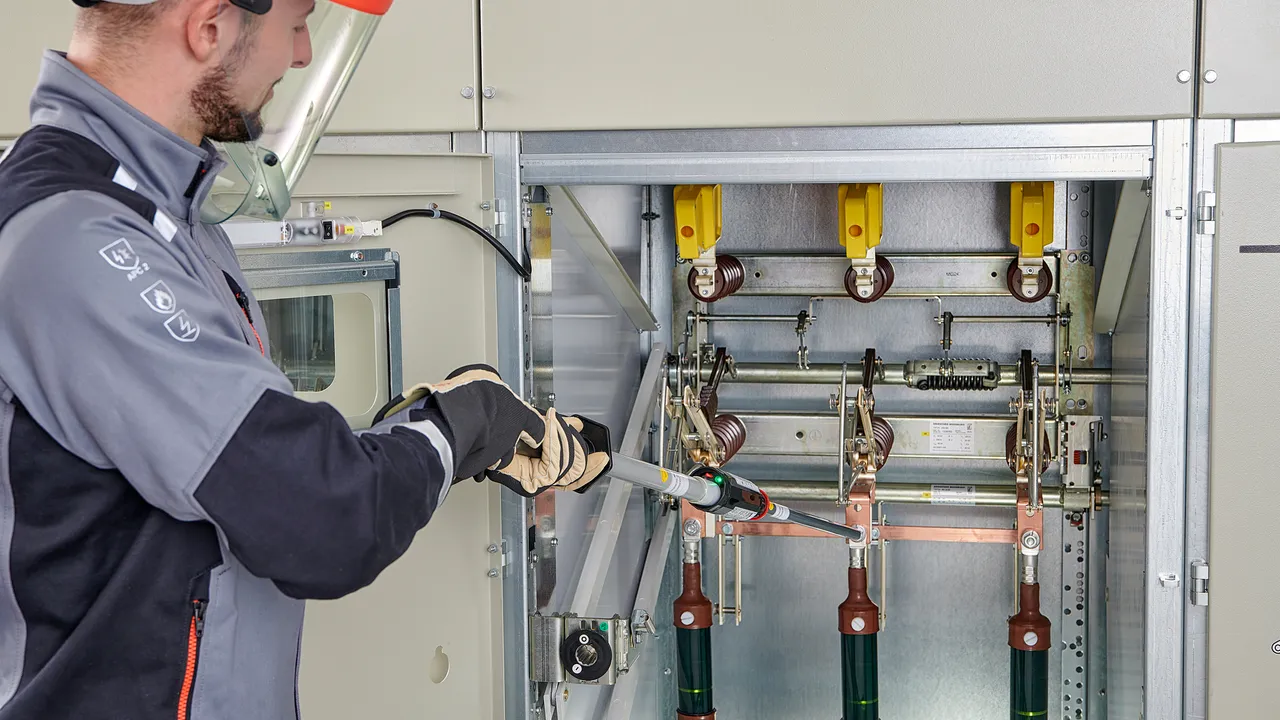

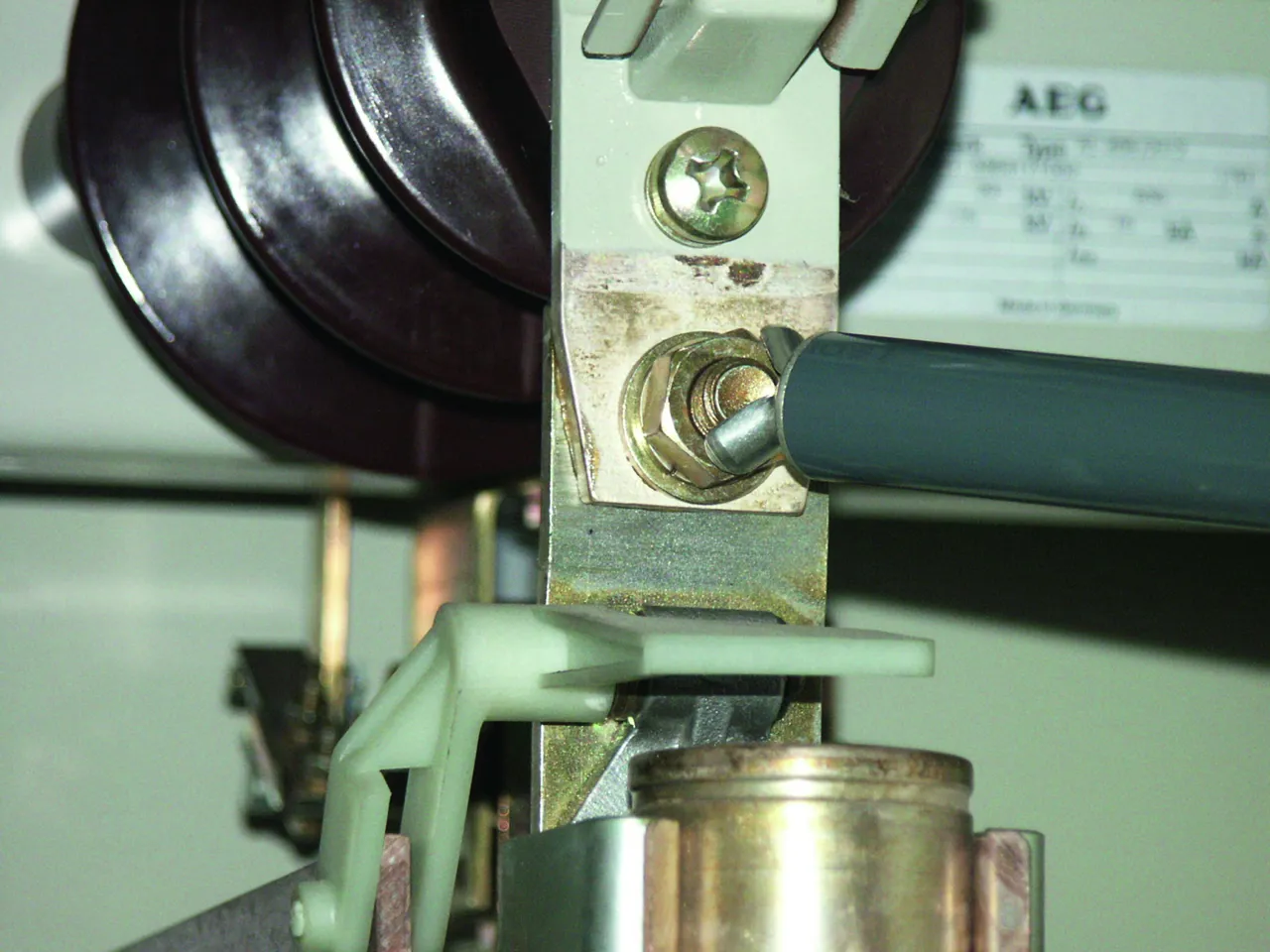

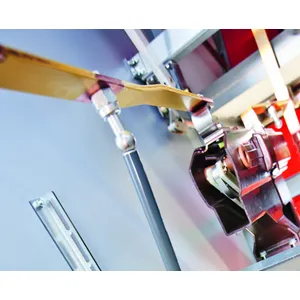

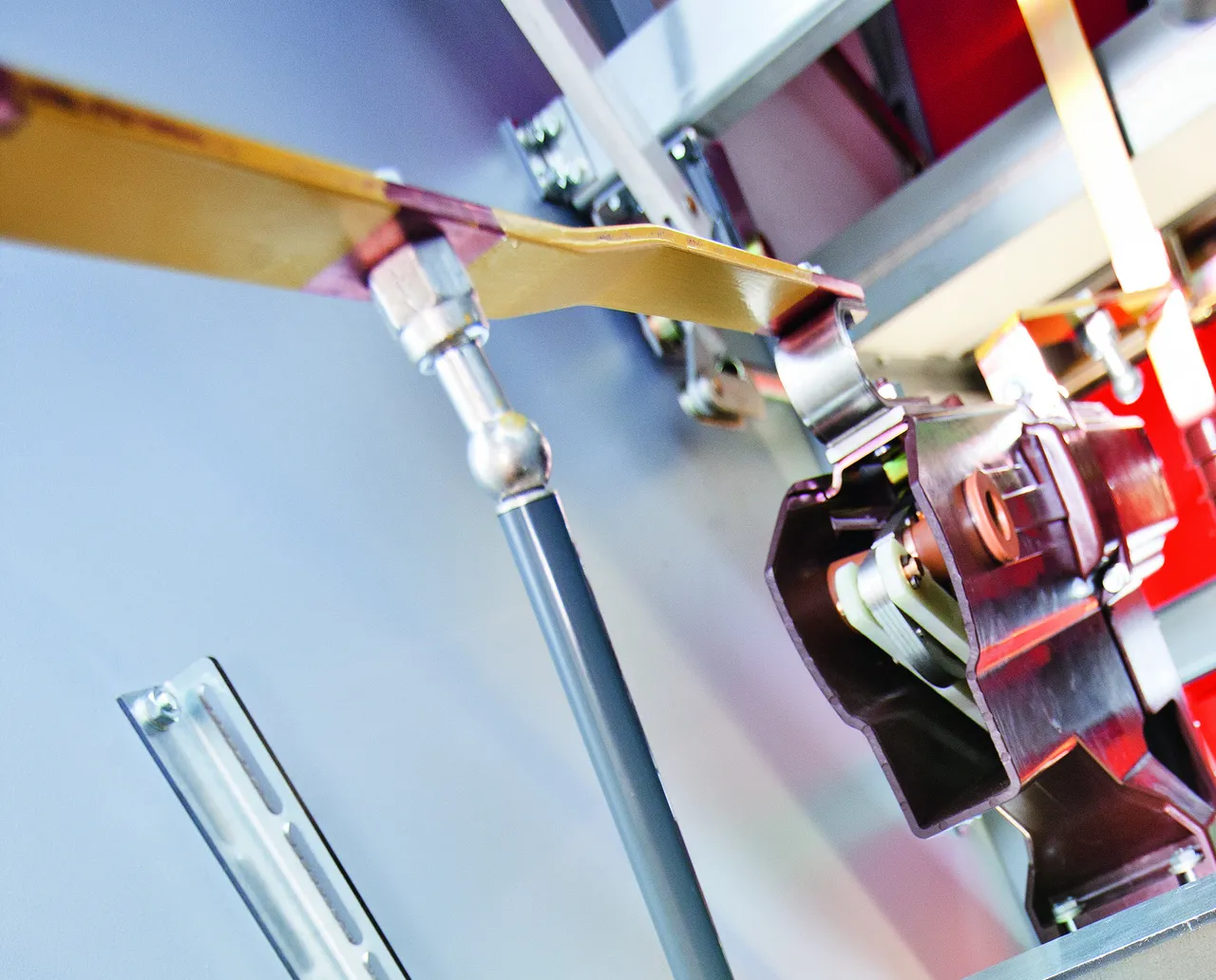

lorem ipsum — Testing with integrated electrode

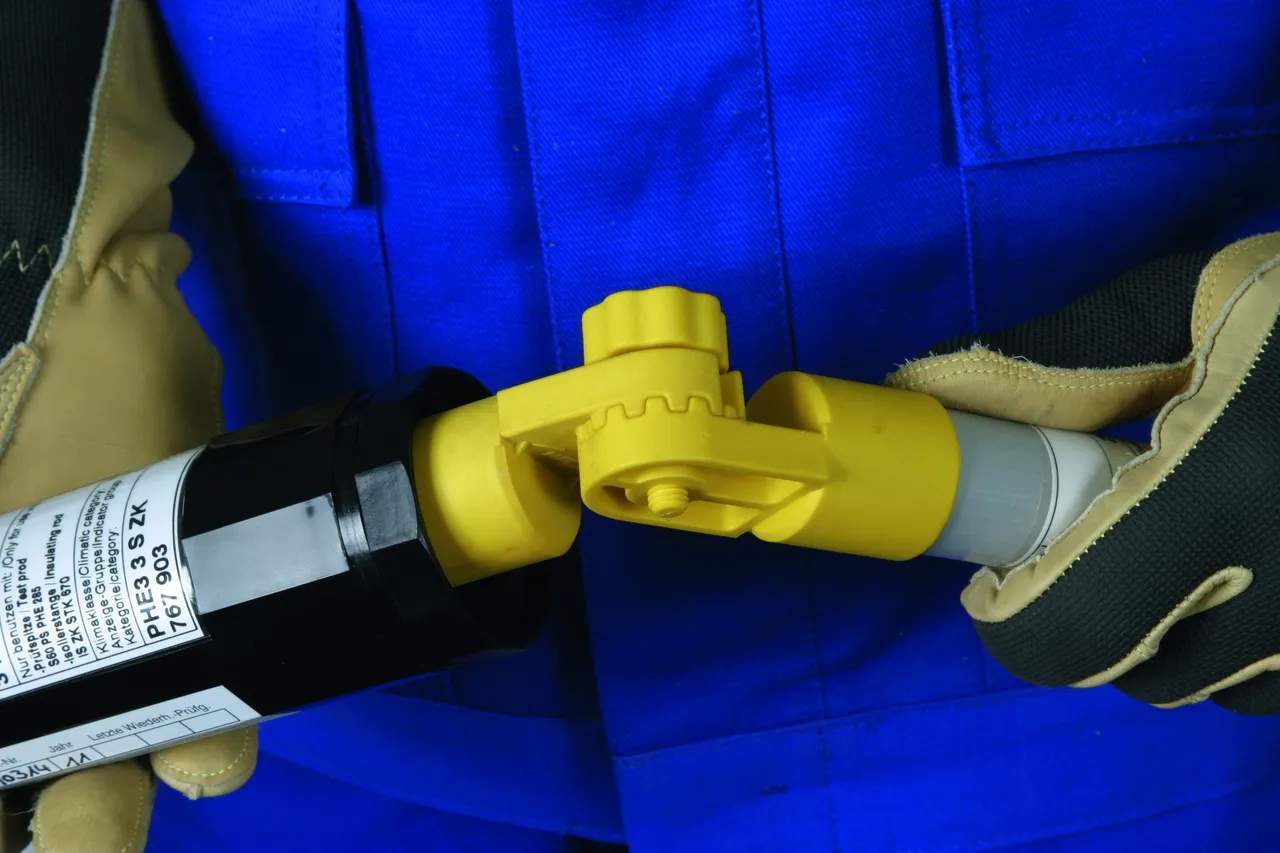

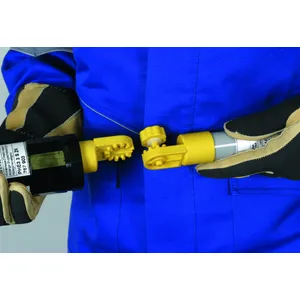

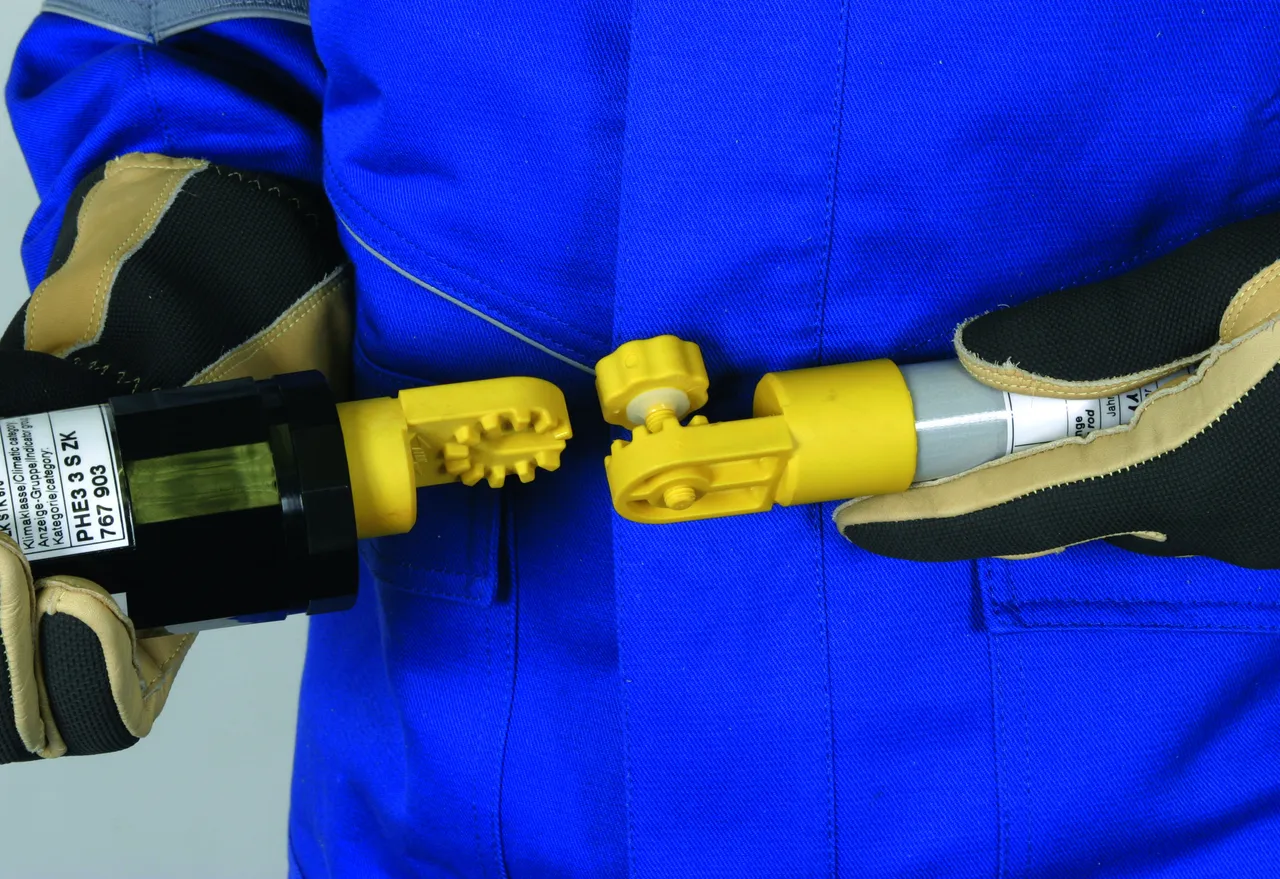

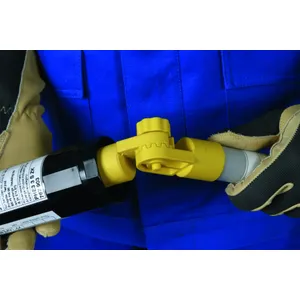

Universal gear coupling allows to adjust the angle of the voltage detector

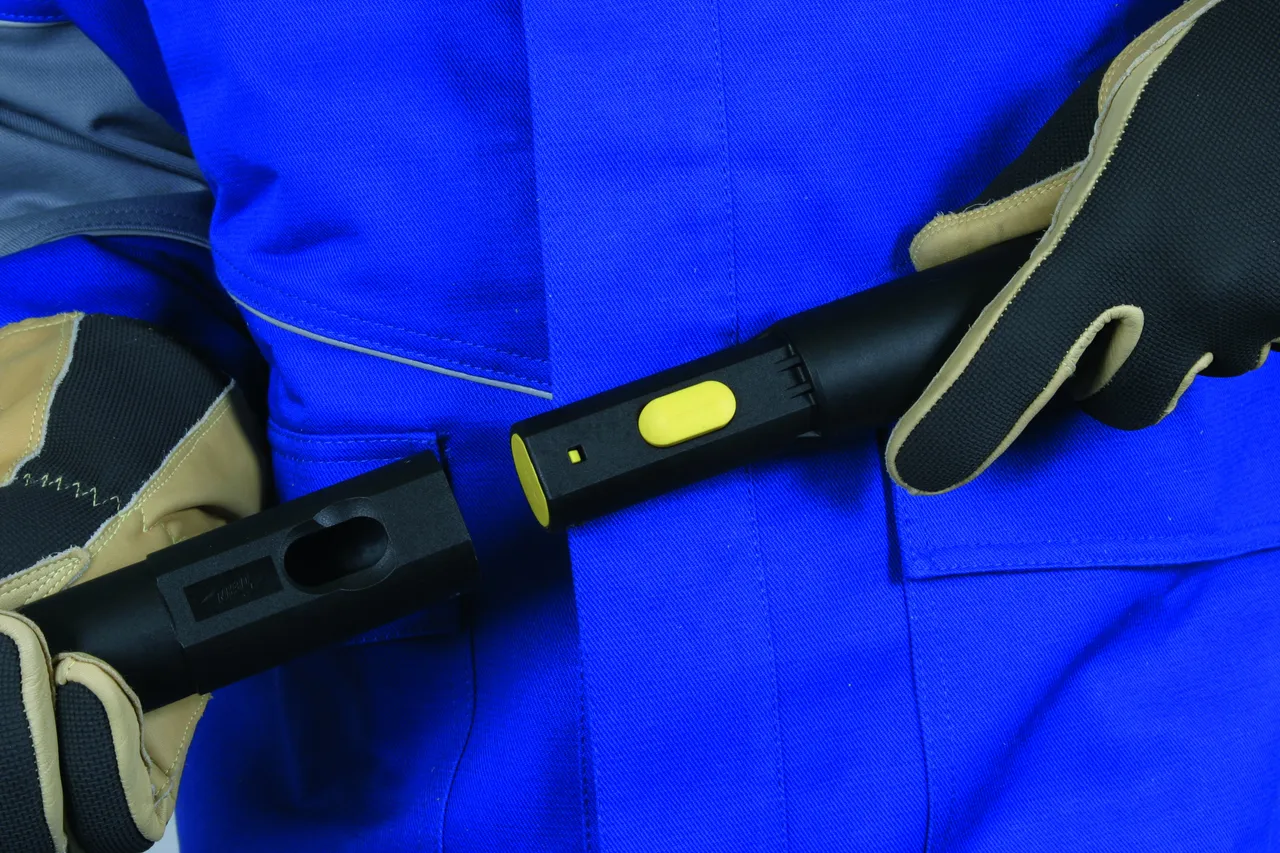

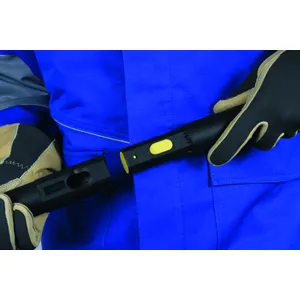

Plugging a HV STK extension handle into an IS PHE STK insulating stick

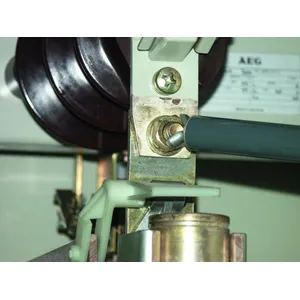

Testing with screwed-on V-shaped electrode

Napięcia znamionowe do 30 kV / 50 Hz, gwint M12

Category "S" for switchgear installations and overhead lines.

5 Produkty

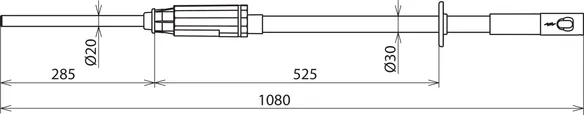

Nr kat. 767703 PHE3 3 S

GTIN / EAN 4013364070899, Nr taryfy celnej (EU): 90303370, Waga brutto: 1.71 kg, Jednostka opakowaniowa: 1.00 szt.

Rysunki

Open PDF

Informacje dodatkowe

Certyfikaty

Dane techniczne

Nominal voltage (U_N )	3 kV
Total length (l_G )	1080 mm
Insertion depth (I_O )	285 mm

Nominal voltage (U_N )	3 kV
Type of voltage	a.c.
Category	S 60
Total length (l_G )	1080 mm
Insertion depth (I_O )	285 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Produkt 767703 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 767703.

Idź do sklepu internetowego

Nr kat. 767706 PHE3 6 S

GTIN / EAN 4013364070837, Nr taryfy celnej (EU): 90303370, Waga brutto: 1.71 kg, Jednostka opakowaniowa: 1.00 szt.

Rysunki

Open PDF

Informacje dodatkowe

Certyfikaty

Dane techniczne

Nominal voltage (U_N )	6 kV
Total length (l_G )	1080 mm
Insertion depth (I_O )	285 mm

Nominal voltage (U_N )	6 kV
Type of voltage	a.c.
Category	S 60
Total length (l_G )	1080 mm
Insertion depth (I_O )	285 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Produkt 767706 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 767706.

Idź do sklepu internetowego

Nr kat. 767710 PHE3 10 S

GTIN / EAN 4013364070851, Nr taryfy celnej (EU): 90303370, Waga brutto: 1.71 kg, Jednostka opakowaniowa: 1.00 szt.

Rysunki

Open PDF

Informacje dodatkowe

Certyfikaty

Dane techniczne

Nominal voltage (U_N )	10 kV
Total length (l_G )	1080 mm
Insertion depth (I_O )	285 mm

Nominal voltage (U_N )	10 kV
Type of voltage	a.c.
Category	S 60
Total length (l_G )	1080 mm
Insertion depth (I_O )	285 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Produkt 767710 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 767710.

Idź do sklepu internetowego

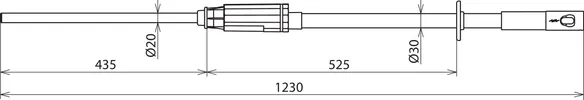

Nr kat. 767720 PHE3 20 S

GTIN / EAN 4013364070844, Nr taryfy celnej (EU): 90303370, Waga brutto: 1.89 kg, Jednostka opakowaniowa: 1.00 szt.

Rysunki

Open PDF

Informacje dodatkowe

Certyfikaty

Dane techniczne

Nominal voltage (U_N )	20 kV
Total length (l_G )	1230 mm
Insertion depth (I_O )	435 mm

Nominal voltage (U_N )	20 kV
Type of voltage	a.c.
Category	S 61
Total length (l_G )	1230 mm
Insertion depth (I_O )	435 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Produkt 767720 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 767720.

Idź do sklepu internetowego

Nr kat. 767730 PHE3 30 S

GTIN / EAN 4013364070813, Nr taryfy celnej (EU): 90303370, Waga brutto: 1.83 kg, Jednostka opakowaniowa: 1.00 szt.

Rysunki

Open PDF

Informacje dodatkowe

Certyfikaty

Dane techniczne

Nominal voltage (U_N )	30 kV
Total length (l_G )	1415 mm
Insertion depth (I_O )	620 mm

Nominal voltage (U_N )	30 kV
Type of voltage	a.c.
Category	S 62
Total length (l_G )	1415 mm
Insertion depth (I_O )	620 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Produkt 767730 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 767730.

Idź do sklepu internetowego

Zakres napięcia znamionowego do 30 kV / 50 Hz, gwint M12

Category "S" for switchgear installations and overhead lines.

3 Produkty

Nr kat. 767711 PHE3 3 10 S

GTIN / EAN 4013364070820, Nr taryfy celnej (EU): 90303370, Waga brutto: 1.86 kg, Jednostka opakowaniowa: 1.00 szt.

Rysunki

Open PDF

Informacje dodatkowe

Certyfikaty

Dane techniczne

Nominal voltage (U_N )	3 ... 10 kV
Total length (l_G )	1415 mm
Insertion depth (I_O )	620 mm

Nominal voltage (U_N )	3 ... 10 kV
Type of voltage	a.c.
Category	S 62
Total length (l_G )	1415 mm
Insertion depth (I_O )	620 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Produkt 767711 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 767711.

Idź do sklepu internetowego

Nr kat. 767721 PHE3 6 20 S

GTIN / EAN 4013364070868, Nr taryfy celnej (EU): 90303370, Waga brutto: 1.93 kg, Jednostka opakowaniowa: 1.00 szt.

Rysunki

Open PDF

Informacje dodatkowe

Certyfikaty

Dane techniczne

Nominal voltage (U_N )	6 ... 20 kV
Total length (l_G )	1575 mm
Insertion depth (I_O )	780 mm

Nominal voltage (U_N )	6 ... 20 kV
Type of voltage	a.c.
Category	S 63
Total length (l_G )	1575 mm
Insertion depth (I_O )	780 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Produkt 767721 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 767721.

Idź do sklepu internetowego

Nr kat. 767731 PHE3 10 30 S

GTIN / EAN 4013364070875, Nr taryfy celnej (EU): 90303370, Waga brutto: 1.99 kg, Jednostka opakowaniowa: 1.00 szt.

Rysunki

Open PDF

Informacje dodatkowe

Certyfikaty

Dane techniczne

Nominal voltage (U_N )	10 ... 30 kV
Total length (l_G )	1675 mm
Insertion depth (I_O )	880 mm

Nominal voltage (U_N )	10 ... 30 kV
Type of voltage	a.c.
Category	S 64
Total length (l_G )	1675 mm
Insertion depth (I_O )	880 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Produkt 767731 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 767731.

Idź do sklepu internetowego

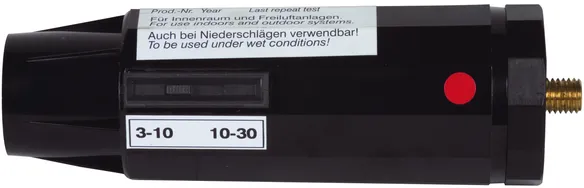

Zakres napięcia znamionowego do 30 kV / 50 Hz, zmienny zakres, gwint M12

The nominal voltage selector switch allows to switch between two nominal voltage ranges. For safety reasons, the voltage detector can only be switched on if the selector switch is switched to the most sensitive range of 3 kV to 10 kV. The switch snaps into the relevant position, thus providing protection against inadvertent switching. A magnetically operated, wear-resistant reed switch changes the switching position.

Category "S" for switchgear installations and overhead lines.

1 Produkt

Nr kat. 767733 PHE3 U 3 30 S

GTIN / EAN 4013364070882, Nr taryfy celnej (EU): 90303370, Waga brutto: 1.99 kg, Jednostka opakowaniowa: 1.00 szt.

Rysunki

Open PDF

Informacje dodatkowe

Certyfikaty

Dane techniczne

Nominal voltage (U_N )	3 ... 10 / 10 ... 30 kV
Total length (l_G )	1675 mm
Insertion depth (I_O )	880 mm

Nominal voltage (U_N )	3 ... 10 / 10 ... 30 kV
Type of voltage	a.c.
Category	S 64
Total length (l_G )	1675 mm
Insertion depth (I_O )	880 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor switchgear installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Produkt 767733 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 767733.

Idź do sklepu internetowego

Napięcie znamionowe 25 kV / 50 Hz

For the overhead contact lines of electric railways.
Category "S" for single-ended monophase systems.

1 Produkt

Nr kat. 767125 PHE3 25 S 50 1P

GTIN / EAN 4013364130319, Nr taryfy celnej (EU): 90303370, Waga brutto: 1.96 kg, Jednostka opakowaniowa: 1.00 szt.

Rysunki

Open PDF

Informacje dodatkowe

Certyfikaty

Dane techniczne

Nominal voltage (U_N )	25 kV
Total length (l_G )	1680 mm
Insertion depth (I_O )	880 mm

Nominal voltage (U_N )	25 kV
Type of voltage	a.c.
Category	S 64
Total length (l_G )	1680 mm
Insertion depth (I_O )	880 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Outdoor installations
Application	Overhead contact lines of electric vehicles
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Produkt 767125 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 767125.

Idź do sklepu internetowego

Napięcia znamionowe do 30 kV / 50 kV, złącze zębate

Category "S" for switchgear installations and overhead lines.

5 Produkty

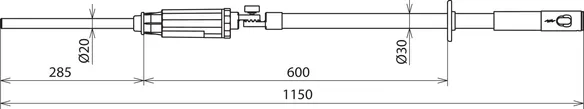

Nr kat. 767903 PHE3 3 S ZK

GTIN / EAN 4013364134737, Nr taryfy celnej (EU): 90303370, Waga brutto: 1692.00 g, Jednostka opakowaniowa: 1.00 szt.

Rysunki

Open PDF

Informacje dodatkowe

Certyfikaty

Dane techniczne

Nominal voltage (U_N )	3 kV
Total length (l_G )	1150 mm
Insertion depth (I_O )	285 mm

Nominal voltage (U_N )	3 kV
Type of voltage	a.c.
Category	S 60
Total length (l_G )	1150 mm
Insertion depth (I_O )	285 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Produkt 767903 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 767903.

Idź do sklepu internetowego

Nr kat. 767906 PHE3 6 S ZK

GTIN / EAN 4013364134744, Nr taryfy celnej (EU): 90303370, Waga brutto: 1692.00 g, Jednostka opakowaniowa: 1.00 szt.

Rysunki

Open PDF

Informacje dodatkowe

Certyfikaty

Dane techniczne

Nominal voltage (U_N )	6 kV
Total length (l_G )	1150 mm
Insertion depth (I_O )	285 mm

Nominal voltage (U_N )	6 kV
Type of voltage	a.c.
Category	S 60
Total length (l_G )	1150 mm
Insertion depth (I_O )	285 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Produkt 767906 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 767906.

Idź do sklepu internetowego

Nr kat. 767910 PHE3 10 S ZK

GTIN / EAN 4013364134751, Nr taryfy celnej (EU): 90303370, Waga brutto: 1692.00 g, Jednostka opakowaniowa: 1.00 szt.

Rysunki

Open PDF

Informacje dodatkowe

Certyfikaty

Dane techniczne

Nominal voltage (U_N )	10 kV
Total length (l_G )	1150 mm
Insertion depth (I_O )	285 mm

Nominal voltage (U_N )	10 kV
Type of voltage	a.c.
Category	S 60
Total length (l_G )	1150 mm
Insertion depth (I_O )	285 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Produkt 767910 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 767910.

Idź do sklepu internetowego

Nr kat. 767920 PHE3 20 S ZK

GTIN / EAN 4013364134768, Nr taryfy celnej (EU): 90303370, Waga brutto: 1.80 kg, Jednostka opakowaniowa: 1.00 szt.

Rysunki

Open PDF

Informacje dodatkowe

Certyfikaty

Dane techniczne

Nominal voltage (U_N )	20 kV
Total length (l_G )	1300 mm
Insertion depth (I_O )	435 mm

Nominal voltage (U_N )	20 kV
Type of voltage	a.c.
Category	S 61
Total length (l_G )	1300 mm
Insertion depth (I_O )	435 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Produkt 767920 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 767920.

Idź do sklepu internetowego

Nr kat. 767930 PHE3 30 S ZK

GTIN / EAN 4013364134775, Nr taryfy celnej (EU): 90303370, Waga brutto: 1.87 kg, Jednostka opakowaniowa: 1.00 szt.

Rysunki

Open PDF

Informacje dodatkowe

Certyfikaty

Dane techniczne

Nominal voltage (U_N )	30 kV
Total length (l_G )	1485 mm
Insertion depth (I_O )	620 mm

Nominal voltage (U_N )	30 kV
Type of voltage	a.c.
Category	S 62
Total length (l_G )	1485 mm
Insertion depth (I_O )	620 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Produkt 767930 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 767930.

Idź do sklepu internetowego

Zakres napięcia znamionowego do 30 kV / 50 Hz, złącze zębate

Category "S" for switchgear installations and overhead lines.

3 Produkty

Nr kat. 767941 PHE3 3 10 S ZK

GTIN / EAN 4013364134782, Nr taryfy celnej (EU): 90303370, Waga brutto: 1.87 kg, Jednostka opakowaniowa: 1.00 szt.

Rysunki

Open PDF

Informacje dodatkowe

Certyfikaty

Dane techniczne

Nominal voltage (U_N )	3 ... 10 kV
Total length (l_G )	1485 mm
Insertion depth (I_O )	620 mm

Nominal voltage (U_N )	3 ... 10 kV
Type of voltage	a.c.
Category	S 62
Total length (l_G )	1485 mm
Insertion depth (I_O )	620 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Produkt 767941 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 767941.

Idź do sklepu internetowego

Nr kat. 767951 PHE3 6 20 S ZK

GTIN / EAN 4013364134799, Nr taryfy celnej (EU): 90303370, Waga brutto: 1.96 kg, Jednostka opakowaniowa: 1.00 szt.

Rysunki

Open PDF

Informacje dodatkowe

Certyfikaty

Dane techniczne

Nominal voltage (U_N )	6 ... 20 kV
Total length (l_G )	1645 mm
Insertion depth (I_O )	780 mm

Nominal voltage (U_N )	6 ... 20 kV
Type of voltage	a.c.
Category	S 63
Total length (l_G )	1645 mm
Insertion depth (I_O )	780 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Produkt 767951 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 767951.

Idź do sklepu internetowego

Nr kat. 767961 PHE3 10 30 S ZK

GTIN / EAN 4013364134805, Nr taryfy celnej (EU): 90303370, Waga brutto: 2.02 kg, Jednostka opakowaniowa: 1.00 szt.

Rysunki

Open PDF

Informacje dodatkowe

Certyfikaty

Dane techniczne

Nominal voltage (U_N )	10 ... 30 kV
Total length (l_G )	1745 mm
Insertion depth (I_O )	880 mm

Nominal voltage (U_N )	10 ... 30 kV
Type of voltage	a.c.
Category	S 64
Total length (l_G )	1745 mm
Insertion depth (I_O )	880 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Produkt 767961 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 767961.

Idź do sklepu internetowego

Zakres napięcia znamionowego do 36 kV / 50 Hz, złącze zębate, zmienny zakres

The nominal voltage selector switch allows to switch between two nominal voltage ranges. For safety reasons, the voltage detector can only be switched on if the selector switch is switched to the most sensitive range of (3 kV to 10 kV or 6 kV to 20 kV). The switch snaps into the relevant position, thus providing protection against inadvertent switching. A magnetically operated, wear-resistant reed switch changes the switching position.

Category "S" for switchgear installations and overhead lines.

2 Produkty

Nr kat. 767960 PHE3 U 3 30 S ZK

GTIN / EAN 4013364134812, Nr taryfy celnej (EU): 90303370, Waga brutto: 2.02 kg, Jednostka opakowaniowa: 1.00 szt.

Rysunki

Open PDF

Informacje dodatkowe

Certyfikaty

Dane techniczne

Nominal voltage (U_N )	3 ... 10 / 10 ... 30 kV
Total length (l_G )	1745 mm
Insertion depth (I_O )	880 mm

Nominal voltage (U_N )	3 ... 10 / 10 ... 30 kV
Type of voltage	a.c.
Category	S 64
Total length (l_G )	1745 mm
Insertion depth (I_O )	880 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Produkt 767960 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 767960.

Idź do sklepu internetowego

Nr kat. 767944 PHE3 U 6 36 S SN7728

GTIN / EAN 4013364277731, Nr taryfy celnej (EU): 90303370, Waga brutto: 2.16 kg, Jednostka opakowaniowa: 1.00 szt.

Rysunki

Open PDF

Informacje dodatkowe

Certyfikaty

Dane techniczne

Nominal voltage (U_N )	6 ... 20 / 20 ... 36 kV
Total length (l_G )	1745 mm
Insertion depth (I_O )	880 mm

Nominal voltage (U_N )	6 ... 20 / 20 ... 36 kV
Type of voltage	a.c.
Category	S 64
Total length (l_G )	1745 mm
Insertion depth (I_O )	880 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Produkt 767944 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 767944.

Idź do sklepu internetowego

Zakres napięcia znamionowego do 30 kV / 50 Hz, zestaw probierczy, gwint M12

With two test prods of Category "S" for switchgear installations and overhead lines and of Category "L" for overhead lines.

2 Produkty

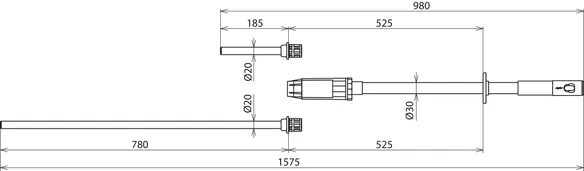

Nr kat. 767740 PHE3 6 20 SL

GTIN / EAN 4013364071063, Nr taryfy celnej (EU): 90303370, Waga brutto: 2.15 kg, Jednostka opakowaniowa: 1.00 szt.

Rysunki

Open PDF

Informacje dodatkowe

Certyfikaty

Dane techniczne

Nominal voltage (U_N )	6 ... 20 kV
Total length (l_G )	1575 / 980 mm
Insertion depth (I_O )	780 / 185 mm

Nominal voltage (U_N )	6 ... 20 kV
Type of voltage	a.c.
Category	S 63 / L 71
Total length (l_G )	1575 / 980 mm
Insertion depth (I_O )	780 / 185 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines or overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Produkt 767740 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 767740.

Idź do sklepu internetowego

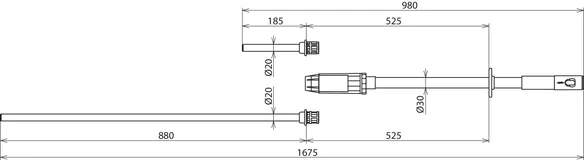

Nr kat. 767750 PHE3 10 30 SL

GTIN / EAN 4013364071070, Nr taryfy celnej (EU): 90303370, Waga brutto: 2.21 kg, Jednostka opakowaniowa: 1.00 szt.

Rysunki

Open PDF

Informacje dodatkowe

Certyfikaty

Dane techniczne

Nominal voltage (U_N )	10 ... 30 kV
Total length (l_G )	1675 / 980 mm
Insertion depth (I_O )	880 / 185 mm

Nominal voltage (U_N )	10 ... 30 kV
Type of voltage	a.c.
Category	S 64 / L 71
Total length (l_G )	1675 / 980 mm
Insertion depth (I_O )	880 / 185 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Switchgear installations and overhead lines
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Produkt 767750 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 767750.

Idź do sklepu internetowego

Zakres napięcia znamionowego do 30 kV / 50 Hz, zestaw probierczy, złącze zębate

With two test prods of Category "S" for switchgear installations and overhead lines and of Category "L" for overhead lines.

2 Produkty

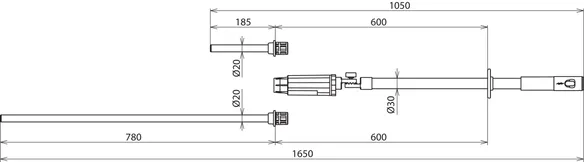

Nr kat. 767940 PHE3 6 20 SL ZK

GTIN / EAN 4013364134829, Nr taryfy celnej (EU): 90303370, Waga brutto: 2.09 kg, Jednostka opakowaniowa: 1.00 szt.

Rysunki

Open PDF

Informacje dodatkowe

Certyfikaty

Dane techniczne

Nominal voltage (U_N )	6 ... 20 kV
Total length (l_G )	1650 / 1050 mm
Insertion depth (I_O )	780 / 185 mm

Nominal voltage (U_N )	6 ... 20 kV
Type of voltage	a.c.
Category	S 63 / L 71
Total length (l_G )	1650 / 1050 mm
Insertion depth (I_O )	780 / 185 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines or overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Produkt 767940 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 767940.

Idź do sklepu internetowego

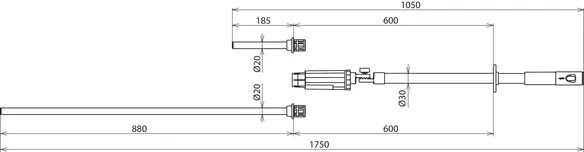

Nr kat. 767950 PHE3 10 30 SL ZK

GTIN / EAN 4013364134836, Nr taryfy celnej (EU): 90303370, Waga brutto: 2.14 kg, Jednostka opakowaniowa: 1.00 szt.

Rysunki

Open PDF

Informacje dodatkowe

Certyfikaty

Dane techniczne

Nominal voltage (U_N )	10 ... 30 kV
Total length (l_G )	1750 / 1050 mm
Insertion depth (I_O )	880 / 185 mm

Nominal voltage (U_N )	10 ... 30 kV
Type of voltage	a.c.
Category	S 64 / L 71
Total length (l_G )	1750 / 1050 mm
Insertion depth (I_O )	880 / 185 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines or overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Produkt 767950 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 767950.

Idź do sklepu internetowego
