Narzędzie do ściągania izolacji z przewodów CUI

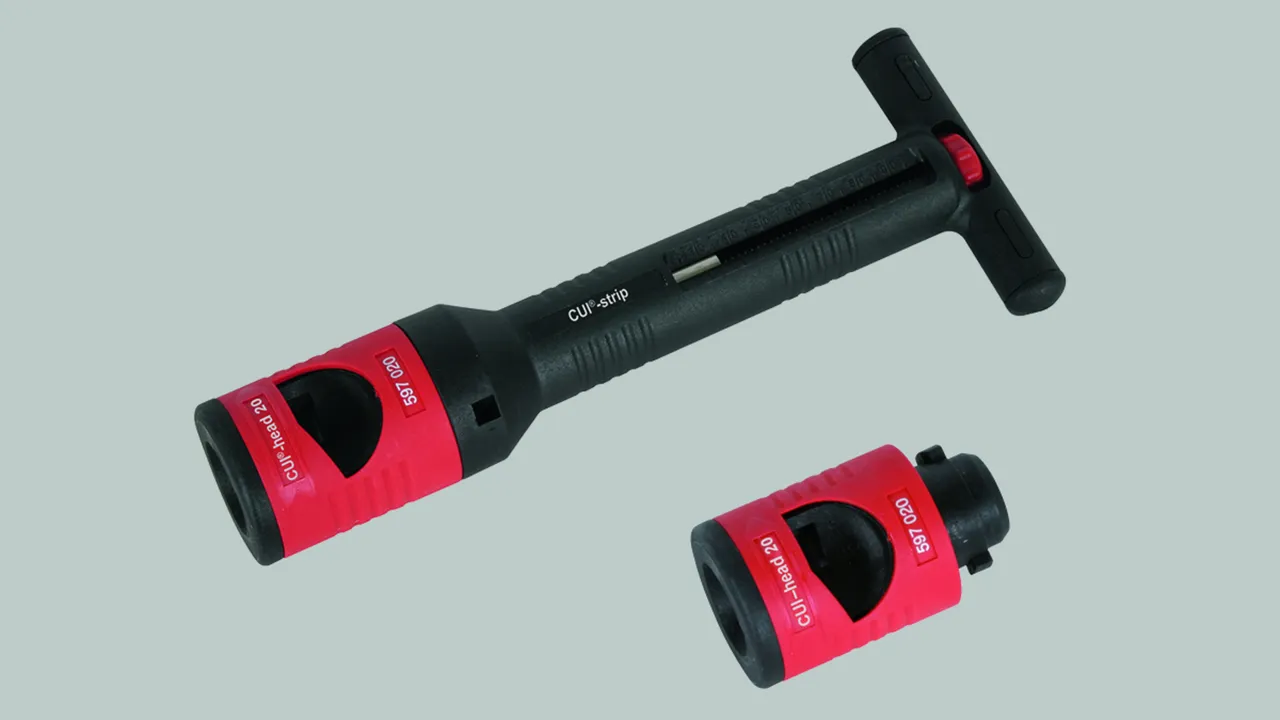

Tool for stripping the XLPE insulated CUI Conductor (outer diameter 20 mm).
  • Tool consists of a handle and an exchangeable cutting head
  • Stripping length of the CUI Conductor is adjustable in steps of 0.2 mm (lock points) by the set screw in the handle and is shown on the handle scale.
HandlingApply the cutting head at the conductor end and turn clockwise with light pressure for cutting / stripping.

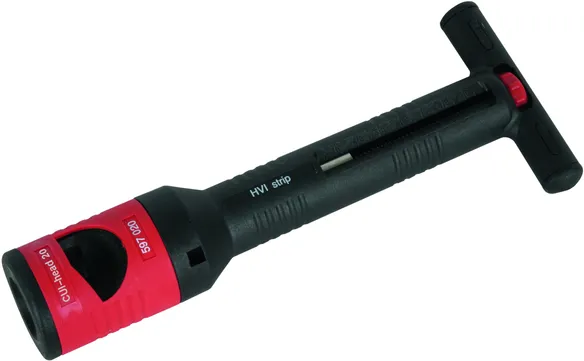

CUI-strip 20

1 Produkt

Nr kat. 597320 CUI STRIP 20

GTIN / EAN 4013364154940, Nr taryfy celnej: 82055980, Waga brutto: 442.00 g, Jednostka opakowaniowa: 1.00 szt.

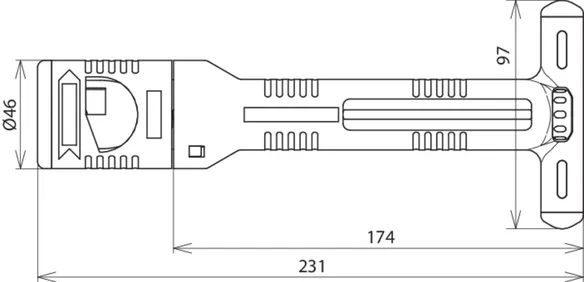

Rysunki

Informacje dodatkowe



Producent: DEHN
Typ: CUI STRIP 20
Nr kat.: 597320
lub podobny.



Dane techniczne

Średnica przewodu Ø 20 mm
Materiał odlewu plastic
Materiał ostrza StSt

Produkt 597320 został dodany do notatnika.

Do koszyka dodano produkt 597320.

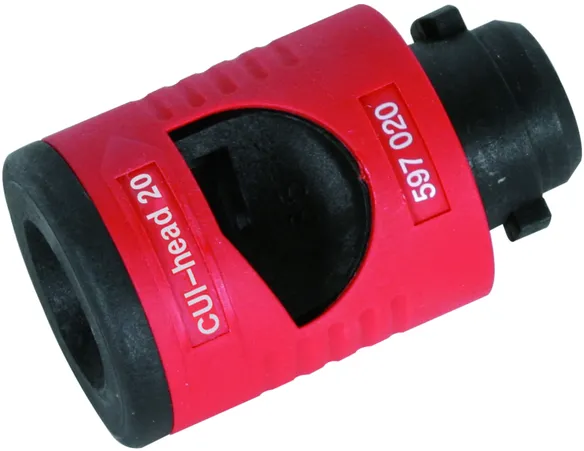

CUI-head 20

Toolless exchange of the cutting head due to the bayonet coupling.

1 Produkt

Nr kat. 597020 CUI HEAD 20

GTIN / EAN 4013364154957, Nr taryfy celnej: 82055980, Waga brutto: 155.00 g, Jednostka opakowaniowa: 1.00 szt.

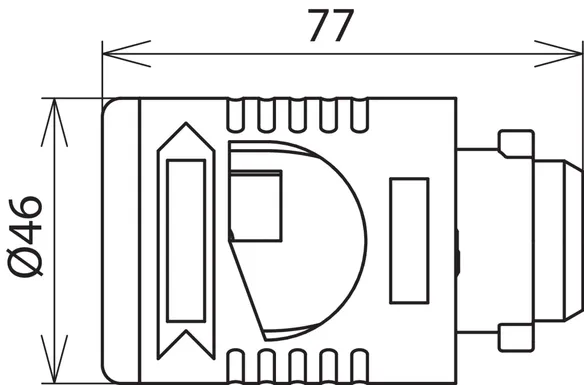

Rysunki

Informacje dodatkowe



Producent: DEHN
Typ: CUI HEAD 20
Nr kat.: 597020
lub podobny.



Dane techniczne

Średnica przewodu Ø 20 mm
Materiał odlewu plastic
Materiał ostrza StSt

Produkt 597020 został dodany do notatnika.

Do koszyka dodano produkt 597020.
