Akcesoria do systemu monitorowania stanu z czujnikiem LifeCheck

Zasilacz montowany na szynie DIN

High-performance DIN rail mounted power supply unit with single-phase wide-range input can be connected to different supply systems. The operating state indicator on the front panel indicates that the output voltage is present. Up to 10 DRC MCM XT or DRC SCM XT (single application) or up to 15 DRC MCM XT (multiple application) monitoring devices can be connected to a single power supply unit.

1 Produkt

Nr kat. 910499 PSU DC24 30W

GTIN / EAN 4013364157149, Nr taryfy celnej: 85044083, Waga brutto: 200.00 g, Jednostka opakowaniowa: 1.00 szt.

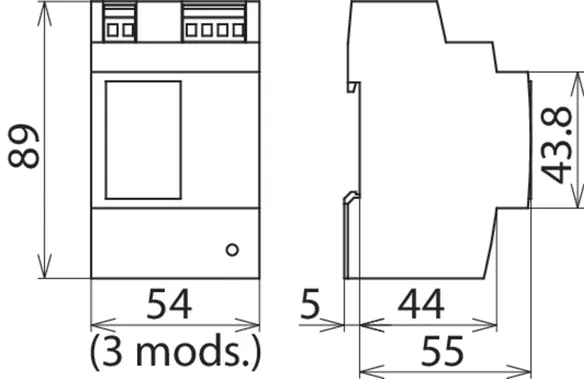

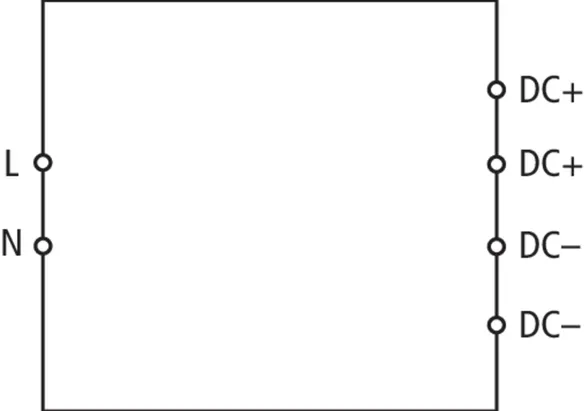

Rysunki

Informacje dodatkowe

DIN rail mounted PSU DC 24 30W power supply unit
Primary synchronised power supply in a
DIN rail mounted enclosure with single-phase
wide-range input for supplying 24 V d.c. systems
Zakres napięcia wejściowego: 85-264 V AC; 120-373 V DC
Zakres napięcia wyjściowego: 22,8-26,4 V DC, zmiennie
Prąd wyjściowy: 1,3 A przy 24 V DC, maksymalnie 0,9 A w dowolnej pozycji montażowej

Producent: DEHN
Typ: PSU DC24 30W
Nr kat.: 910499
lub podobny.

Certyfikaty



Dane techniczne

Zakres napięcia wejściowego 85-264 V AC; 120-373 V DC
Częstotliwość 44-66 Hz; 0 Hz
Prąd wejściowy (Ie ) 0,7 A przy 110 V AC / 0,5 A przy 230 V AC
Znamionowe napięcie wyjściowe (Ua ) 24 V DC (SELV)
Prąd wyjściowy (Ia ) 1,3 A przy 24 V DC, maksymalnie 0,9 A w dowolnej pozycji montażowej
Zalecane zabezpieczenie nadprądowe wyłącznik nadmiarowo-prądowy 10 A, 16 A, charakterystyka B, C
Spełnia wymagania normy / przepisów EN 60950, EN 61204-3, UL 60950, UL 508, GL

Produkt 910499 został dodany do notatnika.

Do koszyka dodano produkt 910499.

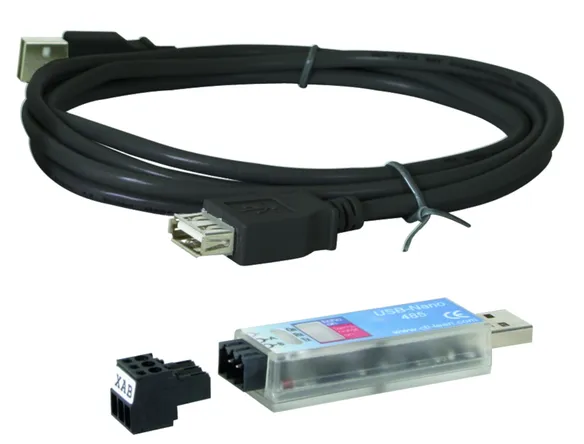

Adapter USB-RS485

USB-Nano-485 converts signals between USB and RS485 and is specifically designed for two-wire RS485 buses. LEDs indicate the operating state (yellow), Rx (green) and Tx (red). Due to its compact dimensions, USB-Nano-485 is ideally suited for use with notebooks, however, stationary use is also possible.

1 Produkt

Nr kat. 910486 USB NANO 485

GTIN / EAN 4013364124479, Nr taryfy celnej: 85399090, Waga brutto: 79.60 g, Jednostka opakowaniowa: 1.00 szt.


Rysunki

Informacje dodatkowe



Producent: DEHN
Typ: USB NANO 485
Nr kat.: 910486
lub podobny.

Certyfikaty



Dane techniczne


Produkt 910486 został dodany do notatnika.

Do koszyka dodano produkt 910486.
