Teleskopowy maszt odgromowy wkręcany w grunt

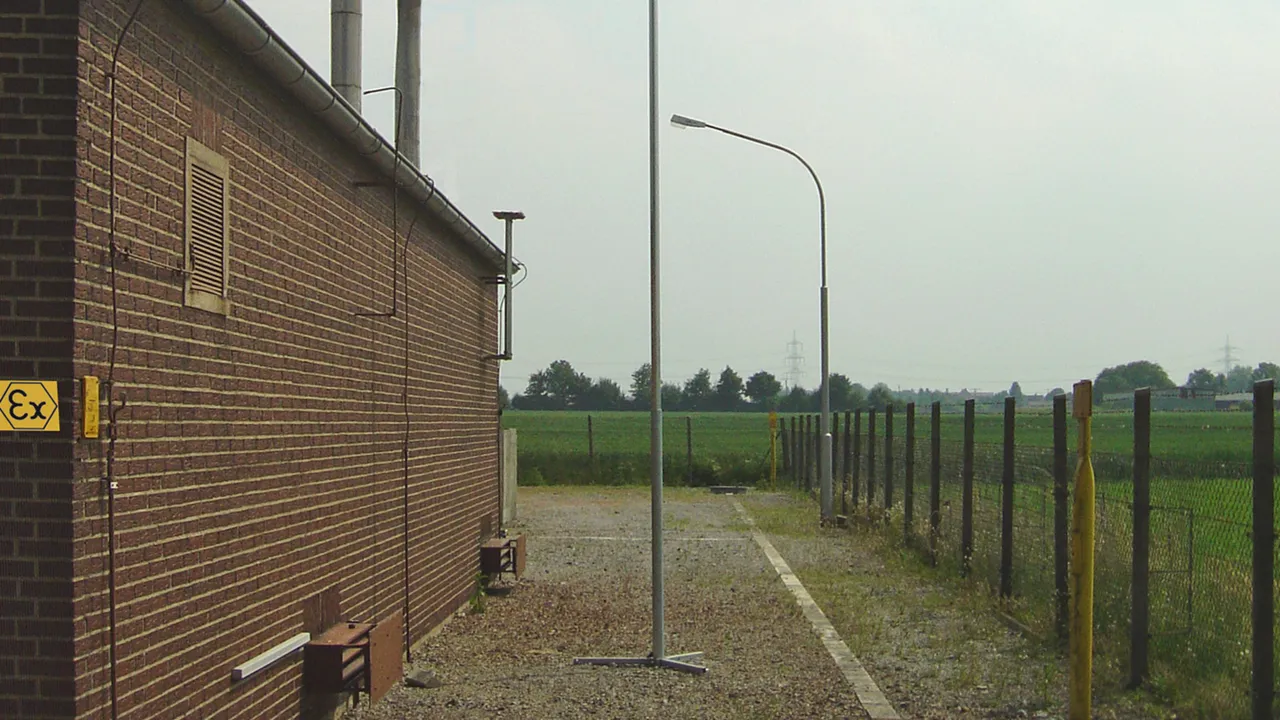

Air-termination mast to protect special facilities such as biogas plants, free field PV systems against direct lightning strike.
The masts are erected on a screw foundation.
No digging or foundation work.
Foundation will be screwed into the natural ground and will be fixed additionally with three earth rods Ø20 mm, length 1500 mm (Part No. 620 151) each, which have to be ordered separately.

The air-termination masts are designed according to Eurocode.
These calculations are based on a natural ground pressure of 0.02 kN/cm2 (e.g. loamy, sandy, gravel soil of medium density).

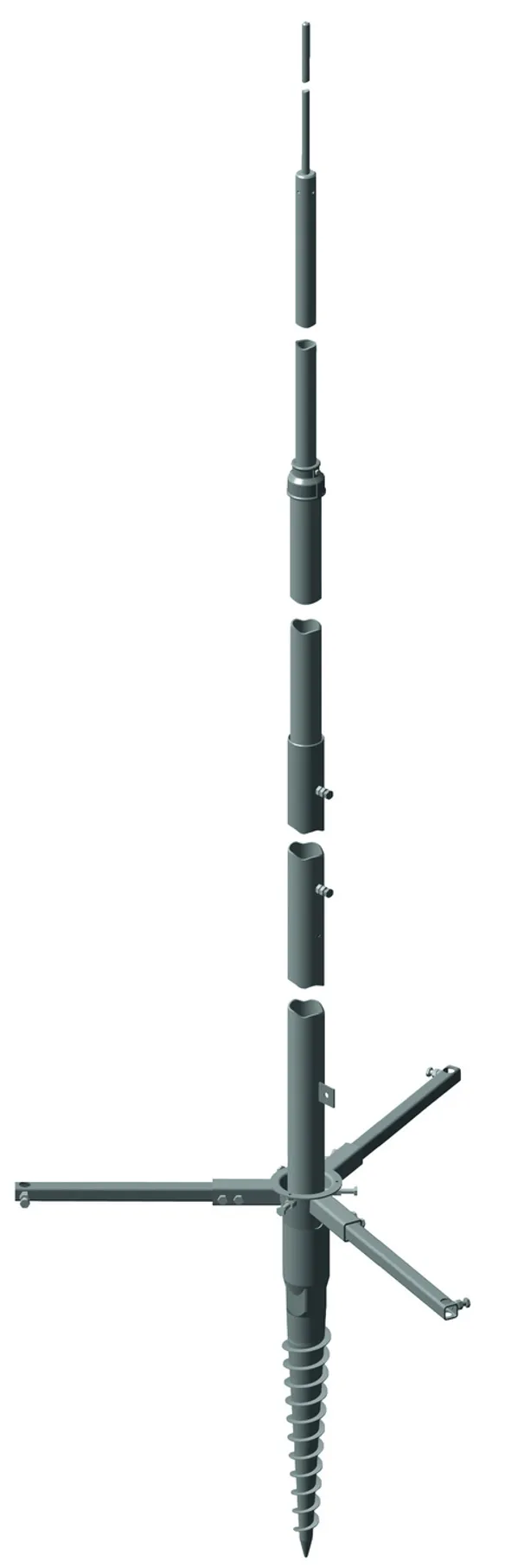

Components:
– Air-termination mast St/tZn and Al, tapered Ø70 / 60 / 40 mm
– Air-termination rod Al Ø22/16/10 mm, length 2500 mm or StSt Ø10 mm length 1000 mm
– Screw foundation St/tZn, length 800 mm with braces length 530 mm and M10 locking screws with lock nut
– Earth connection lug with bore Ø11 mm

Advantages:
– Easy erection due to tapered design St/tZn and aluminium
– If necessary, the air-termination mast can be easily removed from the screw foundation and put down

6 Produkty

Nr kat. 103121 TBM 6M SCFU STTZN AL

GTIN / EAN 4013364112711, Nr taryfy celnej (EU): 85389099, Waga brutto: 33.00 kg, Jednostka opakowaniowa: 1.00 szt.

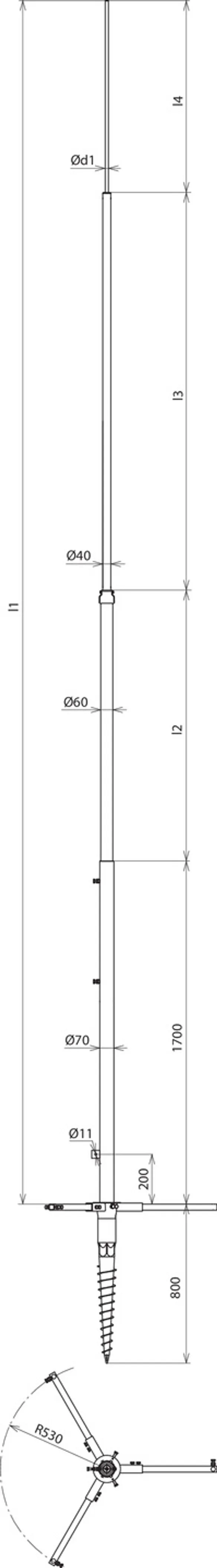

Rysunki

Informacje dodatkowe

Telescopic lightning protection mast with screw-in foundation, height: 6000 mm
Telescopic lightning protection mast with screw-in foundation to protect special facilities e.g. biogas
plants, free field PV installations against direct lightning strike.
No digging or foundation work is necessary.
Without special preparation the screw-in foundation is just screwed into the ground and fixed additionally with earth rods.
For additional fixing, 3 earth rods Ø20 mm, length of 1500 mm (Part No. 620 151), each per screw-in foundation are necessary (to be ordered separately).
The telescopic lightning protection masts with screw-in foundation are dimensioned according to Eurocode for a max. gust wind speed of 225 km/h.
Materiał: St/tZn / Al / NIRO
Wysokość nad poziomem gruntu: 6000 mm
Spełnia wymagania normy: EN 62561-(1+2)

Producent: DEHN
Typ: TBM 6M SCFU STTZN AL
Nr kat.: 103121
lub podobny.

Certyfikaty



Dane techniczne

Materiał St/tZn / Al / NIRO
Wysokość nad poziomem gruntu (l1) 6000 mm
Maksymalne obciążenie wiatrem 229 km/h
Spełnia wymagania normy EN 62561-(1+2)

Produkt 103121 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 103121.

Idź do sklepu internetowego

Nr kat. 103122 TBM 7M SCFU STTZN AL

GTIN / EAN 4013364112728, Nr taryfy celnej (EU): 85389099, Waga brutto: 33.20 kg, Jednostka opakowaniowa: 1.00 szt.

Rysunki

Informacje dodatkowe

Telescopic lightning protection mast with screw-in foundation, height: 7000 mm
Telescopic lightning protection mast with screw-in foundation to protect special facilities e.g. biogas
plants, free field PV installations against direct lightning strike.
No digging or foundation work is necessary.
Without special preparation the screw-in foundation is just screwed into the ground and fixed additionally with earth rods.
For additional fixing, 3 earth rods Ø20 mm, length of 1500 mm (Part No. 620 151), each per screw-in foundation are necessary (to be ordered separately).
The telescopic lightning protection masts with screw-in foundation are dimensioned according to Eurocode for a max. gust wind speed of 186 km/h.
Materiał: St/tZn / Al
Wysokość nad poziomem gruntu: 7000 mm
Spełnia wymagania normy: EN 62561-(1+2)

Producent: DEHN
Typ: TBM 7M SCFU STTZN AL
Nr kat.: 103122
lub podobny.

Certyfikaty



Dane techniczne

Materiał St/tZn / Al
Wysokość nad poziomem gruntu (l1) 7000 mm
Maksymalne obciążenie wiatrem 185 km/h
Spełnia wymagania normy EN 62561-(1+2)

Produkt 103122 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 103122.

Idź do sklepu internetowego

Nr kat. 103123 TBM 8M SCFU STTZN AL

GTIN / EAN 4013364112735, Nr taryfy celnej (EU): 85389099, Waga brutto: 37.60 kg, Jednostka opakowaniowa: 1.00 szt.

Rysunki

Informacje dodatkowe

Telescopic lightning protection mast with screw-in foundation, height: 8000 mm
Telescopic lightning protection mast with screw-in foundation to protect special facilities e.g. biogas
plants, free field PV installations against direct lightning strike.
No digging or foundation work is necessary.
Without special preparation the screw-in foundation is just screwed into the ground and fixed additionally with earth rods.
For additional fixing, 3 earth rods Ø20 mm, length of 1500 mm (Part No. 620 151), each per screw-in foundation are necessary (to be ordered separately).
The telescopic lightning protection masts with screw-in foundation are dimensioned according to Eurocode for a max. gust wind speed of 137 km/h.
Materiał: St/tZn / Al / StSt
Wysokość nad poziomem gruntu: 8000 mm
Spełnia wymagania normy: EN 62561-(1+2)

Producent: DEHN
Typ: TBM 8M SCFU STTZN AL
Nr kat.: 103123
lub podobny.

Certyfikaty



Dane techniczne

Materiał St/tZn / Al / StSt
Wysokość nad poziomem gruntu (l1) 8000 mm
Maksymalne obciążenie wiatrem 177 km/h
Spełnia wymagania normy EN 62561-(1+2)

Produkt 103123 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 103123.

Idź do sklepu internetowego

Nr kat. 103124 TBM 9M SCFU STTZN AL

GTIN / EAN 4013364112742, Nr taryfy celnej (EU): 85389099, Waga brutto: 37.60 kg, Jednostka opakowaniowa: 1.00 szt.

Rysunki

Informacje dodatkowe

Telescopic lightning protection mast with screw-in foundation, height: 9000 mm
Telescopic lightning protection mast with screw-in foundation to protect special facilities e.g. biogas
plants, free field PV installations against direct lightning strike.
No digging or foundation work is necessary.
Without special preparation the screw-in foundation is just screwed into the ground and fixed additionally with earth rods.
For additional fixing, 3 earth rods Ø20 mm, length of 1500 mm (Part No. 620 151), each per screw-in foundation are necessary (to be ordered separately).
The telescopic lightning protection masts with screw-in foundation are dimensioned according to Eurocode for a max. gust wind speed of 133 km/h.
Materiał: St/tZn / Al
Wysokość nad poziomem gruntu: 9000 mm
Spełnia wymagania normy: EN 62561-(1+2)

Producent: DEHN
Typ: TBM 9M SCFU STTZN AL
Nr kat.: 103124
lub podobny.

Certyfikaty



Dane techniczne

Materiał St/tZn / Al
Wysokość nad poziomem gruntu (l1) 9000 mm
Maksymalne obciążenie wiatrem 159 km/h
Spełnia wymagania normy EN 62561-(1+2)

Produkt 103124 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 103124.

Idź do sklepu internetowego

Nr kat. 103125 TBM 10M SCFU STTZN AL

GTIN / EAN 4013364112759, Nr taryfy celnej (EU): 85389099, Waga brutto: 42.20 kg, Jednostka opakowaniowa: 1.00 szt.

Rysunki

Informacje dodatkowe

Telescopic lightning protection mast with screw-in foundation, height: 10000 mm
Telescopic lightning protection mast with screw-in foundation to protect special facilities e.g. biogas
plants, free field PV installations against direct lightning strike.
No digging or foundation work is necessary.
Without special preparation the screw-in foundation is just screwed into the ground and fixed additionally with earth rods.
For additional fixing, 3 earth rods Ø20 mm, length of 1500 mm (Part No. 620 151), each per screw-in foundation are necessary (to be ordered separately).
The telescopic lightning protection masts with screw-in foundation are dimensioned according to Eurocode for a max. gust wind speed of 111 km/h.
Materiał: St/tZn / Al / StSt
Wysokość nad poziomem gruntu: 10000 mm
Spełnia wymagania normy: EN 62561-(1+2)

Producent: DEHN
Typ: TBM 10M SCFU STTZN AL
Nr kat.: 103125
lub podobny.

Certyfikaty



Dane techniczne

Materiał St/tZn / Al / StSt
Wysokość nad poziomem gruntu (l1) 10000 mm
Maksymalne obciążenie wiatrem 116 km/h
Spełnia wymagania normy EN 62561-(1+2)

Produkt 103125 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 103125.

Idź do sklepu internetowego

Nr kat. 103126 TBM 11M SCFU STTZN AL

GTIN / EAN 4013364112841, Nr taryfy celnej (EU): 85389099, Waga brutto: 42.40 kg, Jednostka opakowaniowa: 1.00 szt.

Rysunki

Informacje dodatkowe

Telescopic lightning protection mast with screw-in foundation, height: 11000 mm
Telescopic lightning protection mast with screw-in foundation to protect special facilities e.g. biogas
plants, free field PV installations against direct lightning strike.
No digging or foundation work is necessary.
Without special preparation the screw-in foundation is just screwed into the ground and fixed additionally with earth rods.
For additional fixing, 3 earth rods Ø20 mm, length of 1500 mm (Part No. 620 151), each per screw-in foundation are necessary (to be ordered separately).
The telescopic lightning protection masts with screw-in foundation are dimensioned according to Eurocode for a max. gust wind speed of 111 km/h.
Materiał: St/tZn / Al
Wysokość nad poziomem gruntu: 11000 mm
Spełnia wymagania normy: EN 62561-(1+2)

Producent: DEHN
Typ: TBM 11M SCFU STTZN AL
Nr kat.: 103126
lub podobny.

Certyfikaty



Dane techniczne

Materiał St/tZn / Al
Wysokość nad poziomem gruntu (l1) 11000 mm
Maksymalne obciążenie wiatrem 114 km/h
Spełnia wymagania normy EN 62561-(1+2)

Produkt 103126 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 103126.

Idź do sklepu internetowego
