Nr kat. 783033 PHE4 3.3 S

GTIN / EAN 4013364310162, Nr taryfy celnej (EU): 90303370, Waga brutto: 2.41 kg, Jednostka opakowaniowa: 1.00 szt.

Rysunki

Open PDF

Informacje dodatkowe

Certyfikaty

Dane techniczne

Nominal voltage (U_N )	3.3 kV

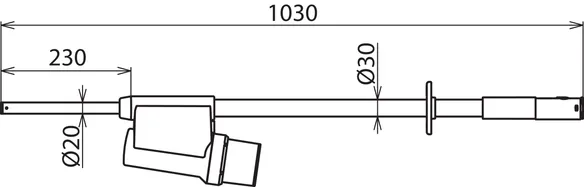

Total length (l_G )	1030 mm
Insertion depth (l_O )	230 mm
^*) all circuits including test prod

Nominal voltage (U_N )	3.3 kV
Type of voltage	a.c.
Frequency	50 Hz
Category	S
Total length (l_G )	1030 mm
Insertion depth (l_O )	230 mm
Length (handle) (l_H )	265 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +70 °C, climatic category N and W
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Sound level	> 67 dB(A) (visual indication and intermittent sound signal)
Self-testing element *)	Yes
Battery	Lithium AA 1.5 Volt
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
Diameter (insulating stick)	30 mm
^*) all circuits including test prod

Produkt 783033 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 783033.

Idź do sklepu internetowego

Nr kat. 783066 PHE4 6.6 S

GTIN / EAN 4013364310148, Nr taryfy celnej (EU): 90303370, Waga brutto: 2.19 kg, Jednostka opakowaniowa: 1.00 szt.

Rysunki

Open PDF

Informacje dodatkowe

Certyfikaty

Dane techniczne

Nominal voltage (U_N )	6.6 kV
Total length (l_G )	1030 mm
Insertion depth (l_O )	230 mm
^*) all circuits including test prod

Nominal voltage (U_N )	6.6 kV
Type of voltage	a.c.
Frequency	50 Hz
Category	S
Total length (l_G )	1030 mm
Insertion depth (l_O )	230 mm
Length (handle) (l_H )	265 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +70 °C, climatic category N and W
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Sound level	> 67 dB(A) (visual indication and intermittent sound signal)
Self-testing element *)	Yes
Battery	Lithium AA 1.5 Volt
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
Diameter (insulating stick)	30 mm
^*) all circuits including test prod

Produkt 783066 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 783066.

Idź do sklepu internetowego

Nr kat. 783011 PHE4 11 S

GTIN / EAN 4013364310131, Nr taryfy celnej (EU): 90303370, Waga brutto: 2.38 kg, Jednostka opakowaniowa: 1.00 szt.

Rysunki

Open PDF

Informacje dodatkowe

Certyfikaty

Dane techniczne

Nominal voltage (U_N )	11 kV
Total length (l_G )	1030 mm
Insertion depth (l_O )	230 mm
^*) all circuits including test prod

Nominal voltage (U_N )	11 kV
Type of voltage	a.c.
Frequency	50 Hz
Category	S
Total length (l_G )	1030 mm
Insertion depth (l_O )	230 mm
Length (handle) (l_H )	265 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +70 °C, climatic category N and W
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Sound level	> 67 dB(A) (visual indication and intermittent sound signal)
Self-testing element *)	Yes
Battery	Lithium AA 1.5 Volt
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
Diameter (insulating stick)	30 mm
^*) all circuits including test prod

Produkt 783011 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 783011.

Idź do sklepu internetowego

Nr kat. 783022 PHE4 22 S

GTIN / EAN 4013364310117, Nr taryfy celnej (EU): 90303370, Waga brutto: 2.27 kg, Jednostka opakowaniowa: 1.00 szt.

Rysunki

Open PDF

Informacje dodatkowe

Certyfikaty

Dane techniczne

Nominal voltage (U_N )	22 kV

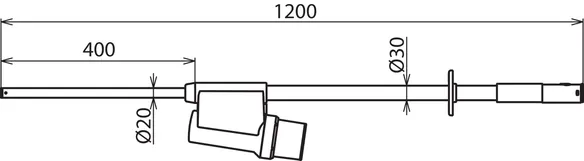

Total length (l_G )	1200 mm
Insertion depth (l_O )	400 mm
^*) all circuits including test prod

Nominal voltage (U_N )	22 kV
Type of voltage	a.c.
Frequency	50 Hz
Category	S
Total length (l_G )	1200 mm
Insertion depth (l_O )	400 mm
Length (handle) (l_H )	265 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +70 °C, climatic category N and W
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Sound level	> 67 dB(A) (visual indication and intermittent sound signal)
Self-testing element *)	Yes
Battery	Lithium AA 1.5 Volt
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
Diameter (insulating stick)	30 mm
^*) all circuits including test prod

Produkt 783022 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 783022.

Idź do sklepu internetowego

Nr kat. 783045 PHE4 33 S

GTIN / EAN 4013364310094, Nr taryfy celnej (EU): 90303370, Waga brutto: 2.48 kg, Jednostka opakowaniowa: 1.00 szt.

Rysunki

Open PDF

Informacje dodatkowe

Certyfikaty

Dane techniczne

Nominal voltage (U_N )	33 kV

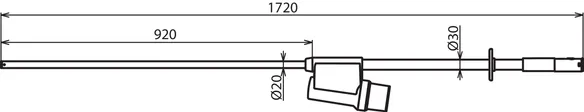

Total length (l_G )	1720 mm
Insertion depth (l_O )	920 mm
^*) all circuits including test prod

Nominal voltage (U_N )	33 kV
Type of voltage	a.c.
Frequency	50 Hz
Category	S
Total length (l_G )	1720 mm
Insertion depth (l_O )	920 mm
Length (handle) (l_H )	265 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +70 °C, climatic category N and W
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Sound level	> 67 dB(A) (visual indication and intermittent sound signal)
Self-testing element *)	Yes
Battery	Lithium AA 1.5 Volt
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
Diameter (insulating stick)	30 mm
^*) all circuits including test prod

Produkt 783045 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 783045.

Idź do sklepu internetowego

Nr kat. 783233 PHE4 3.3 11 S

GTIN / EAN 4013364310063, Nr taryfy celnej (EU): 90303370, Waga brutto: 2.37 kg, Jednostka opakowaniowa: 1.00 szt.

Rysunki

Open PDF

Informacje dodatkowe

Certyfikaty

Dane techniczne

Nominal voltage (U_N )	3.3 ... 11 kV

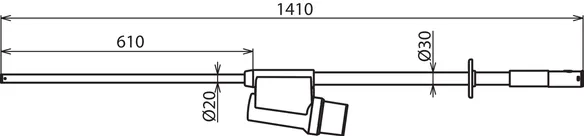

Total length (l_G )	1410 mm
Insertion depth (l_O )	610 mm
^*) all circuits including test prod

Nominal voltage (U_N )	3.3 ... 11 kV
Type of voltage	a.c.
Frequency	50 Hz
Category	S
Total length (l_G )	1410 mm
Insertion depth (l_O )	610 mm
Length (handle) (l_H )	265 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +70 °C, climatic category N and W
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Sound level	> 67 dB(A) (visual indication and intermittent sound signal)
Self-testing element *)	Yes
Battery	Lithium AA 1.5 Volt
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
Diameter (insulating stick)	30 mm
^*) all circuits including test prod

Produkt 783233 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 783233.

Idź do sklepu internetowego

Nr kat. 783243 PHE4 6.6 22 S

GTIN / EAN 4013364310018, Nr taryfy celnej (EU): 90303370, Waga brutto: 2.47 kg, Jednostka opakowaniowa: 1.00 szt.

Rysunki

Open PDF

Informacje dodatkowe

Certyfikaty

Dane techniczne

Nominal voltage (U_N )	6.6 ... 22 kV

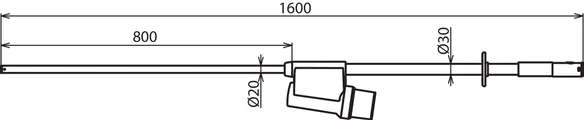

Total length (l_G )	1600 mm
Insertion depth (l_O )	800 mm
^*) all circuits including test prod

Nominal voltage (U_N )	6.6 ... 22 kV
Type of voltage	a.c.
Frequency	50 Hz
Category	S
Total length (l_G )	1600 mm
Insertion depth (l_O )	800 mm
Length (handle) (l_H )	265 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +70 °C, climatic category N and W
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Sound level	> 67 dB(A) (visual indication and intermittent sound signal)
Self-testing element *)	Yes
Battery	Lithium AA 1.5 Volt
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
Diameter (insulating stick)	30 mm
^*) all circuits including test prod

Produkt 783243 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 783243.

Idź do sklepu internetowego

Nr kat. 783255 PHE4 11 33 S

GTIN / EAN 4013364309982, Nr taryfy celnej (EU): 90303370, Waga brutto: 2.53 kg, Jednostka opakowaniowa: 1.00 szt.

Rysunki

Open PDF

Informacje dodatkowe

Certyfikaty

Dane techniczne

Nominal voltage (U_N )	11 ... 33 kV
Total length (l_G )	1720 mm
Insertion depth (l_O )	920 mm
^*) all circuits including test prod

Nominal voltage (U_N )	11 ... 33 kV
Type of voltage	a.c.
Frequency	50 Hz
Category	S
Total length (l_G )	1720 mm
Insertion depth (l_O )	920 mm
Length (handle) (l_H )	265 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +70 °C, climatic category N and W
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Sound level	> 67 dB(A) (visual indication and intermittent sound signal)
Self-testing element *)	Yes
Battery	Lithium AA 1.5 Volt
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
Diameter (insulating stick)	30 mm
^*) all circuits including test prod

Produkt 783255 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 783255.

Idź do sklepu internetowego

Nr kat. 783511 PHE4 U 6.6 11 S

GTIN / EAN 4013364309937, Nr taryfy celnej (EU): 90303370, Waga brutto: 2.19 kg, Jednostka opakowaniowa: 1.00 szt.

Rysunki

Open PDF

Informacje dodatkowe

Certyfikaty

Dane techniczne

Nominal voltage (U_N )	6.6 / 11 kV
Total length (l_G )	1030 mm
Insertion depth (l_O )	230 mm
^*) all circuits including test prod

Nominal voltage (U_N )	6.6 / 11 kV
Type of voltage	a.c.
Frequency	50 Hz
Category	S
Total length (l_G )	1030 mm
Insertion depth (l_O )	230 mm
Length (handle) (l_H )	265 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +70 °C, climatic category N and W
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Sound level	> 67 dB(A) (visual indication and intermittent sound signal)
Self-testing element *)	Yes
Battery	Lithium AA 1.5 Volt
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
Diameter (insulating stick)	30 mm
^*) all circuits including test prod

Produkt 783511 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 783511.

Idź do sklepu internetowego

Nr kat. 783533 PHE4 U 3.3 33 S

GTIN / EAN 4013364309920, Nr taryfy celnej (EU): 90303370, Waga brutto: 2.53 kg, Jednostka opakowaniowa: 1.00 szt.

Rysunki

Open PDF

Informacje dodatkowe

Certyfikaty

Dane techniczne

Nominal voltage (U_N )	3.3 ... 11 / 11 ... 33 kV
Total length (l_G )	1720 mm
Insertion depth (l_O )	920 mm
^*) all circuits including test prod

Nominal voltage (U_N )	3.3 ... 11 / 11 ... 33 kV
Type of voltage	a.c.
Frequency	50 Hz
Category	S
Total length (l_G )	1720 mm
Insertion depth (l_O )	920 mm
Length (handle) (l_H )	265 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +70 °C, climatic category N and W
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Sound level	> 67 dB(A) (visual indication and intermittent sound signal)
Self-testing element *)	Yes
Battery	Lithium AA 1.5 Volt
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
Diameter (insulating stick)	30 mm
^*) all circuits including test prod

Produkt 783533 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 783533.

Idź do sklepu internetowego

Wyniki wyszukiwania produktów (0)

Wyniki wyszukiwania zawartości (0)

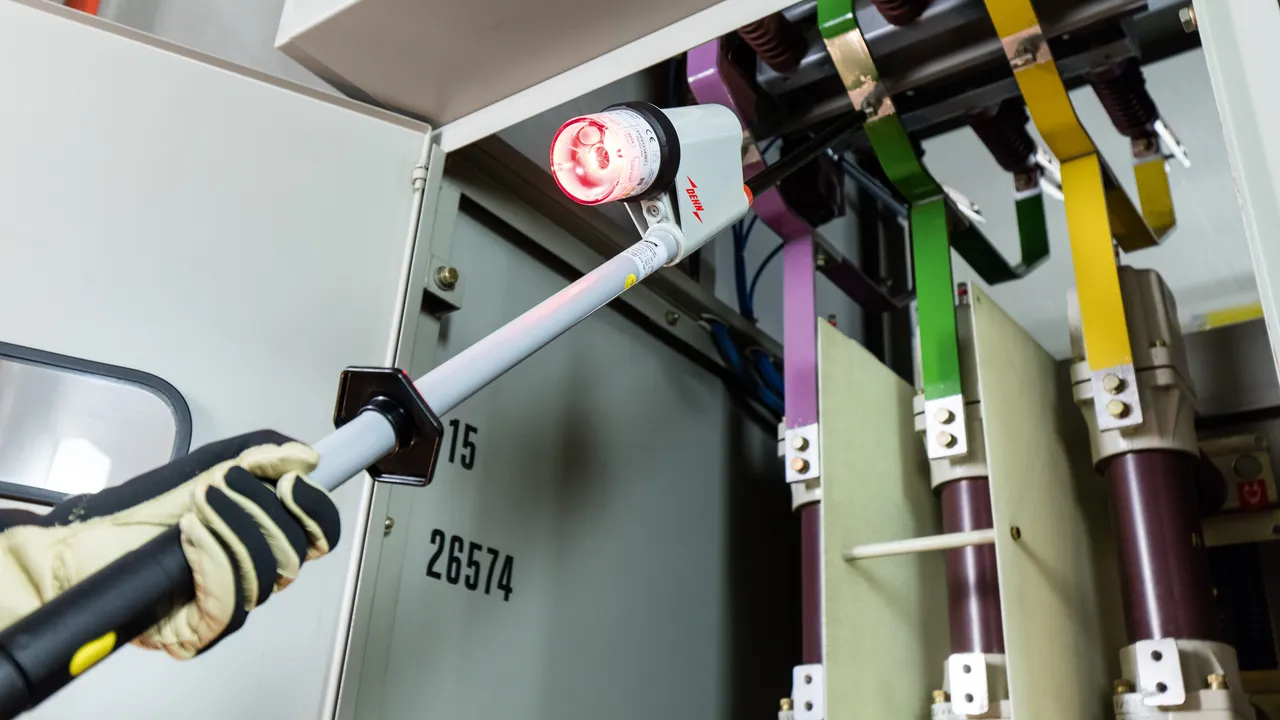

Wskaźnik napięcia PHE4 (brytyjski poziom napięcia)

Napięcia znamionowe do 33 kV / 50 Hz, gwint M12

Nr kat. 783033 PHE4 3.3 S

Produkt 783033 został dodany do notatnika.

Do koszyka dodano produkt 783033.

Nr kat. 783066 PHE4 6.6 S

Produkt 783066 został dodany do notatnika.

Do koszyka dodano produkt 783066.

Nr kat. 783011 PHE4 11 S

Produkt 783011 został dodany do notatnika.

Do koszyka dodano produkt 783011.

Nr kat. 783022 PHE4 22 S

Produkt 783022 został dodany do notatnika.

Do koszyka dodano produkt 783022.

Nr kat. 783045 PHE4 33 S

Produkt 783045 został dodany do notatnika.

Do koszyka dodano produkt 783045.

Zakres napięcia znamionowego do 33 kV / 50 Hz, gwint M12

Nr kat. 783233 PHE4 3.3 11 S

Produkt 783233 został dodany do notatnika.

Do koszyka dodano produkt 783233.

Nr kat. 783243 PHE4 6.6 22 S

Produkt 783243 został dodany do notatnika.

Do koszyka dodano produkt 783243.

Nr kat. 783255 PHE4 11 33 S

Produkt 783255 został dodany do notatnika.

Do koszyka dodano produkt 783255.

Zakres napięcia znamionowego do 33 kV / 50 Hz, zmienny zakres, gwint M12

Nr kat. 783511 PHE4 U 6.6 11 S

Produkt 783511 został dodany do notatnika.

Do koszyka dodano produkt 783511.

Nr kat. 783533 PHE4 U 3.3 33 S

Produkt 783533 został dodany do notatnika.

Do koszyka dodano produkt 783533.
