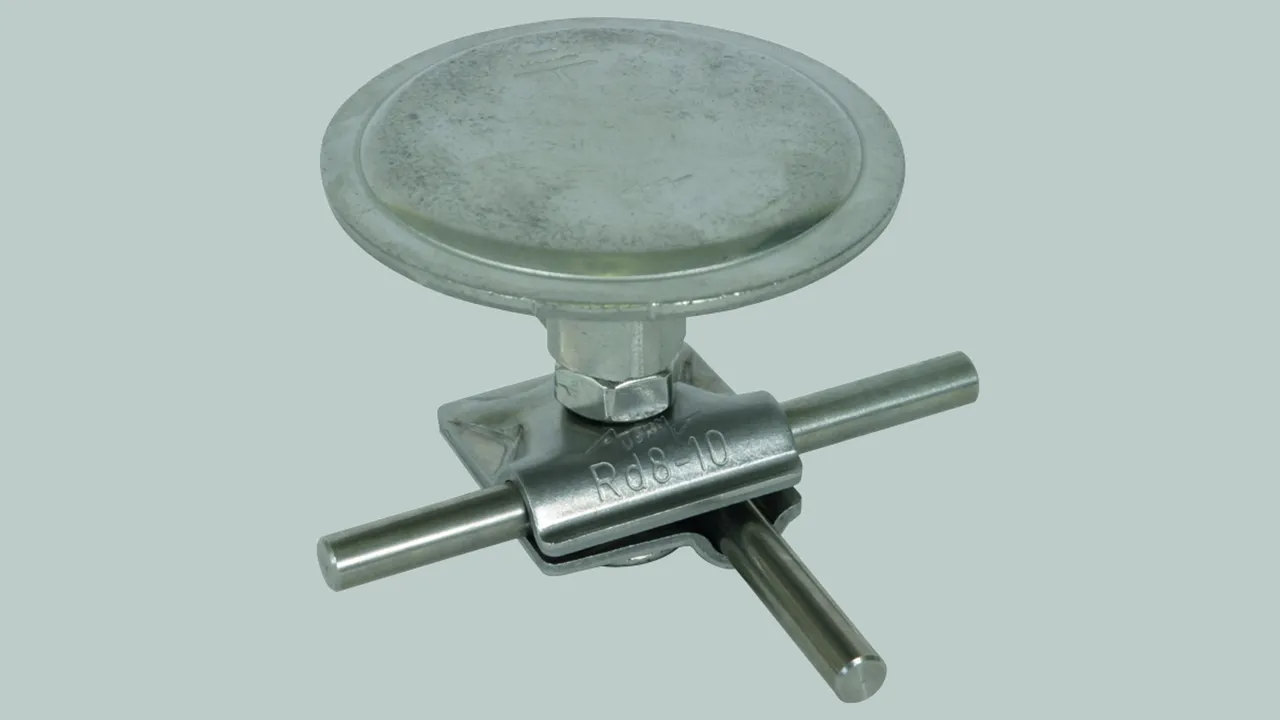

Air-Termination Stud
:quality(98)/www.dehn.pl/store/f/62769142/HDVORSCHAU/108009a2_16-9.jpg)
:quality(98)/www.dehn.pl/store/f/62769142/HDVORSCHAU/108009a2_16-9.jpg)
For installing meshed air-termination systems, for accessible flat roofs, e.g. parking decks.
The air-termination stud and the conductors may either be installed in concrete or in the joints between the decks.
The air-termination stud and the conductors may either be installed in concrete or in the joints between the decks.
Nr kat. 108009 FP D80 ET70 8.10 V2A
GTIN / EAN 4013364133686, Nr taryfy celnej (EU): 85389099, Waga brutto: 298.40 g, Jednostka opakowaniowa: 10.00 pc(s)
Wcześniejszy produkt:quality(98)/www.dehn.pl/store/f/62769156/HDVORSCHAU/108009.jpg)
:quality(98)/www.dehn.pl/store/f/62769156/HDVORSCHAU/108009.jpg)
:quality(98)/www.dehn.pl/store/f/62769157/HDVORSCHAU/108009m_D.jpg)
:quality(98)/www.dehn.pl/store/f/62769157/HDVORSCHAU/108009m_D.jpg)
Dane techniczne
| Material of clamp | StSt |
| Material of stud | StSt |
| Connection Rd | 8-10 mm |
| Installation depth | min. 70 mm |
| Levelling range | 18 mm |
