Nr kat. 900780 SPD+POP 2 255 C25

GTIN / EAN 4013364156203, Nr taryfy celnej (EU): 85363030, Waga brutto: 404.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

Surge arrester SPD+POP 2 255 C25
Compact surge arrester for transients and
mains-frequency surges with integrated
miniature circuit breaker
Type 2 SPD according to EN 61643-11,
POP according to EN 50550
Comprehensive protection against transients and
mains-frequency surges
Prewired complete unit, the individual devices
do not have to be additionally wired
Number of poles 1P + N
Tripping characteristic MCB / nominal current MCB C 25 A
Max. continuous operating voltage: 275 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current: 5 kA / 20 kA
Energy coordination according to
EN 62305-4 with type 1 and
type 3 arresters of the Red/Line series
SPD monitoring: Thermo Dynamic Control
Operating state and fault indication
DIN rail mounted device according to DIN 43880, 4 modules

Brand: DEHN
Type: SPD+POP 2 255 C25
Part No.: 900780
or equivalent.

Certyfikaty

Dane techniczne

General
Number of poles	1P + N
Nominal a.c. voltage (U_N )	230 V
SPD
Nominal discharge current (8/20 µs) [L-N] (I_n )	5 kA
POP
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	25 A

General
Power supply system	single-phase TT / TN system
Number of poles	1P + N
Nominal a.c. voltage (U_N )	230 V
Nominal frequency (f_N )	50 Hz
Operating temperature range (T_U )	-25 °C ... +60 °C
Cross-sectional area (L, N) (min.)	2.5 mm²solid / flexible
Cross-sectional area (L, N) (max.)	16 mm²flexible / 25 mm² stranded
Cross-sectional area (PE) (min.)	0.75 mm²solid / flexible
Cross-sectional area (PE) (max.)	6 mm² flexible / 10 mm²solid
Degree of protection protection	IP 20
Capacity	4 module(s), DIN 43880
Mounting	35 mm DIN rails acc. to EN 60715
SPD
SPD according to EN 61643-11 / ... IEC 61643-1/-11	type 2
SPD according to IEC 61643-11	class II
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V
Follow current extinguishing capability [N-PE] (I_fi )	100 A
Nominal discharge current (8/20 µs) [L-N] (I_n )	5 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [L-N] (I_max )	15 kA
Max. discharge current (8/20 µs) [N-PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.5 kV
Protective conductor current (I_PE )	≤ 5 µA
Response time [L-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	MCB C 63 A
Short-circuit withstand capability (I_SCCR )	6 kA
Temporary overvoltage (TOV) L-N (U_T )	335 V / 5 s
Temporary overvoltage (TOV) [N-PE] (U_T )	1200 V / 200 ms
TOV characteristic	withstand
Operating state / fault indication	green / red
Number of ports	1
Enclosure material	thermoplastic, grey, UL 94 V-0
Place of installation	indoor installation
POP
Tested to	EN 50550
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
Tripping time at 275 V a.c.	8 s
Tripping time at 400 V a.c.	120 ms
Max. current at 275 V a.c.	0.4 A
Max. current at 400 V a.c.	0.6 A
Power consumption	0.7 VA
Trip indicator	red
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	25 A
Rated switching capacity (I_cn) acc. to EN 60898	6 kA

Produkt 900780 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 900780.

Idź do sklepu internetowego

Nr kat. 900781 SPD+POP 2 255 C32

GTIN / EAN 4013364156210, Nr taryfy celnej (EU): 85363030, Waga brutto: 425.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

Surge arrester SPD+POP 2 255 C32
Compact surge arrester for transients and mains-frequency
surges with integrated miniature circuit breaker
Type 2 SPD according to EN 61643-11, POP according to EN 50550
Comprehensive protection against transients and
mains-frequency surges
Prewired complete unit, the individual devices do not
have to be additionally wired
Number of poles 1P + N
Tripping characteristic MCB / nominal current MCB C 32 A
Max. continuous operating voltage: 275 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current: 5 kA / 20 kA
Energy coordination according to
EN 62305-4 with type 1 and
type 3 arresters of the Red/Line series
SPD monitoring: Thermo Dynamic Control
Operating state and fault indication
DIN rail mounted device according to DIN 43880, 4 modules

Brand: DEHN
Type: SPD+POP 2 255 C32
Part No.: 900781
or equivalent.

Certyfikaty

Dane techniczne

General
Number of poles	1P + N
Nominal a.c. voltage (U_N )	230 V
SPD
Nominal discharge current (8/20 µs) [L-N] (I_n )	5 kA
POP
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	32 A

General
Power supply system	single-phase TT / TN system
Number of poles	1P + N
Nominal a.c. voltage (U_N )	230 V
Nominal frequency (f_N )	50 Hz
Operating temperature range (T_U )	-25 °C ... +60 °C
Cross-sectional area (L, N) (min.)	2.5 mm² solid / flexible
Cross-sectional area (L, N) (max.)	16 mm² flexible / 25 mm² stranded
Cross-sectional area (PE) (min.)	0.75 mm² solid / flexible
Cross-sectional area (PE) (max.)	6 mm² flexible / 10 mm² solid
Degree of protection protection	IP 20
Capacity	4 module(s), DIN 43880
Mounting	35 mm DIN rails acc. to EN 60715
SPD
SPD according to EN 61643-11 / ... IEC 61643-1/-11	type 2
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V
Follow current extinguishing capability [N-PE] (I_fi )	100 A
Nominal discharge current (8/20 µs) [L-N] (I_n )	5 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [L-N] (I_max )	15 kA
Max. discharge current (8/20 µs) [N-PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.5 kV
Protective conductor current (I_PE )	≤ 5 µA
Response time [L-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	MCB C 63 A
Short-circuit withstand capability (I_SCCR )	6 kA
Temporary overvoltage (TOV) L-N (U_T )	335 V / 5 s
Temporary overvoltage (TOV) [N-PE] (U_T )	1200 V / 200 ms
TOV characteristic	withstand
Operating state / fault indication	green / red
Number of ports	1
Enclosure material	thermoplastic, grey, UL 94 V-0
Place of installation	indoor installation
POP
Tested to	EN 50550
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
Tripping time at 275 V a.c.	8 s
Tripping time at 400 V a.c.	120 ms
Max. current at 275 V a.c.	0.4 A
Max. current at 400 V a.c.	0.6 A
Power consumption	0.7 VA
Trip indicator	red
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	32 A
Rated switching capacity (I_cn) acc. to EN 60898	6 kA

Produkt 900781 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 900781.

Idź do sklepu internetowego

Nr kat. 900782 SPD+POP 2 255 C40

GTIN / EAN 4013364156227, Nr taryfy celnej (EU): 85363030, Waga brutto: 424.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

Surge arrester SPD+POP 2 255 C40
Compact surge arrester for transients and mains-frequency
surges with integrated miniature circuit breaker
Type 2 SPD according to EN 61643-11, POP according to EN 50550
Comprehensive protection against transients and
mains-frequency surges
Prewired complete unit, the individual devices do not have to
be additionally wired
Number of poles 1P + N
Tripping characteristic MCB / nominal current MCB C 40 A
Max. continuous operating voltage: 275 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current: 5 kA / 20 kA
Energy coordination according to
EN 62305-4 with type 1 and
type 3 arresters of the Red/Line series
SPD monitoring: Thermo Dynamic Control
Operating state and fault indication
DIN rail mounted device according to DIN 43880, 4 modules

Brand: DEHN
Type: SPD+POP 2 255 C40
Part No.: 900782
or equivalent.

Certyfikaty

Dane techniczne

General
Number of poles	1P + N
Nominal a.c. voltage (U_N )	230 V
SPD
Nominal discharge current (8/20 µs) [L-N] (I_n )	5 kA
POP
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	40 A

General
Power supply system	single-phase TT / TN system
Number of poles	1P + N
Nominal a.c. voltage (U_N )	230 V
Nominal frequency (f_N )	50 Hz
Operating temperature range (T_U )	-25 °C ... +60 °C
Cross-sectional area (L, N) (min.)	2.5 mm² solid / flexible
Cross-sectional area (L, N) (max.)	16 mm² flexible / 25 mm² stranded
Cross-sectional area (PE) (min.)	0.75 mm² solid / flexible
Cross-sectional area (PE) (max.)	6 mm² flexible / 10 mm² solid
Degree of protection protection	IP 20
Capacity	4 module(s), DIN 43880
Mounting	35 mm DIN rails acc. to EN 60715
SPD
SPD according to EN 61643-11 / ... IEC 61643-1/-11	type 2
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V
Follow current extinguishing capability [N-PE] (I_fi )	100 A
Nominal discharge current (8/20 µs) [L-N] (I_n )	5 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [L-N] (I_max )	15 kA
Max. discharge current (8/20 µs) [N-PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.5 kV
Protective conductor current (I_PE )	≤ 5 µA
Response time [L-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	MCB C 63 A
Short-circuit withstand capability (I_SCCR )	6 kA
Temporary overvoltage (TOV) L-N (U_T )	335 V / 5 s
Temporary overvoltage (TOV) [N-PE] (U_T )	1200 V / 200 ms
TOV characteristic	withstand
Operating state / fault indication	green / red
Number of ports	1
Enclosure material	thermoplastic, grey, UL 94 V-0
Place of installation	indoor installation
POP
Tested to	EN 50550
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
Tripping time at 275 V a.c.	8 s
Tripping time at 400 V a.c.	120 ms
Max. current at 275 V a.c.	0.4 A
Max. current at 400 V a.c.	0.6 A
Power consumption	0.7 VA
Trip indicator	red
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	40 A
Rated switching capacity (I_cn) acc. to EN 60898	6 kA

Produkt 900782 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 900782.

Idź do sklepu internetowego

Nr kat. 900785 SPD+POP 4 255 C25

GTIN / EAN 4013364156234, Nr taryfy celnej (EU): 85363030, Waga brutto: 730.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

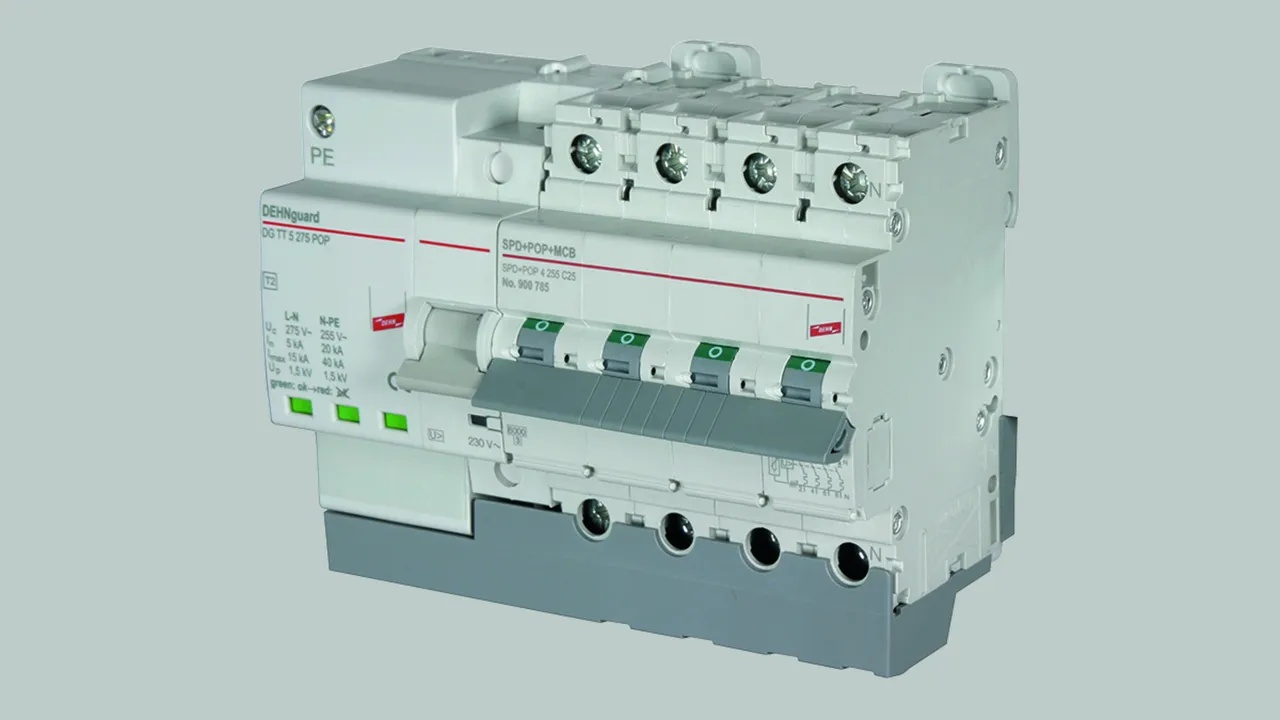

Surge arrester SPD+POP 4 255 C25
Compact surge arrester for transients and mains-frequency surges with integrated miniature circuit breaker
Type 2 SPD according to EN 61643-11, POP according to EN 50550
Comprehensive protection against transients and mains-frequency surges
Prewired complete unit, the individual devices do not have to be additionally wired
Number of poles 3P + N
Tripping characteristic MCB / nominal current MCB C 25 A
Max. continuous operating voltage: 275 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current: 5 kA / 20 kA
Energy coordination according to
EN 62305-4 with type 1 and
type 3 arresters of the Red/Line series
SPD monitoring: Thermo Dynamic Control
Operating state and fault indication
DIN rail mounted device according to DIN 43880, 7 modules

Brand: DEHN
Type: SPD+POP 4 255 C25
Part No.: 900785
or equivalent.

Certyfikaty

Dane techniczne

General
Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V
SPD
Nominal discharge current (8/20 µs) [L-N] (I_n )	5 kA
POP
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	25 A

General
Power supply system	three-phase TT / TN system
Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V
Nominal frequency (f_N )	50 Hz
Operating temperature range (T_U )	-25 °C ... +60 °C
Cross-sectional area (L1, L2, L3, N) (min.)	2.5 mm² solid / flexible
Cross-sectional area (L1, L2, L3, N) (max.)	16 mm² flexible / 25 mm² stranded
Cross-sectional area (PE) (min.)	0.75 mm² solid / flexible
Cross-sectional area (PE) (max.)	6 mm²flexible / 10 mm² solid
Degree of protection protection	IP 20
Capacity	7 module(s), DIN 43880
Mounting	35 mm DIN rails acc. to EN 60715
SPD
SPD according to EN 61643-11 / ... IEC 61643-1/-11	type 2
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V
Follow current extinguishing capability [N-PE] (I_fi )	100 A
Nominal discharge current (8/20 µs) [L-N] (I_n )	5 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [L-N] (I_max )	15 kA
Max. discharge current (8/20 µs) [N-PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.5 kV
Protective conductor current (I_PE )	≤ 5 µA
Response time [L-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	MCB C 63 A
Short-circuit withstand capability (I_SCCR )	6 kA
Temporary overvoltage (TOV) L-N (U_T )	335 V / 5 s
Temporary overvoltage (TOV) [N-PE] (U_T )	1200 V / 200 ms
TOV characteristic	withstand
Operating state / fault indication	green / red
Number of ports	1
Enclosure material	thermoplastic, grey, UL 94 V-0
Place of installation	indoor installation
POP
Tested to	EN 50550
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
Tripping time at 275 V a.c.	8 s
Tripping time at 400 V a.c.	120 ms
Max. current at 275 V a.c.	0.4 A
Max. current at 400 V a.c.	0.6 A
Power consumption	0.7 VA
Trip indicator	red
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	25 A
Rated switching capacity (I_cn) acc. to EN 60898	6 kA

Produkt 900785 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 900785.

Idź do sklepu internetowego

Nr kat. 900786 SPD+POP 4 255 C32

GTIN / EAN 4013364156241, Nr taryfy celnej (EU): 85363030, Waga brutto: 763.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

Surge arrester SPD+POP 4 255 C32
Compact surge arrester for transients and mains-frequency surges with integrated miniature circuit breaker
Type 2 SPD according to EN 61643-11, POP according to EN 50550
Comprehensive protection against transients and mains-frequency surges
Prewired complete unit, the individual devices do not have to be additionally wired
Number of poles 3P + N
Tripping characteristic MCB / nominal current MCB C 32 A
Max. continuous operating voltage: 275 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current: 5 kA / 20 kA
Energy coordination according to
EN 62305-4 with type 1 and
type 3 arresters of the Red/Line series
SPD monitoring: Thermo Dynamic Control
Operating state and fault indication
DIN rail mounted device according to DIN 43880, 7 modules

Brand: DEHN
Type: SPD+POP 4 255 C32
Part No.: 900786
or equivalent.

Certyfikaty

Dane techniczne

General
Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V
SPD
Nominal discharge current (8/20 µs) [L-N] (I_n )	5 kA
POP
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	32 A

General
Power supply system	three-phase TT / TN system
Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V
Nominal frequency (f_N )	50 Hz
Operating temperature range (T_U )	-25 °C ... +60 °C
Cross-sectional area (L1, L2, L3, N) (min.)	2.5 mm² solid / flexible
Cross-sectional area (L1, L2, L3, N) (max.)	16 mm² flexible / 25 mm² stranded
Cross-sectional area (PE) (min.)	0.75 mm² solid / flexible
Cross-sectional area (PE) (max.)	6 mm² flexible / 10 mm² solid
Degree of protection protection	IP 20
Capacity	7 module(s), DIN 43880
Mounting	35 mm DIN rails acc. to EN 60715
SPD
SPD according to EN 61643-11 / ... IEC 61643-1/-11	type 2
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V
Follow current extinguishing capability [N-PE] (I_fi )	100 A
Nominal discharge current (8/20 µs) [L-N] (I_n )	5 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [L-N] (I_max )	15 kA
Max. discharge current (8/20 µs) [N-PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.5 kV
Protective conductor current (I_PE )	≤ 5 µA
Response time [L-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	MCB C 63 A
Short-circuit withstand capability (I_SCCR )	6 kA
Temporary overvoltage (TOV) L-N (U_T )	335 V / 5 s
Temporary overvoltage (TOV) [N-PE] (U_T )	1200 V / 200 ms
TOV characteristic	withstand
Operating state / fault indication	green / red
Number of ports	1
Enclosure material	thermoplastic, grey, UL 94 V-0
Place of installation	indoor installation
POP
Tested to	EN 50550
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
Tripping time at 275 V a.c.	8 s
Tripping time at 400 V a.c.	120 ms
Max. current at 275 V a.c.	0.4 A
Max. current at 400 V a.c.	0.6 A
Power consumption	0.7 VA
Trip indicator	red
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	32 A
Rated switching capacity (I_cn) acc. to EN 60898	6 kA

Produkt 900786 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 900786.

Idź do sklepu internetowego

Nr kat. 900787 SPD+POP 4 255 C40

GTIN / EAN 4013364156258, Nr taryfy celnej (EU): 85363030, Waga brutto: 769.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

Surge arrester SPD+POP 4 255 C40
Compact surge arrester for transients and mains-frequency surges with integrated miniature circuit breaker
Type 2 SPD according to EN 61643-11, POP according to EN 50550
Comprehensive protection against transients and mains-frequency surges
Prewired complete unit, the individual devices do not have to be additionally wired
Number of poles 3P + N
Tripping characteristic MCB / nominal current MCB C 40 A
Max. continuous operating voltage: 275 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current: 5 kA / 20 kA
Energy coordination according to
EN 62305-4 with type 1 and
type 3 arresters of the Red/Line series
SPD monitoring: Thermo Dynamic Control
Operating state and fault indication
DIN rail mounted device according to DIN 43880, 7 modules

Brand: DEHN
Type: SPD+POP 4 255 C40
Part No.: 900787
or equivalent.

Certyfikaty

Dane techniczne

General
Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V
SPD
Nominal discharge current (8/20 µs) [L-N] (I_n )	5 kA
POP
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	40 A

General
Power supply system	three-phase TT / TN system
Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V
Nominal frequency (f_N )	50 Hz
Operating temperature range (T_U )	-25 °C ... +60 °C
Cross-sectional area (L1, L2, L3, N) (min.)	2.5 mm² solid / flexible
Cross-sectional area (L1, L2, L3, N) (max.)	16 mm² flexible / 25 mm²stranded
Cross-sectional area (PE) (min.)	0.75 mm² solid / flexible
Cross-sectional area (PE) (max.)	6 mm² flexible / 10 mm² solid
Degree of protection protection	IP 20
Capacity	7 module(s), DIN 43880
Mounting	35 mm DIN rails acc. to EN 60715
SPD
SPD according to EN 61643-11 / ... IEC 61643-1/-11	type 2
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V
Follow current extinguishing capability [N-PE] (I_fi )	100 A
Nominal discharge current (8/20 µs) [L-N] (I_n )	5 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [L-N] (I_max )	15 kA
Max. discharge current (8/20 µs) [N-PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.5 kV
Protective conductor current (I_PE )	≤ 5 µA
Response time [L-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	MCB C 63 A
Short-circuit withstand capability (I_SCCR )	6 kA
Temporary overvoltage (TOV) L-N (U_T )	335 V / 5 s
Temporary overvoltage (TOV) [N-PE] (U_T )	1200 V / 200 ms
TOV characteristic	withstand
Operating state / fault indication	green / red
Number of ports	1
Enclosure material	thermoplastic, grey, UL 94 V-0
Place of installation	indoor installation
POP
Tested to	EN 50550
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
Tripping time at 275 V a.c.	8 s
Tripping time at 400 V a.c.	120 ms
Max. current at 275 V a.c.	0.4 A
Max. current at 400 V a.c.	0.6 A
Power consumption	0.7 VA
Trip indicator	red
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	40 A
Rated switching capacity (I_cn) acc. to EN 60898	6 kA

Produkt 900787 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 900787.

Idź do sklepu internetowego

Nr kat. 900788 SPD+POP 4 255 C63

GTIN / EAN 4013364156265, Nr taryfy celnej (EU): 85363030, Waga brutto: 773.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

Surge arrester SPD+POP 4 255 C63
Compact surge arrester for transients and mains-frequency surges with integrated miniature circuit breaker
Type 2 SPD according to EN 61643-11, POP according to EN 50550
Comprehensive protection against transients and mains-frequency surges
Prewired complete unit, the individual devices do not have to be additionally wired
Number of poles 3P + N
Tripping characteristic MCB / nominal current MCB C 63 A
Max. continuous operating voltage: 275 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current: 5 kA / 20 kA
Energy coordination according to
EN 62305-4 with type 1 and
type 3 arresters of the Red/Line series
SPD monitoring: Thermo Dynamic Control
Operating state and fault indication
DIN rail mounted device according to DIN 43880, 7 modules

Brand: DEHN
Type: SPD+POP 4 255 C63
Part No.: 900788
or equivalent.

Certyfikaty

Dane techniczne

General
Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V
SPD
Nominal discharge current (8/20 µs) [L-N] (I_n )	5 kA
POP
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	63 A

General
Power supply system	three-phase TT / TN system
Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V
Nominal frequency (f_N )	50 Hz
Operating temperature range (T_U )	-25 °C ... +60 °C
Cross-sectional area (L1, L2, L3, N) (min.)	2.5 mm² solid / flexible
Cross-sectional area (L1, L2, L3, N) (max.)	16 mm² flexible / 25 mm² stranded
Cross-sectional area (PE) (min.)	0.75 mm² solid / flexible
Cross-sectional area (PE) (max.)	6 mm² flexible / 10 mm² solid
Degree of protection protection	IP 20
Capacity	7 module(s), DIN 43880
Mounting	35 mm DIN rails acc. to EN 60715
SPD
SPD according to EN 61643-11 / ... IEC 61643-1/-11	type 2
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V
Follow current extinguishing capability [N-PE] (I_fi )	100 A
Nominal discharge current (8/20 µs) [L-N] (I_n )	5 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [L-N] (I_max )	15 kA
Max. discharge current (8/20 µs) [N-PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.5 kV
Protective conductor current (I_PE )	≤ 5 µA
Response time [L-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	MCB C 63 A
Short-circuit withstand capability (I_SCCR )	6 kA
Temporary overvoltage (TOV) L-N (U_T )	335 V / 5 s
Temporary overvoltage (TOV) [N-PE] (U_T )	1200 V / 200 ms
TOV characteristic	withstand
Operating state / fault indication	green / red
Number of ports	1
Enclosure material	thermoplastic, grey, UL 94 V-0
Place of installation	indoor installation
POP
Tested to	EN 50550
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
Tripping time at 275 V a.c.	8 s
Tripping time at 400 V a.c.	120 ms
Max. current at 275 V a.c.	0.4 A
Max. current at 400 V a.c.	0.6 A
Power consumption	0.7 VA
Trip indicator	red
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	63 A
Rated switching capacity (I_cn) acc. to EN 60898	6 kA

Produkt 900788 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 900788.

Idź do sklepu internetowego

Nr kat. 900760 POP 2 255 C25

GTIN / EAN 4013364156135, Nr taryfy celnej (EU): 85363030, Waga brutto: 297.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

Protective device POP 2 255 C25
Protective device for mains-frequency surges with integrated miniature circuit breaker
POP according to EN 50550
Prewired complete unit, individual devices do not have to be additionally wired
Number pf poles 1P + N
Tripping characteristic MCB / nominal current MCB C 25 A
Rated breaking capacity according to EN 60898 6 kA
DIN rail mounted device according to DIN 43880, 3 modules

Brand: DEHN
Type: POP 2 255 C25
Part No.: 900760
or equivalent.

Certyfikaty

Dane techniczne

General
Number of poles	1P + N
Nominal a.c. voltage (U_N )	230 V
POP
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	25 A

General
Power supply system	single-phase TT / TN system
Number of poles	1P + N
Nominal a.c. voltage (U_N )	230 V
Nominal frequency (f_N )	50 Hz
Operating temperature range (T_U )	-25°C to +60°C
Cross-sectional area (L, N) (min.)	2.5 mm²solid / fine-stranded
Cross-sectional area (L, N) (max.)	16 mm²fine-stranded / 25 mm²solid
Degree of protection protection	IP 20
Capacity	3 module(s), DIN 43880
Mounting	35 mm DIN rails acc. to EN 60715
POP
Tested to	EN 50550
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
Tripping time at 275 V a.c.	8 s
Tripping time at 400 V a.c.	120 ms
Max. current at 275 V a.c.	0.4 A
Max. current at 400 V a.c.	0.6 A
Power consumption	0.7 VA
Trip indicator	red
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	25 A
Rated switching capacity (I_cn) acc. to EN 60898	6 kA

Produkt 900760 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 900760.

Idź do sklepu internetowego

Nr kat. 900761 POP 2 255 C32

GTIN / EAN 4013364156142, Nr taryfy celnej (EU): 85363030, Waga brutto: 317.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

Protective device POP 2 255 C32
Protective device for mains-frequency surges with integrated miniature circuit breaker
POP according to EN 50550
Prewired complete unit, individual devices do not have to be additionally wired
Number pf poles 1P + N
Tripping characteristic MCB / nominal current MCB C 32 A
Rated breaking capacity according to EN 60898 6 kA
DIN rail mounted device according to DIN 43880, 3 modules

Brand: DEHN
Type: POP 2 255 C32
Part No.: 900761
or equivalent.

Certyfikaty

Dane techniczne

General
Number of poles	1P + N
Nominal a.c. voltage (U_N )	230 V
POP
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	32 A

General
Power supply system	single-phase TT / TN system
Number of poles	1P + N
Nominal a.c. voltage (U_N )	230 V
Nominal frequency (f_N )	50 Hz
Operating temperature range (T_U )	-25°C to +60°C
Cross-sectional area (L, N) (min.)	2.5 mm²solid / fine-stranded
Cross-sectional area (L, N) (max.)	16 mm²fine-stranded / 25 mm²solid
Degree of protection protection	IP 20
Capacity	3 module(s), DIN 43880
Mounting	35 mm DIN rails acc. to EN 60715
POP
Tested to	EN 50550
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
Tripping time at 275 V a.c.	8 s
Tripping time at 400 V a.c.	120 ms
Max. current at 275 V a.c.	0.4 A
Max. current at 400 V a.c.	0.6 A
Power consumption	0.7 VA
Trip indicator	red
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	32 A
Rated switching capacity (I_cn) acc. to EN 60898	6 kA

Produkt 900761 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 900761.

Idź do sklepu internetowego

Nr kat. 900762 POP 2 255 C40

GTIN / EAN 4013364156159, Nr taryfy celnej (EU): 85363030, Waga brutto: 317.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

Protective device POP 2 255 C40
Protective device for mains-frequency surges with integrated miniature circuit breaker
POP according to EN 50550
Prewired complete unit, individual devices do not have to be additionally wired
Number pf poles 1P + N
Tripping characteristic MCB / nominal current MCB C 40 A
Rated breaking capacity according to EN 60898 6 kA
DIN rail mounted device according to DIN 43880, 3 modules

Brand: DEHN
Type: POP 2 255 C40
Part No.: 900762
or equivalent.

Certyfikaty

Dane techniczne

General
Number of poles	1P + N
Nominal a.c. voltage (U_N )	230 V
POP
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	40 A

General
Power supply system	single-phase TT / TN system
Number of poles	1P + N
Nominal a.c. voltage (U_N )	230 V
Nominal frequency (f_N )	50 Hz
Operating temperature range (T_U )	-25°C to +60°C
Cross-sectional area (L, N) (min.)	2.5 mm²solid / fine-stranded
Cross-sectional area (L, N) (max.)	16 mm²fine-stranded / 25 mm²solid
Degree of protection protection	IP 20
Capacity	3 module(s), DIN 43880
Mounting	35 mm DIN rails acc. to EN 60715
POP
Tested to	EN 50550
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
Tripping time at 275 V a.c.	8 s
Tripping time at 400 V a.c.	120 ms
Max. current at 275 V a.c.	0.4 A
Max. current at 400 V a.c.	0.6 A
Power consumption	0.7 VA
Trip indicator	red
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	40 A
Rated switching capacity (I_cn) acc. to EN 60898	6 kA

Produkt 900762 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 900762.

Idź do sklepu internetowego

Nr kat. 900765 POP 4 255 C25

GTIN / EAN 4013364156166, Nr taryfy celnej (EU): 85363030, Waga brutto: 547.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

Protective device POP 4 255 C25
Protective device for mains-frequency surges with integrated miniature circuit breaker
POP according to EN 50550
Prewired complete unit, individual devices do not have to be additionally wired
Number pf poles 3P + N
Tripping characteristic MCB / nominal current MCB C 25 A
Rated breaking capacity according to EN 60898 6 kA
DIN rail mounted device according to DIN 43880, 5 modules

Brand: DEHN
Type: POP 4 255 C25
Part No.: 900765
or equivalent.

Certyfikaty

Dane techniczne

General
Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V
POP
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	25 A

General
Power supply system	three-phase TT / TN system
Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V
Nominal frequency (f_N )	50 Hz
Operating temperature range (T_U )	-25°C to +60°C
Cross-sectional area (L1, L2, L3, N) (min.)	2.5 mm²solid / fine-stranded
Cross-sectional area (L1, L2, L3, N) (max.)	16 mm²fine-stranded / 25 mm²solid
Degree of protection protection	IP 20
Capacity	5 module(s), DIN 43880
Mounting	35 mm DIN rails acc. to EN 60715
POP
Tested to	EN 50550
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
Tripping time at 275 V a.c.	8 s
Tripping time at 400 V a.c.	120 ms
Max. current at 275 V a.c.	0.4 A
Max. current at 400 V a.c.	0.6 A
Power consumption	0.7 VA
Trip indicator	red
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	25 A
Rated switching capacity (I_cn) acc. to EN 60898	6 kA

Produkt 900765 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 900765.

Idź do sklepu internetowego

Nr kat. 900766 POP 4 255 C32

GTIN / EAN 4013364156173, Nr taryfy celnej (EU): 85363030, Waga brutto: 580.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

Protective device POP 4 255 C32
Protective device for mains-frequency surges with integrated miniature circuit breaker
POP according to EN 50550
Prewired complete unit, individual devices do not have to be additionally wired
Number pf poles 3P + N
Tripping characteristic MCB / nominal current MCB C 32 A
Rated breaking capacity according to EN 60898 6 kA
DIN rail mounted device according to DIN 43880, 5 modules

Brand: DEHN
Type: POP 4 255 C32
Part No.: 900766
or equivalent.

Certyfikaty

Dane techniczne

General
Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V
POP
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	32 A

General
Power supply system	three-phase TT / TN system
Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V
Nominal frequency (f_N )	50 Hz
Operating temperature range (T_U )	-25°C to +60°C
Cross-sectional area (L1, L2, L3, N) (min.)	2.5 mm²solid / fine-stranded
Cross-sectional area (L1, L2, L3, N) (max.)	2.5 mm²solid / fine-stranded
Degree of protection protection	IP 20
Capacity	5 module(s), DIN 43880
Mounting	35 mm DIN rails acc. to EN 60715
POP
Tested to	EN 50550
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
Tripping time at 275 V a.c.	8 s
Tripping time at 400 V a.c.	120 ms
Max. current at 275 V a.c.	0.4 A
Max. current at 400 V a.c.	0.6 A
Power consumption	0.7 VA
Trip indicator	red
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	32 A
Rated switching capacity (I_cn) acc. to EN 60898	6 kA

Produkt 900766 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 900766.

Idź do sklepu internetowego

Nr kat. 900767 POP 4 255 C40

GTIN / EAN 4013364156180, Nr taryfy celnej (EU): 85363030, Waga brutto: 586.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

Protective device POP 4 255 C40
Protective device for mains-frequency surges with integrated miniature circuit breaker
POP according to EN 50550
Prewired complete unit, individual devices do not have to be additionally wired
Number pf poles 3P + N
Tripping characteristic MCB / nominal current MCB C 40 A
Rated breaking capacity according to EN 60898 6 kA
DIN rail mounted device according to DIN 43880, 5 modules

Brand: DEHN
Type: POP 4 255 C40
Part No.: 900767
or equivalent.

Certyfikaty

Dane techniczne

General
Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V
POP
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	40 A

General
Power supply system	three-phase TT / TN system
Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V
Nominal frequency (f_N )	50 Hz
Operating temperature range (T_U )	-25°C to +60°C
Cross-sectional area (L1, L2, L3, N) (min.)	2.5 mm²solid / fine-stranded
Cross-sectional area (L1, L2, L3, N) (max.)	2.5 mm²solid / fine-stranded
Degree of protection protection	IP 20
Capacity	5 module(s), DIN 43880
Mounting	35 mm DIN rails acc. to EN 60715
POP
Tested to	EN 50550
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
Tripping time at 275 V a.c.	8 s
Tripping time at 400 V a.c.	120 ms
Max. current at 275 V a.c.	0.4 A
Max. current at 400 V a.c.	0.6 A
Power consumption	0.7 VA
Trip indicator	red
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	40 A
Rated switching capacity (I_cn) acc. to EN 60898	6 kA

Produkt 900767 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 900767.

Idź do sklepu internetowego

Nr kat. 900768 POP 4 255 C63

GTIN / EAN 4013364156197, Nr taryfy celnej (EU): 85363030, Waga brutto: 591.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

Protective device POP 4 255 C63
Protective device for mains-frequency surges with integrated miniature circuit breaker
POP according to EN 50550
Prewired complete unit, individual devices do not have to be additionally wired
Number pf poles 3P + N
Tripping characteristic MCB / nominal current MCB C 63 A
Rated breaking capacity according to EN 60898 6 kA
DIN rail mounted device according to DIN 43880, 5 modules

Brand: DEHN
Type: POP 4 255 C63
Part No.: 900768
or equivalent.

Certyfikaty

Dane techniczne

General
Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V
POP
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	63 A

General
Power supply system	three-phase TT / TN system
Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V
Nominal frequency (f_N )	50 Hz
Operating temperature range (T_U )	-25°C to +60°C
Cross-sectional area (L1, L2, L3, N) (min.)	2.5 mm²solid / fine-stranded
Cross-sectional area (L1, L2, L3, N) (max.)	2.5 mm²solid / fine-stranded
Degree of protection protection	IP 20
Capacity	5 module(s), DIN 43880
Mounting	35 mm DIN rails acc. to EN 60715
POP
Tested to	EN 50550
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
Tripping time at 275 V a.c.	8 s
Tripping time at 400 V a.c.	120 ms
Max. current at 275 V a.c.	0.4 A
Max. current at 400 V a.c.	0.6 A
Power consumption	0.7 VA
Trip indicator	red
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	63 A
Rated switching capacity (I_cn) acc. to EN 60898	6 kA

Produkt 900768 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 900768.

Idź do sklepu internetowego

Nr kat. 900720 DEHNduo POP SA 3P 230

GTIN / EAN 4013364477377, Nr taryfy celnej (EU): 85363030, Waga brutto: 175.44 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Protective device POP SA 3P 230
Protective device for
power-frequency overvoltages
for the triggering of external
circuit breakers
POP as per IEC 63052 cat. 4.1.3S2
Number pf poles 3P + N
Adjustable output switching signal
from 12V – 230V
DIN rail mounted device according to
DIN 43880, 2 modules

Brand: DEHN
Type: DEHNduo POP SA 3P 230
Part No.: 900720
or equivalent.

Dane techniczne

General
Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V
POP
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	440 V
Tripping time at 275 V a.c.	9 sec
Tripping time at 300 V AC	3 sec
Tripping time at 350 V AC	0.5 sec
DC breaking capacity_out 50 ms	230 V / 1 A; 48 V / 3 A; 24 V / 5 A; 12 V / 5 A
Power consumption	500 mW

General
Power supply system	three-phase TT / TN system
Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V
Nominal frequency (f_N )	50 Hz
Operating temperature range (T_U )	-5°C to +45°C
Cross-sectional area (L1, L2, L3, N) (min.)	0.5 mm²solid / flexible
Cross-sectional area (L1, L2, L3, N) (max.)	2.5 mm²flexible / 4 mm²solid
Degree of protection protection	IP 20
Capacity	2 module(s), DIN 43880
Mounting	35 mm DIN rails acc. to EN 60715
Status indication	RGB LED
POP
Tested to	IEC 63052 cat. 4.1.3S2
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	440 V
Tripping time at 400 V a.c.	140 ms
Tripping time at 275 V a.c.	9 sec
Tripping time at 300 V AC	3 sec
Tripping time at 350 V AC	0.5 sec
DC breaking capacity_out 50 ms	230 V / 1 A; 48 V / 3 A; 24 V / 5 A; 12 V / 5 A
Power consumption	500 mW

Produkt 900720 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 900720.

Idź do sklepu internetowego

SPD+POP+MCB / POP+MCB / POP

Two-pole SPD+POP+MCB

Nr kat. 900780 SPD+POP 2 255 C25

Nie masz uprawnień, by pobrać 900780.stp

Nie masz uprawnień, by pobrać 900780.igs

Nie masz uprawnień, by pobrać 900780.jt

Nie masz uprawnień, by pobrać 900780.dwg

Nie masz uprawnień, by pobrać 900780m_E.dxf

Produkt 900780 został dodany do notatnika.

Do koszyka dodano produkt 900780.

Nr kat. 900781 SPD+POP 2 255 C32

Nie masz uprawnień, by pobrać 900781.stp

Nie masz uprawnień, by pobrać 900781.igs

Nie masz uprawnień, by pobrać 900781.jt

Nie masz uprawnień, by pobrać 900781.dwg

Nie masz uprawnień, by pobrać 900780m_E.dxf

Produkt 900781 został dodany do notatnika.

Do koszyka dodano produkt 900781.

Nr kat. 900782 SPD+POP 2 255 C40

Nie masz uprawnień, by pobrać 900782.stp

Nie masz uprawnień, by pobrać 900782.igs

Nie masz uprawnień, by pobrać 900782.jt

Nie masz uprawnień, by pobrać 900782.dwg

Nie masz uprawnień, by pobrać 900780m_E.dxf

Produkt 900782 został dodany do notatnika.

Do koszyka dodano produkt 900782.

Four-pole SPD+POP+MCB

Nr kat. 900785 SPD+POP 4 255 C25

Nie masz uprawnień, by pobrać 900785.stp

Nie masz uprawnień, by pobrać 900786.igs

Nie masz uprawnień, by pobrać 900785.jt

Nie masz uprawnień, by pobrać 900785.dwg

Nie masz uprawnień, by pobrać 900785m_E.dxf

Produkt 900785 został dodany do notatnika.

Do koszyka dodano produkt 900785.

Nr kat. 900786 SPD+POP 4 255 C32

Nie masz uprawnień, by pobrać 900786.stp

Nie masz uprawnień, by pobrać 900786.igs

Nie masz uprawnień, by pobrać 900786.jt

Nie masz uprawnień, by pobrać 900786.dwg

Nie masz uprawnień, by pobrać 900785m_E.dxf

Produkt 900786 został dodany do notatnika.

Do koszyka dodano produkt 900786.

Nr kat. 900787 SPD+POP 4 255 C40

Nie masz uprawnień, by pobrać 900787.stp

Nie masz uprawnień, by pobrać 900787.igs

Nie masz uprawnień, by pobrać 900787.jt

Nie masz uprawnień, by pobrać 900787.dwg

Nie masz uprawnień, by pobrać 900785m_E.dxf

Produkt 900787 został dodany do notatnika.

Do koszyka dodano produkt 900787.

Nr kat. 900788 SPD+POP 4 255 C63

Nie masz uprawnień, by pobrać 900788.stp

Nie masz uprawnień, by pobrać 900788.igs

Nie masz uprawnień, by pobrać 900788.jt

Nie masz uprawnień, by pobrać 900788.dwg

Nie masz uprawnień, by pobrać 900785m_E.dxf

Produkt 900788 został dodany do notatnika.

Do koszyka dodano produkt 900788.

Two-pole POP+MCB

Nr kat. 900760 POP 2 255 C25

Nie masz uprawnień, by pobrać 900760.stp

Nie masz uprawnień, by pobrać 900760.igs

Nie masz uprawnień, by pobrać 900760.jt

Nie masz uprawnień, by pobrać 900761.dwg

Nie masz uprawnień, by pobrać 900760m_E.dxf

Produkt 900760 został dodany do notatnika.

Do koszyka dodano produkt 900760.

Nr kat. 900761 POP 2 255 C32

Nie masz uprawnień, by pobrać 900761.stp

Nie masz uprawnień, by pobrać 900761.igs

Nie masz uprawnień, by pobrać 900761.jt

Nie masz uprawnień, by pobrać 900761.dwg

Nie masz uprawnień, by pobrać 900760m_E.dxf

Produkt 900761 został dodany do notatnika.

Do koszyka dodano produkt 900761.

Nr kat. 900762 POP 2 255 C40

Nie masz uprawnień, by pobrać 900762.stp

Nie masz uprawnień, by pobrać 900762.igs

Nie masz uprawnień, by pobrać 900762.jt
