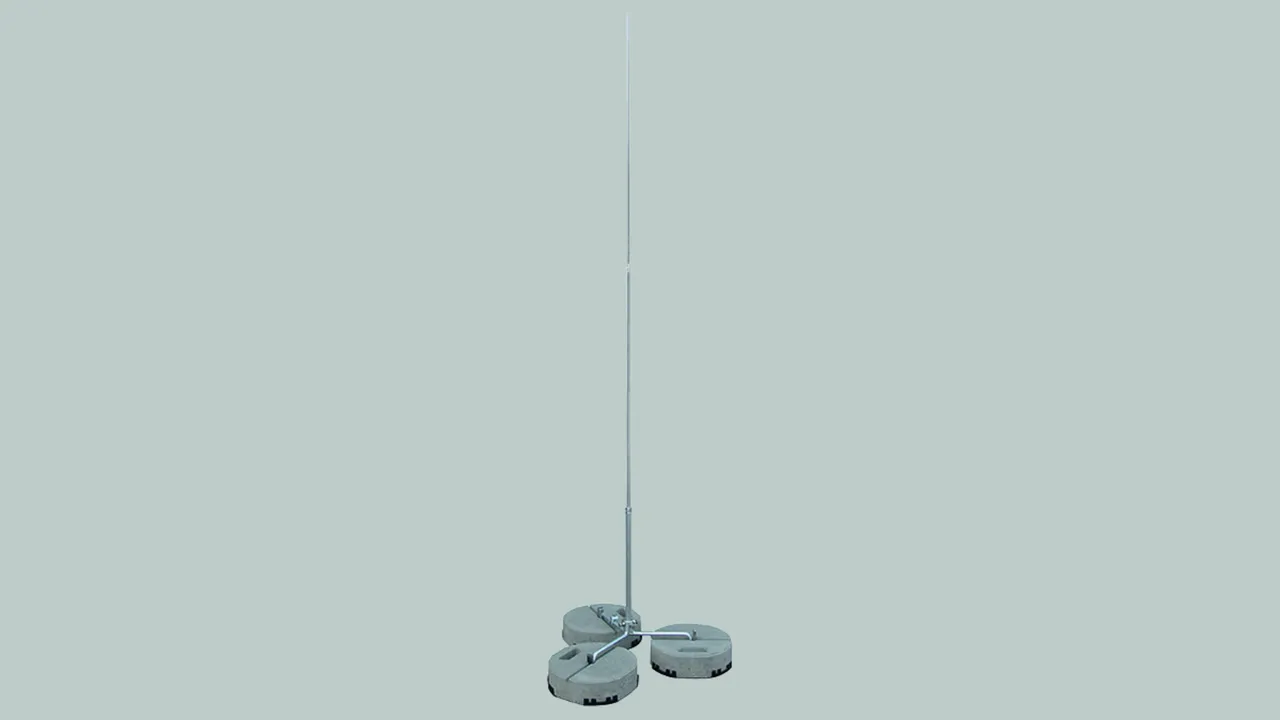

Self-supporting Air-Termination Rods 2.5 to 3.5 m

Self-supporting air-termination rods with tripod for protecting roof-mounted structures, adjustable to a roof pitch up to max. 10°.

The concrete base (Part No. 102 075 or 102 010) and the plastic base plate (Part No. 102 060 or 102 050) have to be ordered separately.

Components:
– Tapered tubular air-termination rod Ø40 / 16 / 10 mm and Ø22 / 16 / 10 mm
– Connection clamp (rod clamp) for 8–10‑mm round steel
– Tripod for concrete base with fixing wedge

Note: Permissible roof loads have to be considered and checked with the constructor where required.

For air-termination rods Ø22 mm

3 Produkty

Nr kat. 105525 FS 22 16 10 2500 AL DBS R320 STTZN

GTIN / EAN 4013364241985, Nr taryfy celnej (EU): 85389099, Waga brutto: 3.40 kg, Jednostka opakowaniowa: 1.00 pc(s)

Wcześniejszy produkt

Rysunki

Informacje dodatkowe

Self-supporting air-termination rod, 2500 mm high
Self-supporting air-termination rod with tripod
for protecting roof-mounted structures,
adjustable to a roof inclination up to max. 10 degrees.
The air-termination rods are dimensioned according to
Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA) for a
max. gust wind speed of 185 km/h.
The stackable concrete base (Part No. 102 075 or 102 010) and
the base plate (Part No. 102 060 or 102 050) have to be ordered separately.
Height: 2500 mm
Radius: 320 mm
Space required for tripod with 3 bases, 8.5 kg each : 730 x 800 mm
Space required for tripod with 3 bases, 17 kg each: 850 x 930 mm
Material of air-termination rod: Al
Material of tripod: St/tZn
Standard: EN 62561-(1+2)

Brand: DEHN
Type: FS 22 16 10 2500 AL DBS R320 STTZN
Part No.: 105525
or equivalent.

Certyfikaty



Dane techniczne

Height 2500 mm
Radius 320 mm
Space required for tripod with 3 bases, 8.5 kg each (l x w) 730 x 800 mm
Space required for tripod with 3 bases, 17 kg each (l x w) 850 x 930 mm
Max. gust wind speed See wind load pamphlet
Material of air-termination rod Al
Material of tripod St/tZn
Standard EN 62561-(1+2)

Produkt 105525 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 105525.

Idź do sklepu internetowego

Nr kat. 105530 FS 22 16 10 3000 AL DBS R320 STTZN

GTIN / EAN 4013364242029, Nr taryfy celnej (EU): 85389099, Waga brutto: 3.80 kg, Jednostka opakowaniowa: 1.00 pc(s)

Wcześniejszy produkt

Rysunki

Informacje dodatkowe

Self-supporting air-termination rod, 3000 mm high
Self-supporting air-termination rod with tripod
for protecting roof-mounted structures,
adjustable to a roof inclination up to max. 10 degrees.
The air-termination rods are dimensioned according to
Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA)
for a max. gust wind speed of 168 km/h.
The stackable concrete base (Part No. 102 075 or 102 010) and
the base plate (Part No. 102 060 or 102 050) have to be ordered separately.
Height: 3000 mm
Radius: 320 mm
Space required for tripod with 3 bases, 8.5 kg each : 730 x 800 mm
Space required for tripod with 3 bases, 17 kg each: 850 x 930 mm
Material of air-termination rod: Al
Material of tripod: St/tZn
Standard: EN 62561-(1+2)

Brand: DEHN
Type: FS 22 16 10 3000 AL DBS R320 STTZN
Part No.: 105530
or equivalent.

Certyfikaty



Dane techniczne

Height 3000 mm
Radius 320 mm
Space required for tripod with 3 bases, 8.5 kg each (l x w) 730 x 800 mm
Space required for tripod with 3 bases, 17 kg each (l x w) 850 x 930 mm
Max. gust wind speed See wind load pamphlet
Material of air-termination rod Al
Material of tripod St/tZn
Standard EN 62561-(1+2)

Produkt 105530 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 105530.

Idź do sklepu internetowego

Nr kat. 105535 FS 22 16 10 3500 AL DBS R320 STTZN

GTIN / EAN 4013364242043, Nr taryfy celnej (EU): 85389099, Waga brutto: 4.30 kg, Jednostka opakowaniowa: 1.00 pc(s)

Wcześniejszy produkt

Rysunki

Informacje dodatkowe

Self-supporting air-termination rod, 3500 mm high
Self-supporting air-termination rod with tripod
for protecting roof-mounted structures,
adjustable to a roof inclination up to max. 10 degrees.
The air-termination rods are dimensioned according to
Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA)
for a max. gust wind speed of 135 km/h.
The stackable concrete base (Part No. 102 075 or 102 010) and
the base plate (Part No. 102 060 or 102 050) have to be ordered separately.
Height: 3500 mm
Radius: 320 mm
Space required for tripod with 3 bases, 8.5 kg each : 730 x 800 mm
Space required for tripod with 3 bases, 17 kg each: 850 x 930 mm
Material of air-termination rod: Al
Material of tripod: St/tZn
Standard: EN 62561-(1+2)

Brand: DEHN
Type: FS 22 16 10 3500 AL DBS R320 STTZN
Part No.: 105535
or equivalent.

Certyfikaty



Dane techniczne

Height 3500 mm
Radius 320 mm
Space required for tripod with 3 bases, 8.5 kg each (l x w) 730 x 800 mm
Space required for tripod with 3 bases, 17 kg each (l x w) 850 x 930 mm
Max. gust wind speed See wind load pamphlet
Material of air-termination rod Al
Material of tripod St/tZn
Standard EN 62561-(1+2)

Produkt 105535 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 105535.

Idź do sklepu internetowego

For air-termination rods Ø40 mm

2 Produkty

Nr kat. 105531 FS D40 16 10 3000 AL DBS KB STTZN

GTIN / EAN 4013364535893, Nr taryfy celnej (EU): 85389099, Waga brutto: 11.00 kg, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Self-supporting air-termination rod; height: 3,000 mm
Self-supporting air-termination rods with tripod
for protecting roof-mounted structures,
Adjustable to the roof slope up to max. 10 degrees.
The air-termination rods are dimensioned to Eurocode 1
(DIN EN 1991-1-4 + DIN EN 1991-1-4/NA).
The stackable concrete base (Part No. 102 010) and
the plastic base plate (Part No. 102 050) must be ordered
separately.
Height: 3,000 mm
Radius: 220 mm
Space requirements for stand with concrete base of 17 kg: 668 x 718 mm
Material of air-termination rod: Al
Stand material: HDG steel
Standard: DIN EN 62561-(1+2)
Height: 3000 mm
Radius: 220 mm
Space required for tripod: 668 x 718 mm
Material of air-termination rod: Al
Material of tripod: St/tZn
Standard: EN 62561-(1+2)

Brand: DEHN
Type: FS D40 16 10 3000 AL DBS KB STTZN
Part No.: 105531
or equivalent.



Dane techniczne

Height 3000 mm
Radius 220 mm
Max. gust wind speed See wind load pamphlet
Space required for tripod (l x w) 668 x 718 mm
Material of air-termination rod Al
Material of tripod St/tZn
Standard EN 62561-(1+2)

Produkt 105531 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 105531.

Idź do sklepu internetowego

Nr kat. 105536 FS D40 16 10 3500 AL DBS KB STTZN

GTIN / EAN 4013364535909, Nr taryfy celnej (EU): 85389099, Waga brutto: 11.80 kg, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Self-supporting air-termination rod; height: 3,500 mm
Self-supporting air-termination rods with tripod
for protecting roof-mounted structures,
Adjustable to the roof slope up to max. 10 degrees.
The air-termination rods are dimensioned to Eurocode 1
(DIN EN 1991-1-4 + DIN EN 1991-1-4/NA).
The stackable concrete base (Part No. 102 010) and
the plastic base plate (Part No. 102 050) must be ordered
separately.
Height: 3,500 mm
Radius: 220 mm
Space requirements for stand with concrete base of 17 kg: 668 x 718 mm
Material of air-termination rod: Al
Stand material: HDG steel
Standard: DIN EN 62561-(1+2)
Height: 3500 mm
Radius: 220 mm
Space required for tripod: 668 x 718 mm
Material of air-termination rod: Al
Material of tripod: St/tZn
Standard: EN 62561-(1+2)

Brand: DEHN
Type: FS D40 16 10 3500 AL DBS KB STTZN
Part No.: 105536
or equivalent.



Dane techniczne

Height 3500 mm
Radius 220 mm
Max. gust wind speed See wind load pamphlet
Space required for tripod (l x w) 668 x 718 mm
Material of air-termination rod Al
Material of tripod St/tZn
Standard EN 62561-(1+2)

Produkt 105536 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 105536.

Idź do sklepu internetowego
