Elementy połączeniowe do uziomów fundamentowych

In accordance with the German standard DIN 18014: 2014-03 Fundamenterder – Planung, Ausführung und Dokumentation (Title Englisch: Foundation earth electrode - Planning, execution and documentation), foundation earth electrodes have to be connected every two meters with the reinforcement of the foundation plate. Among the various connection possibilities the clamping connection has turned out to be the most economic, as it can be realised fast and easily on site.

Among others also reinforcing steels shall be used as natural components of the down conductor system according to the current lightning protection standards. In the following a survey of the nominal and outer diameters as well as cross sections of the reinforcing steels DIN EN 10080: 2005 (see Figure 1).

For connecting concrete reinforcing mats or reinforcements with round and flat conductors.
Arrangement: (II) = parallel (+) = cross

Quick and safe:

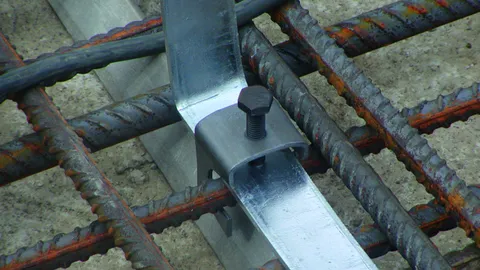

Without tools the new DEHNclip® rebar clamp allows to connect the earth electrode quick and safely with the reinforcing structure. DEHNclip® is tested for a lightning current carrying capability of 50 kA (10/350 µs) in accordance with EN 62561-1.

In accordance with the German standard DIN 18014: 2014-03 Fundamenterder – Planung, Ausführung und Dokumentation (Title Englisch: Foundation earth electrode - Planning, execution and documentation), foundation earth electrodes have to be connected every two meters with the reinforcement of the foundation plate. Among the various connection possibilities the clamping connection has turned out to be the most economic, as it can be realised fast and easily on site.

Among others also reinforcing steels shall be used as natural components of the down conductor system according to the current lightning protection standards. In the following a survey of the nominal and outer diameters as well as cross sections of the reinforcing steels DIN EN 10080: 2005.

For connecting concrete reinforcing mats or reinforcements with round and flat conductors.
Arrangement: (II) = parallel (+) = cross

For connecting round and flat conductors in the concrete foundation.
For T, cross and parallel connections, no need of threading the conductors.

Arrangement:
(II) = parallel
(+) = crosswise

For connecting round and flat conductors in the concrete foundation or the
concrete reinforcing mats and the reinforcements with round and flat conductors.

Arrangement:
(II) = parallel
(+) = cross

For T, cross and parallel connections for use in concrete foundations.

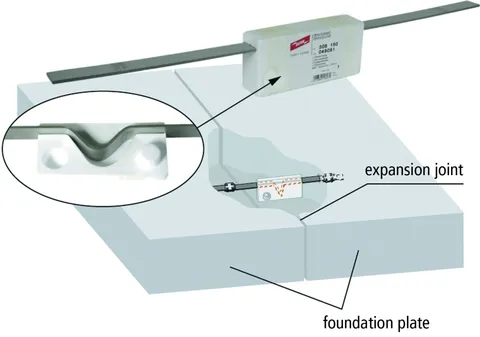

For leading the foundation earth electrode through the expansion joints of large foundations (several sections). It is not necessary to lead the earth electrode out of the base plate.

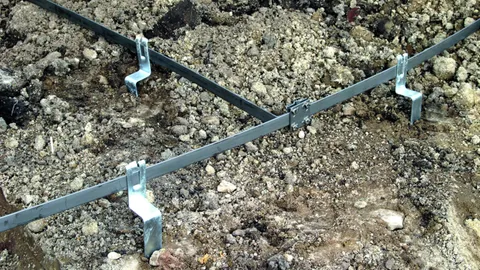

For the installation of earthing conductors in the foundation slab.
With catch lug to avoid loosening of the conductor.

With slot and anti-rotation feature, for fixing at the earthing pipe.
