Bezdotykowy wskaźnik napięcia ASP - zestaw

Easy and safe testing

Easy to use due to compact design
Cost-effective / space-saving transport

Szczegóły

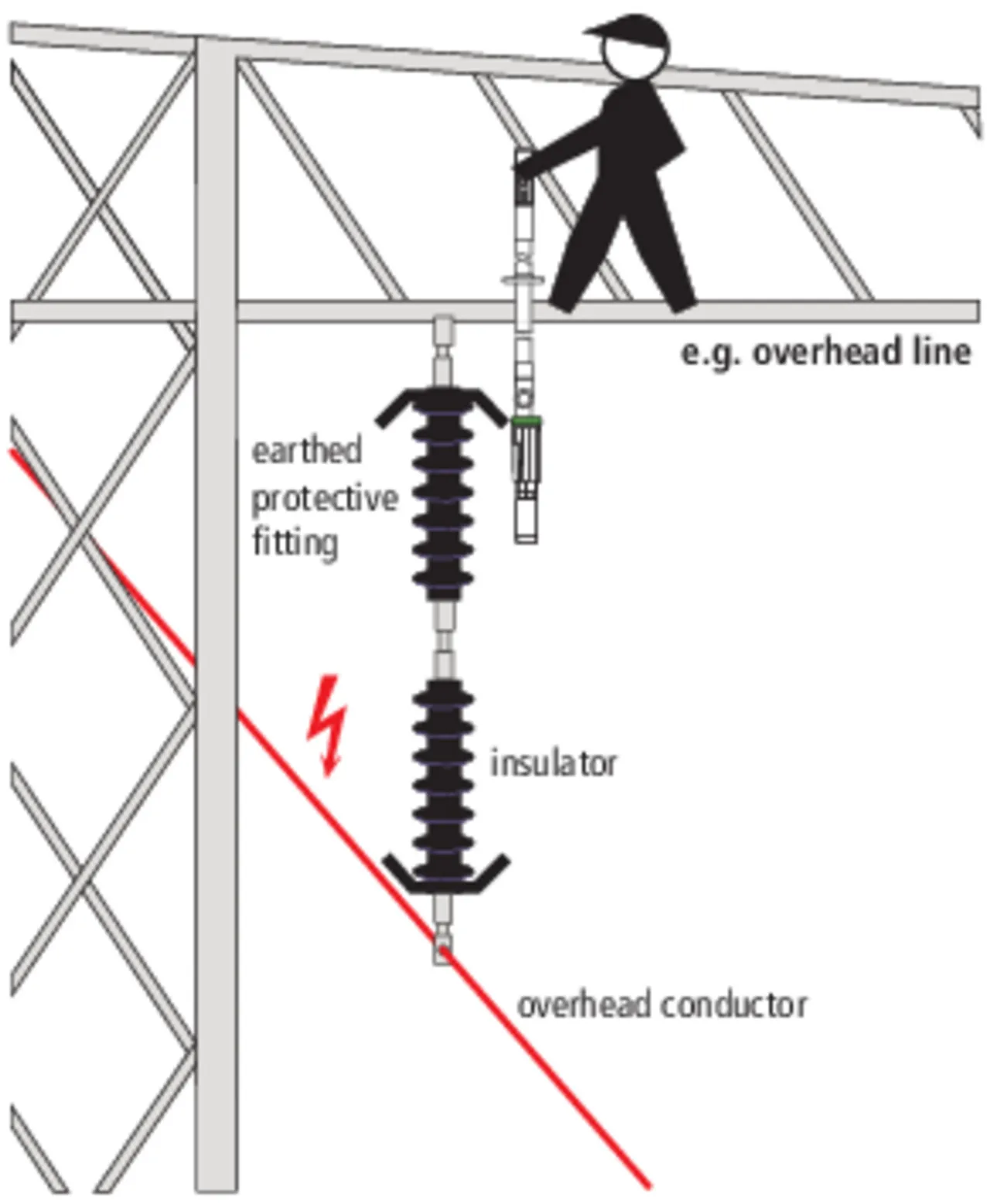

**Use for overhead lines**

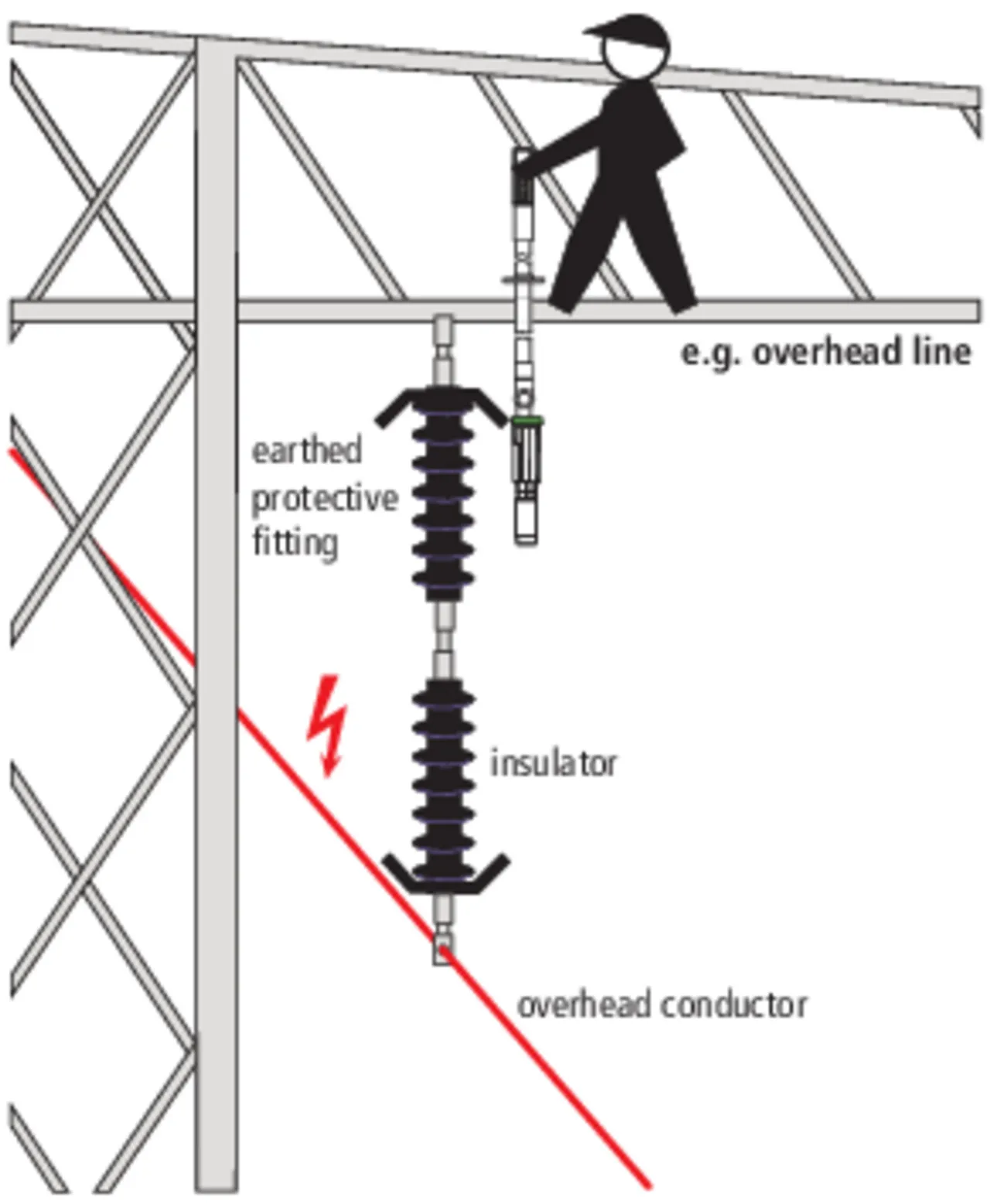

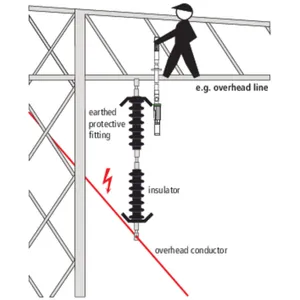

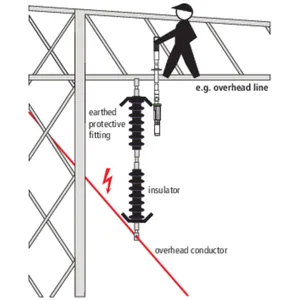

The green ring on the ASP distance voltage detector with category "L" electric field sensor is used to make contact with the last earthed protective fitting in such a way that the electric field sensor points in the direction of the overhead conductor fixed at the other end of the insulator.

lorem ipsum — **Use for overhead lines**
The green ring on the ASP distance voltage detector with category "L" electric field sensor is used to make contact with the last earthed protective fitting in such a way that the electric field sensor points in the direction of the overhead conductor fixed at the other end of the insulator.

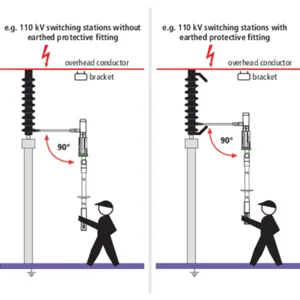

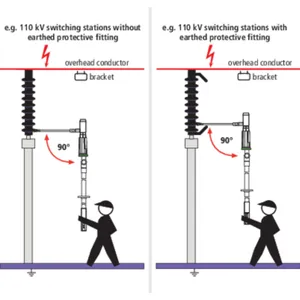

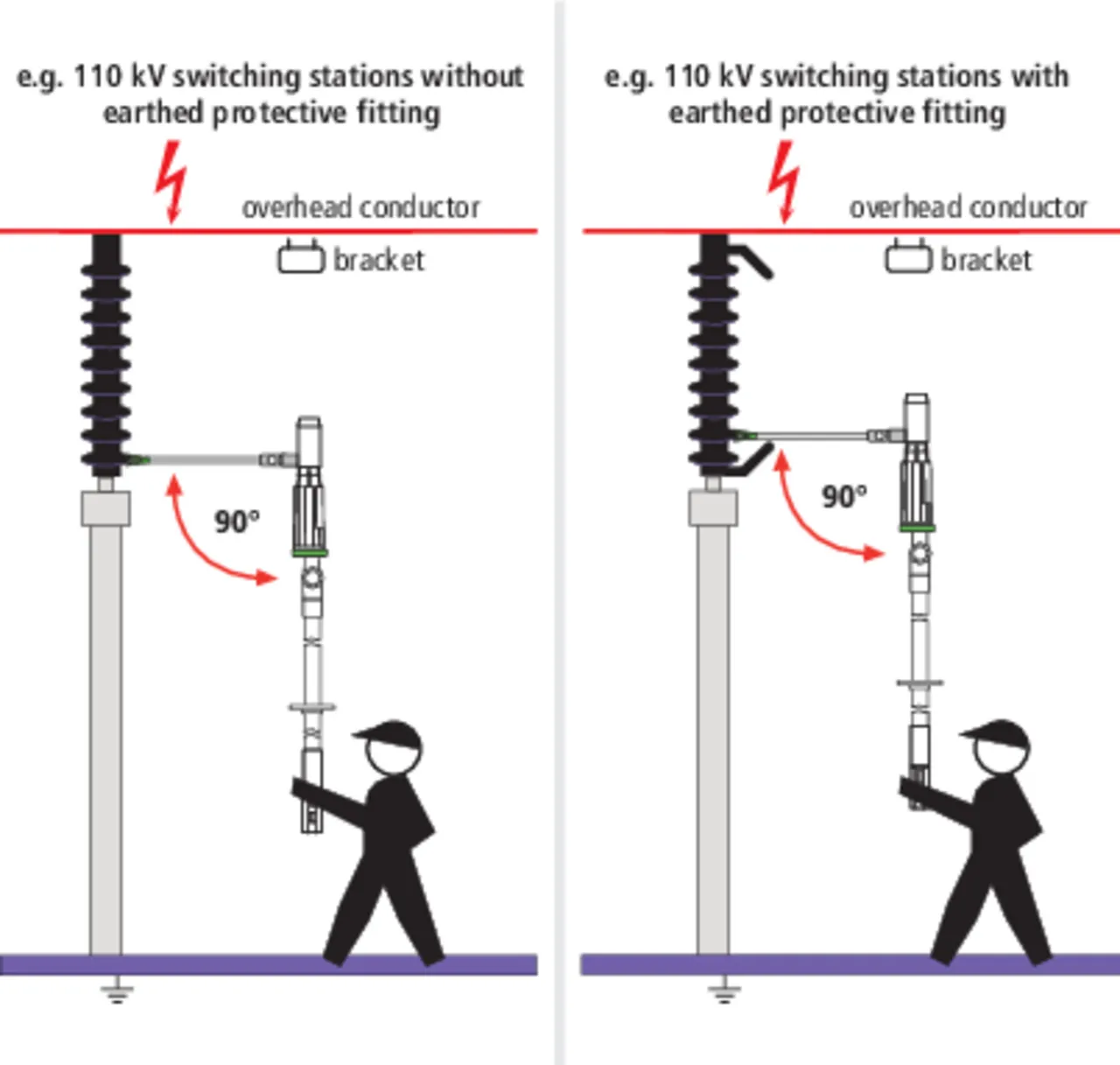

**Use in outdoor switching stations**
The green ring on the arm of the ASP distance voltage detector with category "S" electric field sensor is used to make contact with the lowest insulator plate at a right angle.
If an earthed protective fitting is available, contact is made at the next possible insulator plate above the protective fitting.

Kategoria "L", 50 Hz

Category "L" for overhead lines in accordance with the DIN VDE V 0682-417/10.2013 preliminary standard.

1 Produkt

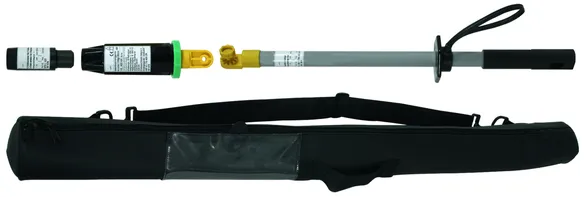

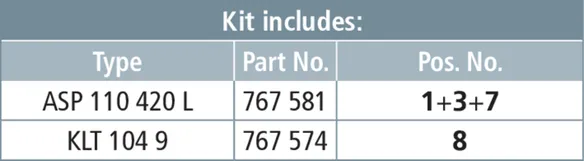

Nr kat. 767571 ASPS 110 420 L

GTIN / EAN 4013364124967, Nr taryfy celnej (EU): 90303370, Waga brutto: 2.23 kg, Jednostka opakowaniowa: 1.00 szt.

Wcześniejszy produkt

Rysunki

Informacje dodatkowe

Certyfikaty

Dane techniczne

Nominal voltage (U_N )	110 ... 420 kV
Frequency	50 Hz

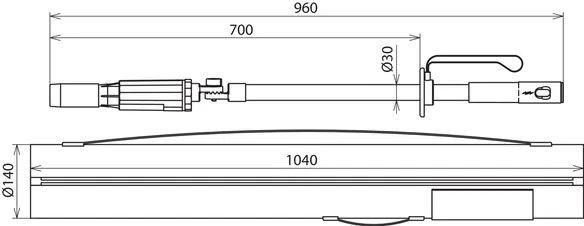

Total length (l_G )	960 mm

Nominal voltage (U_N )	110 ... 420 kV
Type of voltage	a.c.
Frequency	50 Hz
Total length (l_G )	960 mm
Category	L
Temperature range	–25 °C ... +55 °C
For use at	_
For	Overhead lines and outdoor switching stations
Application	Overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (indicator)	Plastic, fully insulated (black)
Material (electric field sensor)	Plastic (black)
Material (insulating stick)	Glass-fibre reinforced polyester tube

Produkt 767571 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 767571.

Idź do sklepu internetowego

Kategoria "L", 16,7 Hz

Category "L" for centre-earthed monophase traction power lines.

1 Produkt

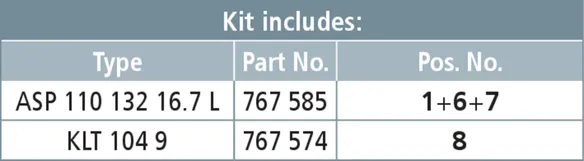

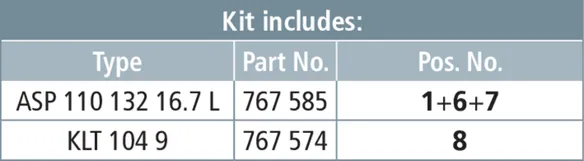

Nr kat. 767565 ASPS 110 132 16.7 L

GTIN / EAN 4013364143760, Nr taryfy celnej (EU): 90303370, Waga brutto: 2.27 kg, Jednostka opakowaniowa: 1.00 szt.

Rysunki

Informacje dodatkowe

Certyfikaty

Dane techniczne

Nominal voltage (U_N )	110 ... 132 kV
Frequency	16.7 Hz
Total length (l_G )	960 mm
DB drawing no.	3 Eku 710 002

Nominal voltage (U_N )	110 ... 132 kV
Type of voltage	a.c.
Frequency	16.7 Hz
Total length (l_G )	960 mm
Category	L
DB drawing no.	3 Eku 710 002
Temperature range	–25 °C ... +55 °C
For use at	_
For	Overhead lines and outdoor switching stations
Application	Overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (indicator)	Plastic, fully insulated (black)
Material (electric field sensor)	Plastic (black)
Material (insulating stick)	Glass-fibre reinforced polyester tube

Produkt 767565 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 767565.

Idź do sklepu internetowego

Kategoria "S", 50 Hz

Category "S" for outdoor switching stations.

2 Produkty

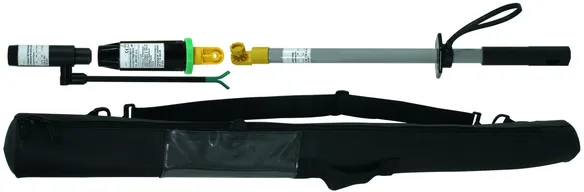

Nr kat. 767572 ASPS 110 420 S

GTIN / EAN 4013364124974, Nr taryfy celnej (EU): 90303370, Waga brutto: 2.21 kg, Jednostka opakowaniowa: 1.00 szt.

Rysunki

Informacje dodatkowe

Certyfikaty

Dane techniczne

Nominal voltage (U_N )	110 ... 420 kV
Frequency	50 Hz
Total length (l_G )	1000 mm

Nominal voltage (U_N )	110 ... 420 kV
Type of voltage	a.c.
Frequency	50 Hz
Total length (l_G )	1000 mm
Category	S
Temperature range	–25 °C ... +55 °C
For use at	_
For	Overhead lines and outdoor switching stations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (indicator)	Plastic, fully insulated (black)
Material (electric field sensor)	Plastic (black)
Material (insulating stick)	Glass-fibre reinforced polyester tube

Produkt 767572 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 767572.

Idź do sklepu internetowego

Nr kat. 767582 ASP 110 420 S

GTIN / EAN 4013364144569, Nr taryfy celnej (EU): 90303370, Waga brutto: 1.47 kg, Jednostka opakowaniowa: 1.00 szt.

Rysunki

Informacje dodatkowe

Certyfikaty

Dane techniczne

Nominal voltage (U_N )	110 ... 420 kV
Frequency	50 Hz
Total length (l_G )	1000 mm

Nominal voltage (U_N )	110 ... 420 kV
Type of voltage	a.c.
Frequency	50 Hz
Total length (l_G )	1000 mm
Category	S
Temperature range	–25 °C ... +55 °C
For use at	_
For	Overhead lines and outdoor switching stations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (indicator)	Plastic, fully insulated (black)
Material (electric field sensor)	Plastic (black)
Material (insulating stick)	Glass-fibre reinforced polyester tube

Produkt 767582 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 767582.

Idź do sklepu internetowego

Kategoria "S / L", 50 Hz

Category "S / L" for overhead lines and outdoor switching stations.

1 Produkt

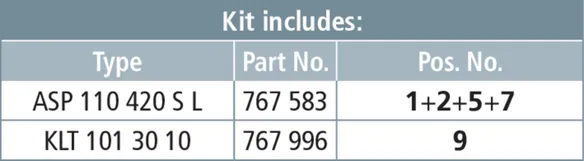

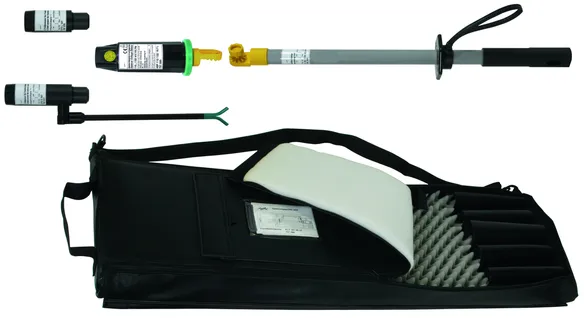

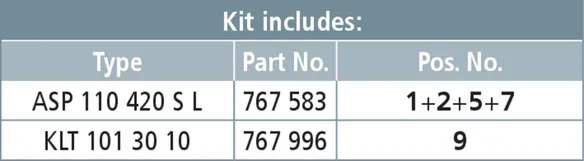

Nr kat. 767573 ASPS 110 420 S L

GTIN / EAN 4013364134270, Nr taryfy celnej (EU): 90303370, Waga brutto: 4.94 kg, Jednostka opakowaniowa: 1.00 szt.

Rysunki

Informacje dodatkowe

Certyfikaty

Dane techniczne

Nominal voltage (U_N )	110 ... 420 kV
Frequency	50 Hz
Total length (l_G )	1000 mm

Nominal voltage (U_N )	110 ... 420 kV
Type of voltage	a.c.
Frequency	50 Hz
Total length (l_G )	1000 mm
Category	S / L
Temperature range	–25 °C ... +55 °C
For use at	_
For	Overhead lines and outdoor switching stations
Application	Switchgear installations and overhead lines or overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (indicator)	Plastic, fully insulated (black)
Material (electric field sensor)	Plastic (black)
Material (insulating stick)	Glass-fibre reinforced polyester tube

Produkt 767573 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 767573.

Idź do sklepu internetowego
