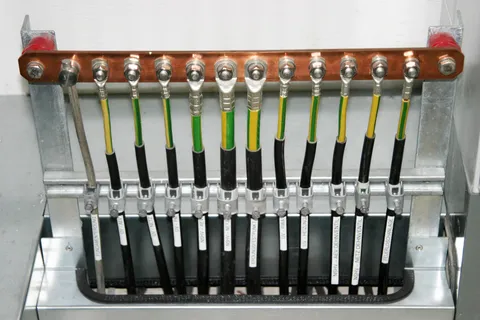

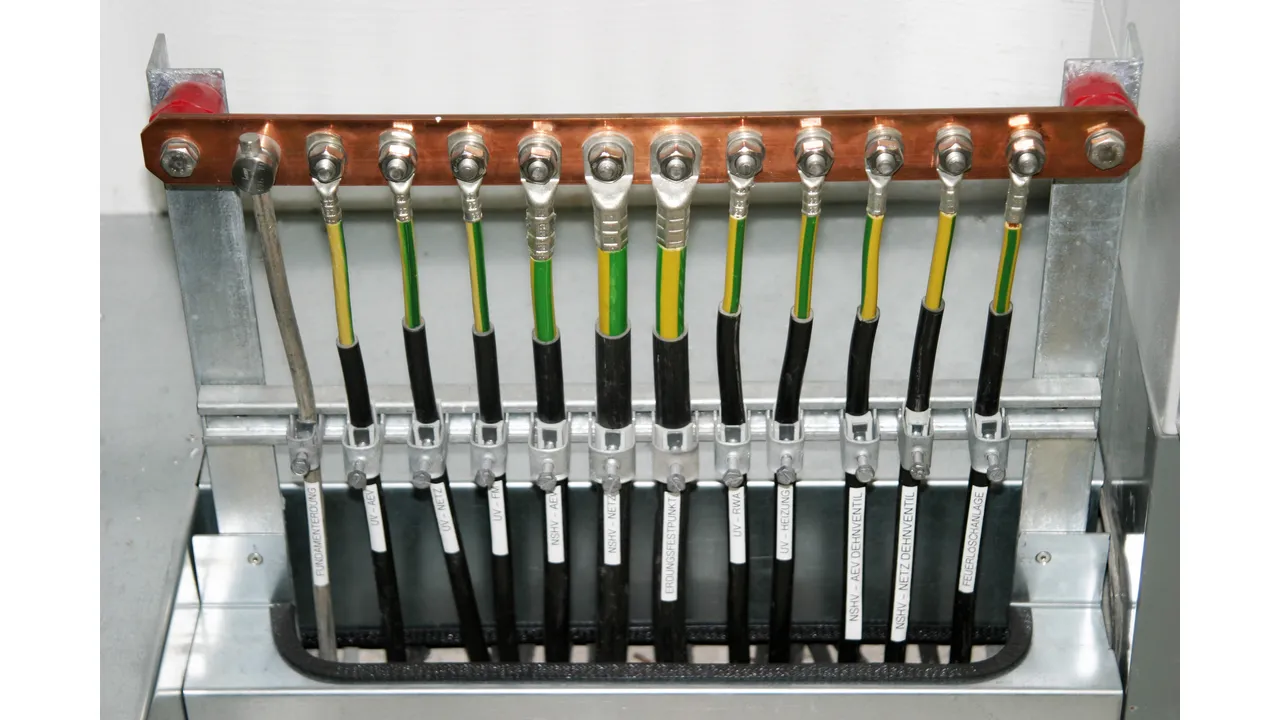

Barres d'équilibrage de potentiel pour zones Ex 2/22

Barres d'équilibrage de potentiel pour l'équilibrage principal de potentiel pour la protection contre la foudre selon NF EN 62305-3.
Grâce à une rondelle Grower, les vis sont protégées contre un desserage intempestif (NF EN 62305-3, annexe 2).

6 raccordements

2 Produkty

Nr kat. 472207 PAS I 6AP M10 CU

GTIN / EAN 4013364090927, Nr taryfy celnej (EU): 85359000, Waga brutto: 964.00 g, Jednostka opakowaniowa: 1.00 pièce(s)


Rysunki

Informacje dodatkowe


Nombre - raccordements: 6
Matériau: Cu
Dimensions: 295 x 40 x 5 mm
Section: 200 mm2
Courant de court-circuit (AC 50 Hz/DC): 39 kA
Vis: M10 x 25 mm
Matériau - vis / écrou: INOX
Version: avec rondelle Grower
Matériau - isolant: UP
Normes: NF EN 62561-1

produit : DEHN
Type: PAS I 6AP M10 CU
Référence: 472207
ou équivalent

Certyfikaty



Dane techniczne

Matériau Cu
Dimensions (l x b x t1) 295 x 40 x 5 mm
Section 200 mm2
Courant de court-circuit (AC 50 Hz/DC) (1 s; ≤ 300 °C) 39 kA
Vis di M10 x 25 mm
Matériau - vis / écrou INOX
Version avec rondelle Grower
Matériau - isolant UP
Normes NF EN 62561-1

Produkt 472207 został dodany do notatnika.

Do koszyka dodano produkt 472207.

Nr kat. 472209 PAS I 6AP M10 V2A

GTIN / EAN 4013364090934, Nr taryfy celnej (EU): 85359000, Waga brutto: 1.01 kg, Jednostka opakowaniowa: 1.00 pièce(s)


Rysunki

Informacje dodatkowe


Nombre - raccordements: 6
Matériau: INOX
Matériau n°: 1.4301 / 1.4303
Dimensions: 295 x 40 x 6 mm
Section: 240 mm2
Courant de court-circuit (AC 50 Hz/DC): 8,9 kA
Vis: M10 x 25 mm
Matériau - vis / écrou: INOX
Version: avec rondelle Grower
Matériau - isolant: UP
Normes: NF EN 62561-1

produit : DEHN
Type: PAS I 6AP M10 V2A
Référence: 472209
ou équivalent

Certyfikaty



Dane techniczne

Matériau INOX
Dimensions (l x b x t1) 295 x 40 x 6 mm
Section 240 mm2
Courant de court-circuit (AC 50 Hz/DC) (1 s; ≤ 300 °C) 8,9 kA
Vis di M10 x 25 mm
Matériau - vis / écrou INOX
Version avec rondelle Grower
Matériau - isolant UP
Normes NF EN 62561-1

Produkt 472209 został dodany do notatnika.

Do koszyka dodano produkt 472209.


8 raccordements

2 Produkty

Nr kat. 472227 PAS I 8AP M10 CU

GTIN / EAN 4013364096424, Nr taryfy celnej (EU): 85359000, Waga brutto: 1.14 kg, Jednostka opakowaniowa: 1.00 pièce(s)

Wcześniejszy produkt

Rysunki

Informacje dodatkowe


Nombre - raccordements: 8
Matériau: Cu
Dimensions: 365 x 40 x 5 mm
Section: 200 mm2
Courant de court-circuit (AC 50 Hz/DC): 39 kA
Vis: M10 x 25 mm
Matériau - vis / écrou: INOX
Version: avec rondelle Grower
Matériau - isolant: UP
Normes: NF EN 62561-1

produit : DEHN
Type: PAS I 8AP M10 CU
Référence: 472227
ou équivalent

Certyfikaty



Dane techniczne

Matériau Cu
Dimensions (l x b x t1) 365 x 40 x 5 mm
Section 200 mm2
Courant de court-circuit (AC 50 Hz/DC) (1 s; ≤ 300 °C) 39 kA
Vis di M10 x 25 mm
Matériau - vis / écrou INOX
Version avec rondelle Grower
Matériau - isolant UP
Normes NF EN 62561-1

Produkt 472227 został dodany do notatnika.

Do koszyka dodano produkt 472227.

Nr kat. 472229 PAS I 8AP M10 V2A

GTIN / EAN 4013364096431, Nr taryfy celnej (EU): 85359000, Waga brutto: 1.18 kg, Jednostka opakowaniowa: 1.00 pièce(s)


Rysunki

Informacje dodatkowe


Nombre - raccordements: 8
Matériau: INOX
Matériau n°: 1.4301 / 1.4303
Dimensions: 365 x 40 x 6 mm
Section: 240 mm2
Courant de court-circuit (AC 50 Hz/DC): 8,9 kA
Vis: M10 x 25 mm
Matériau - vis / écrou: INOX
Version: avec rondelle Grower
Matériau - isolant: UP
Normes: NF EN 62561-1

produit : DEHN
Type: PAS I 8AP M10 V2A
Référence: 472229
ou équivalent

Certyfikaty



Dane techniczne

Matériau INOX
Dimensions (l x b x t1) 365 x 40 x 6 mm
Section 240 mm2
Courant de court-circuit (AC 50 Hz/DC) (1 s; ≤ 300 °C) 8,9 kA
Vis di M10 x 25 mm
Matériau - vis / écrou INOX
Version avec rondelle Grower
Matériau - isolant UP
Normes NF EN 62561-1

Produkt 472229 został dodany do notatnika.

Do koszyka dodano produkt 472229.


10 raccordements

2 Produkty

Nr kat. 472217 PAS I 10AP M10 CU

GTIN / EAN 4013364090941, Nr taryfy celnej (EU): 85359000, Waga brutto: 1.35 kg, Jednostka opakowaniowa: 1.00 pièce(s)


Rysunki

Informacje dodatkowe


Nombre - raccordements: 10
Matériau: Cu
Dimensions: 435 x 40 x 5 mm
Section: 200 mm2
Courant de court-circuit (AC 50 Hz/DC): 39 kA
Vis: M10 x 25 mm
Matériau - vis / écrou: INOX
Version: avec rondelle Grower
Matériau - isolant: UP
Normes: NF EN 62561-1

produit : DEHN
Type: PAS I 10AP M10 CU
Référence: 472217
ou équivalent

Certyfikaty



Dane techniczne

Matériau Cu
Dimensions (l x b x t1) 435 x 40 x 5 mm
Section 200 mm2
Courant de court-circuit (AC 50 Hz/DC) (1 s; ≤ 300 °C) 39 kA
Vis di M10 x 25 mm
Matériau - vis / écrou INOX
Version avec rondelle Grower
Matériau - isolant UP
Normes NF EN 62561-1

Produkt 472217 został dodany do notatnika.

Do koszyka dodano produkt 472217.

Nr kat. 472219 PAS I 10AP M10 V2A

GTIN / EAN 4013364090958, Nr taryfy celnej (EU): 85359000, Waga brutto: 1.41 kg, Jednostka opakowaniowa: 1.00 pièce(s)


Rysunki

Informacje dodatkowe


Nombre - raccordements: 10
Matériau: INOX
Matériau n°: 1.4301 / 1.4303
Dimensions: 435 x 40 x 6 mm
Section: 240 mm2
Courant de court-circuit (AC 50 Hz/DC): 8,9 kA
Vis: M10 x 25 mm
Matériau - vis / écrou: INOX
Version: avec rondelle Grower
Matériau - isolant: UP
Normes: NF EN 62561-1

produit : DEHN
Type: PAS I 10AP M10 V2A
Référence: 472219
ou équivalent

Certyfikaty



Dane techniczne

Matériau INOX
Dimensions (l x b x t1) 435 x 40 x 6 mm
Section 240 mm2
Courant de court-circuit (AC 50 Hz/DC) (1 s; ≤ 300 °C) 8,9 kA
Vis di M10 x 25 mm
Matériau - vis / écrou INOX
Version avec rondelle Grower
Matériau - isolant UP
Normes NF EN 62561-1

Produkt 472219 został dodany do notatnika.

Do koszyka dodano produkt 472219.


12 raccordements

2 Produkty

Nr kat. 472237 PAS I 12AP M10 CU

GTIN / EAN 4013364096448, Nr taryfy celnej (EU): 85359000, Waga brutto: 1.53 kg, Jednostka opakowaniowa: 1.00 pièce(s)


Rysunki

Informacje dodatkowe


Nombre - raccordements: 12
Matériau: Cu
Dimensions: 505 x 40 x 5 mm
Section: 200 mm2
Courant de court-circuit (AC 50 Hz/DC): 39 kA
Vis: M10 x 25 mm
Matériau - vis / écrou: INOX
Version: avec rondelle Grower
Matériau - isolant: UP
Normes: NF EN 62561-1

produit : DEHN
Type: PAS I 12AP M10 CU
Référence: 472237
ou équivalent

Certyfikaty



Dane techniczne

Matériau Cu
Dimensions (l x b x t1) 505 x 40 x 5 mm
Section 200 mm2
Courant de court-circuit (AC 50 Hz/DC) (1 s; ≤ 300 °C) 39 kA
Vis di M10 x 25 mm
Matériau - vis / écrou INOX
Version avec rondelle Grower
Matériau - isolant UP
Normes NF EN 62561-1

Produkt 472237 został dodany do notatnika.

Do koszyka dodano produkt 472237.

Nr kat. 472239 PAS I 12AP M10 V2A

GTIN / EAN 4013364096455, Nr taryfy celnej (EU): 85359000, Waga brutto: 1.59 kg, Jednostka opakowaniowa: 1.00 pièce(s)


Rysunki

Informacje dodatkowe


Nombre - raccordements: 12
Matériau: INOX
Matériau n°: 1.4301 / 1.4303
Dimensions: 505 x 40 x 6 mm
Section: 240 mm2
Courant de court-circuit (AC 50 Hz/DC): 8,9 kA
Vis: M10 x 25 mm
Matériau - vis / écrou: INOX
Version: avec rondelle Grower
Matériau - isolant: UP
Normes: NF EN 62561-1

produit : DEHN
Type: PAS I 12AP M10 V2A
Référence: 472239
ou équivalent

Certyfikaty



Dane techniczne

Matériau INOX
Dimensions (l x b x t1) 505 x 40 x 6 mm
Section 240 mm2
Courant de court-circuit (AC 50 Hz/DC) (1 s; ≤ 300 °C) 8,9 kA
Vis di M10 x 25 mm
Matériau - vis / écrou INOX
Version avec rondelle Grower
Matériau - isolant UP
Normes NF EN 62561-1

Produkt 472239 został dodany do notatnika.

Do koszyka dodano produkt 472239.
