Nr kat. 923402 DASD 45 LP 100 T

GTIN / EAN 4013364442269, Nr taryfy celnej (EU): 85363030, Waga brutto: 3.69 kg, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

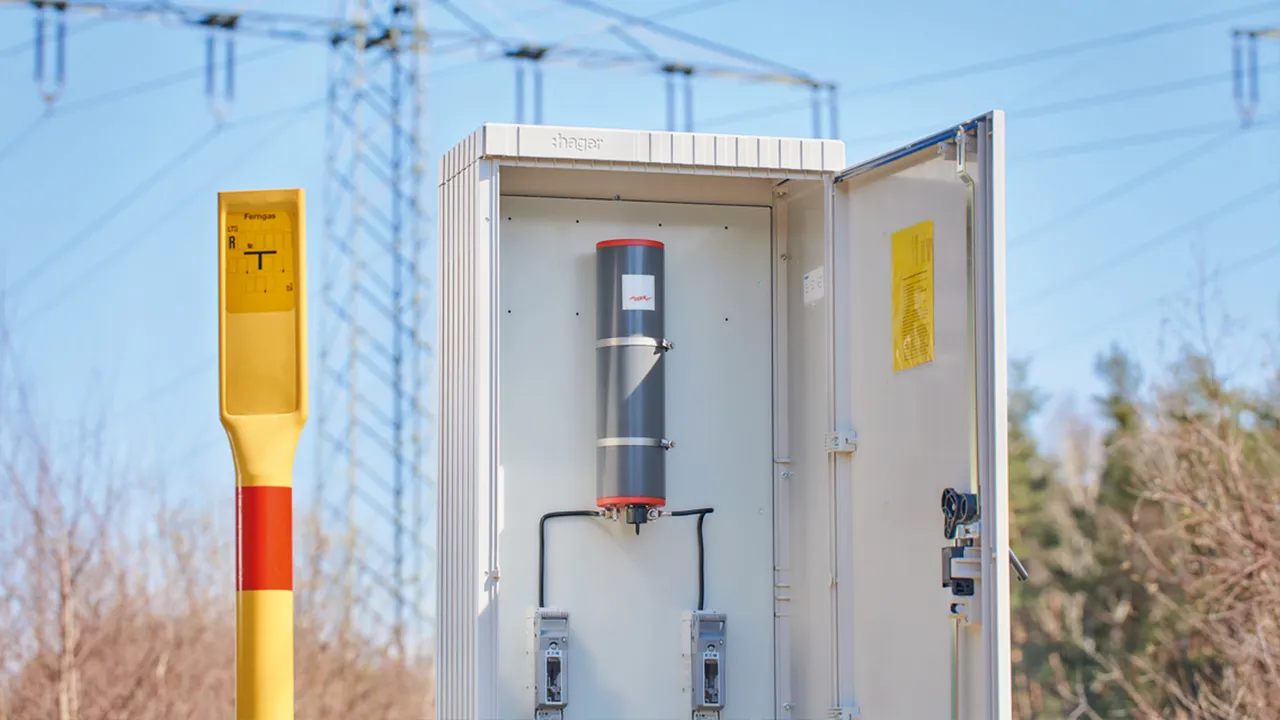

Capacitive decoupling device DASD
Capacitive decoupling device
For protection in case of transient, temporary and long-duration overvoltages
Discharge current transient: (10/350 us): 75 kA
Temporary discharge current (16.7 Hz, 50 Hz, 60 Hz): 3.7 kArms (up to 200 ms)
Long-duration discharge current (16.7 Hz, 50 Hz, 60 Hz): 45 A (permanent)
With integrated test socket
For outdoor use

Brand: DEHN
Type: DASD 45 LP 100 T
Part No.: 923402
or equivalent.

Certyfikaty

Dane techniczne

Transient discharge current (10/350 µs)	75 kA
Transient discharge current (8/20 µs)	100 kA
Temporary discharge current (16.7 Hz, 50 Hz, 60 Hz)	5.0 kA_rms (up to 40 ms)
Temporary discharge current (16.7 Hz, 50 Hz, 60 Hz)	3.7 kA_rms (up to 200 ms)
Temporary discharge current (16.7 Hz, 50 Hz, 60 Hz)	2.0 kA_rms(up to 600 ms)
Long-duration discharge current (16.7 Hz, 50 Hz, 60 Hz)	45 A_rms
Transient limiting voltage (up to 1 ms)	≤ 1.35 kV
Long-duration limiting voltage (> 600 ms)	≤ 3 V
IECEx approvals	IECEx TUR 22.0029X
Ex marking according to EN 60079-0 and EN 60079-7	Ex ec IIC T4 Gc

Transient discharge current (10/350 µs)	75 kA
Transient discharge current (8/20 µs)	100 kA
Temporary discharge current (16.7 Hz, 50 Hz, 60 Hz)	5.0 kA_rms (up to 40 ms)
Temporary discharge current (16.7 Hz, 50 Hz, 60 Hz)	3.7 kA_rms (up to 200 ms)
Temporary discharge current (16.7 Hz, 50 Hz, 60 Hz)	2.0 kA_rms(up to 600 ms)
Long-duration discharge current (16.7 Hz, 50 Hz, 60 Hz)	45 A_rms
Transient limiting voltage (up to 1 ms)	≤ 1.35 kV
Temporary limiting voltage (a.c._rms) (1 ... 600 ms)	≤ 20 V
Long-duration limiting voltage (> 600 ms)	≤ 3 V
Frequency range (a.c.)	50 / 60 Hz
Max. permissible voltage (d.c.)	- 2 V / + 1 V
Max. leakage current (20 °C) *	< 20 µA
Terminal (pipe / earth electrode)	M10 (stainless steel)
Operating temperature range (T_U )	-45 °C ... +65 °C
Enclosure material	PVC-U
Degree of protection	IP 68
Test socket	four-pole with protective cap
IECEx approvals	IECEx TUR 22.0029X
Ex marking according to EN 60079-0 and EN 60079-7	Ex ec IIC T4 Gc
Extended technical data:	---------------------------------
– Max. fault current	5 kA (600 ms)

Produkt 923402 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 923402.

Idź do sklepu internetowego

Nr kat. 923406 DASD 45 5 LP 1 T

GTIN / EAN 4013364509504, Nr taryfy celnej (EU): 85363030, Waga brutto: 8.00 kg, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

DC decoupling device DASD
For protection in case of transient, temporary and long-duration overvoltages
Discharge current transient: (10/350 us): 100 kA
Discharge current transient: (8/20 us): 100 kA
Temporary discharge current (16.7 Hz, 50 Hz, 60 Hz): 5.0 kArms (up to 600 ms)
Long-duration discharge current (16.7 Hz, 50 Hz, 60 Hz): 45 A (permanent)
Max. permissible voltage (d.c.) -2 V / +1 V
With integrated test socket

Brand: DEHN
Type: DASD 45 5 LP 1 T
Part No.: 923406
or equivalent.

Certyfikaty

Dane techniczne

Transient discharge current (10/350 µs)	100 kA
Transient discharge current (8/20 µs)	100 kA
Temporary discharge current (50 Hz, 60 Hz)	5 kA_rms (up to 600 ms)
Long-duration discharge current (50 Hz, 60 Hz)	45 A_rms
Transient limiting voltage (up to 1 ms)	≤ 5.2 kV
* This test is carried out to measure any leakage current via capacitor at a temperature of 20 deg C, with an applied DC voltage of 0.5V, and after a stabilzation period of 1hour.

Transient discharge current (10/350 µs)	100 kA
Transient discharge current (8/20 µs)	100 kA
Temporary discharge current (50 Hz, 60 Hz)	5 kA_rms (up to 600 ms)
Long-duration discharge current (50 Hz, 60 Hz)	45 A_rms
Transient limiting voltage (up to 1 ms)	≤ 5.2 kV
Frequency range (a.c.)	50 / 60 Hz
Max. permissible voltage (d.c.)	- 2 V / + 1 V
Max. leakage current (20 °C) *	< 20 µA
Terminal (pipe / earth electrode)	M10 (stainless steel)
Operating temperature range (T_U )	-40°C to +60°C
Enclosure material	Grilon TSG (PA66/6)
Degree of protection	IP 68
Test socket	four-pole with protective cap
* This test is carried out to measure any leakage current via capacitor at a temperature of 20 deg C, with an applied DC voltage of 0.5V, and after a stabilzation period of 1hour.

Produkt 923406 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 923406.

Idź do sklepu internetowego

Nr kat. 923408 DASD 45 5 LP 2 T

GTIN / EAN 4013364520783, Nr taryfy celnej (EU): 85363030, Waga brutto: 8.00 kg, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

DC decoupling device DASD
For protection in case of transient, temporary and long-duration overvoltages
Discharge current transient: (10/350 us): 100 kA
Discharge current transient: (8/20 us): 100 kA
Temporary discharge current (16.7 Hz, 50 Hz, 60 Hz): 5.0 kArms (up to 600 ms)
Long-duration discharge current (16.7 Hz, 50 Hz, 60 Hz): 45 A (permanent)
Max. permissible voltage (d.c.) -2 V / +2 V
With integrated test socket

Brand: DEHN
Type: DASD 45 5 LP 2 T
Part No.: 923408
or equivalent.

Certyfikaty

Dane techniczne

Transient discharge current (10/350 µs)	100 kA
Transient discharge current (8/20 µs)	100 kA
Temporary discharge current (50 Hz, 60 Hz)	5 kA_rms (up to 600 ms)
Long-duration discharge current (50 Hz, 60 Hz)	45 A_rms
Transient limiting voltage (up to 1 ms)	≤ 5.2 kV
* This test is carried out to measure any leakage current via capacitor at a temperature of 20 deg C, with an applied DC voltage of 0.5V, and after a stabilzation period of 1hour.

Transient discharge current (10/350 µs)	100 kA
Transient discharge current (8/20 µs)	100 kA
Temporary discharge current (50 Hz, 60 Hz)	5 kA_rms (up to 600 ms)
Long-duration discharge current (50 Hz, 60 Hz)	45 A_rms
Transient limiting voltage (up to 1 ms)	≤ 5.2 kV
Frequency range (a.c.)	50 / 60 Hz
Max. permissible voltage (d.c.)	-2 V / +2 V
Max. leakage current (20 °C) *	< 20 µA
Terminal (pipe / earth electrode)	M10 (stainless steel)
Operating temperature range (T_U )	-40°C to +60°C
Enclosure material	Grilon TSG (PA66/6)
Degree of protection	IP 68
Test socket	4-pole with protective cap
* This test is carried out to measure any leakage current via capacitor at a temperature of 20 deg C, with an applied DC voltage of 0.5V, and after a stabilzation period of 1hour.

Produkt 923408 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 923408.

Idź do sklepu internetowego

Nr kat. 923409 DASD 45 5 LP 3 T

GTIN / EAN 4013364520790, Nr taryfy celnej (EU): 85363030, Waga brutto: 8.00 kg, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

DC decoupling device DASD
For protection in case of transient, temporary and long-duration overvoltages
Discharge current transient: (10/350 us): 100 kA
Discharge current transient: (8/20 us): 100 kA
Temporary discharge current (16.7 Hz, 50 Hz, 60 Hz): 5.0 kArms (up to 600 ms)
Long-duration discharge current (16.7 Hz, 50 Hz, 60 Hz): 45 A (permanent)
Max. permissible voltage (d.c.) -3 V / +1 V
With integrated test socket

Brand: DEHN
Type: DASD 45 5 LP 3 T
Part No.: 923409
or equivalent.

Certyfikaty

Dane techniczne

Transient discharge current (10/350 µs)	100 kA
Transient discharge current (8/20 µs)	100 kA
Temporary discharge current (50 Hz, 60 Hz)	5 kA_rms (up to 600 ms)
Long-duration discharge current (50 Hz, 60 Hz)	45 A_rms
Transient limiting voltage (up to 1 ms)	≤ 5.2 kV
* This test is carried out to measure any leakage current via capacitor at a temperature of 20 deg C, with an applied DC voltage of 0.5V, and after a stabilzation period of 1hour.

Transient discharge current (10/350 µs)	100 kA
Transient discharge current (8/20 µs)	100 kA
Temporary discharge current (50 Hz, 60 Hz)	5 kA_rms (up to 600 ms)
Long-duration discharge current (50 Hz, 60 Hz)	45 A_rms
Transient limiting voltage (up to 1 ms)	≤ 5.2 kV
Frequency range (a.c.)	50 / 60 Hz
Max. permissible voltage (d.c.)	-3 V / +1 V
Max. leakage current (20 °C) *	< 20 µA
Terminal (pipe / earth electrode)	M10 (stainless steel)
Operating temperature range (T_U )	-40°C to +60°C
Enclosure material	Grilon TSG (PA66/6)
Degree of protection	IP 68
Test socket	4-pole with protective cap
* This test is carried out to measure any leakage current via capacitor at a temperature of 20 deg C, with an applied DC voltage of 0.5V, and after a stabilzation period of 1hour.

Produkt 923409 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 923409.

Idź do sklepu internetowego

Nr kat. 923410 DASD 45 10 2 T

GTIN / EAN 4013364520806, Nr taryfy celnej (EU): 85363030, Waga brutto: 8.00 kg, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

DC decoupling device DASD
For protection in case of transient, temporary and long-duration overvoltages
Discharge current transient: (8/20 us): 100 kA
Temporary discharge current (16.7 Hz, 50 Hz, 60 Hz): 10.0 kArms (up to 600 ms)
Long-duration discharge current (16.7 Hz, 50 Hz, 60 Hz): 45 A (permanent)
Max. permissible voltage (d.c.) -2 V / +2 V
With integrated test socket

Brand: DEHN
Type: DASD 45 10 2 T
Part No.: 923410
or equivalent.

Certyfikaty

Dane techniczne

Transient discharge current (10/350 µs)	50 kA
Transient discharge current (8/20 µs)	100 kA
Temporary discharge current (50 Hz, 60 Hz)	10 kA_rms (up to 600 ms)
Long-duration discharge current (50 Hz, 60 Hz)	45 A_rms
Transient limiting voltage (up to 1 ms)	≤ 5.2 kV
* This test is carried out to measure any leakage current via capacitor at a temperature of 20 deg C, with an applied DC voltage of 0.5V, and after a stabilzation period of 1hour.

Transient discharge current (10/350 µs)	50 kA
Transient discharge current (8/20 µs)	100 kA
Temporary discharge current (50 Hz, 60 Hz)	10 kA_rms (up to 600 ms)
Long-duration discharge current (50 Hz, 60 Hz)	45 A_rms
Transient limiting voltage (up to 1 ms)	≤ 5.2 kV
Frequency range (a.c.)	50 / 60 Hz
Max. permissible voltage (d.c.)	-2 V / +2 V
Max. leakage current (20 °C) *	< 20 µA
Terminal (pipe / earth electrode)	M10 (Copper)
Operating temperature range (T_U )	-40°C to +60°C
Enclosure material	Grilon TSG (PA66/6)
Degree of protection	IP 68
Test socket	4-pole with protective cap
* This test is carried out to measure any leakage current via capacitor at a temperature of 20 deg C, with an applied DC voltage of 0.5V, and after a stabilzation period of 1hour.

Produkt 923410 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 923410.

Idź do sklepu internetowego

Nr kat. 923411 DASD 45 10 3 T

GTIN / EAN 4013364520776, Nr taryfy celnej (EU): 85363030, Waga brutto: 5.30 kg, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

DC decoupling device DASD
For protection in case of transient, temporary and long-duration overvoltages
Discharge current transient: (8/20 us): 100 kA
Temporary discharge current (16.7 Hz, 50 Hz, 60 Hz): 10.0 kArms (up to 600 ms)
Long-duration discharge current (16.7 Hz, 50 Hz, 60 Hz): 45 A (permanent)
Max. permissible voltage (d.c.) -3 V / +1 V
With integrated test socket

Brand: DEHN
Type: DASD 45 10 3 T
Part No.: 923411
or equivalent.

Dane techniczne

Transient discharge current (10/350 µs)	50 kA
Transient discharge current (8/20 µs)	100 kA
Temporary discharge current (50 Hz, 60 Hz)	10.0 kA_rms (up to 600 ms)
Long-duration discharge current (50 Hz, 60 Hz)	45 A_rms
Transient limiting voltage (up to 1 ms)	≤ 5.2 kV
* This test is carried out to measure any leakage current via capacitor at a temperature of 20 deg C, with an applied DC voltage of 0.5V, and after a stabilzation period of 1hour.

Transient discharge current (10/350 µs)	50 kA
Transient discharge current (8/20 µs)	100 kA
Temporary discharge current (50 Hz, 60 Hz)	10.0 kA_rms (up to 600 ms)
Long-duration discharge current (50 Hz, 60 Hz)	45 A_rms
Transient limiting voltage (up to 1 ms)	≤ 5.2 kV
Frequency range (a.c.)	50 Hz / 60 Hz
Max. permissible voltage (d.c.)	-3 V / +1 V
Max. leakage current (20 °C) *	< 20 µA
Terminal (pipe / earth electrode)	M10 (Copper)
Operating temperature range (T_U )	-40°C to +60°C
Enclosure material	Grilon TSG (PA66/6)
Degree of protection	IP 68
Test socket	4-pole with protective cap
* This test is carried out to measure any leakage current via capacitor at a temperature of 20 deg C, with an applied DC voltage of 0.5V, and after a stabilzation period of 1hour.

Produkt 923411 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 923411.

Idź do sklepu internetowego

Wyniki wyszukiwania produktów (0)

Wyniki wyszukiwania zawartości (0)

Decoupling device DASD 45

DASD 45 LP 100 T

Nr kat. 923402 DASD 45 LP 100 T

Produkt 923402 został dodany do notatnika.

Do koszyka dodano produkt 923402.

DASD 45 5 LP 1 T

Nr kat. 923406 DASD 45 5 LP 1 T

Produkt 923406 został dodany do notatnika.

Do koszyka dodano produkt 923406.

DASD 45 5 LP 2 T

Nr kat. 923408 DASD 45 5 LP 2 T

Produkt 923408 został dodany do notatnika.

Do koszyka dodano produkt 923408.

DASD 45 5 LP 3 T

Nr kat. 923409 DASD 45 5 LP 3 T

Produkt 923409 został dodany do notatnika.

Do koszyka dodano produkt 923409.

DASD 45 10 2 T

Nr kat. 923410 DASD 45 10 2 T

Produkt 923410 został dodany do notatnika.

Do koszyka dodano produkt 923410.

DASD 45 10 3 T

Nr kat. 923411 DASD 45 10 3 T

Produkt 923411 został dodany do notatnika.

Do koszyka dodano produkt 923411.

Decoupling device DASD 45

DASD 45 LP 100 T

Nr kat. 923402 DASD 45 LP 100 T

Nie masz uprawnień, by pobrać 923402m_D.dxf

Nie masz uprawnień, by pobrać DEHN.923402.edz

Produkt 923402 został dodany do notatnika.

Do koszyka dodano produkt 923402.

DASD 45 5 LP 1 T

Nr kat. 923406 DASD 45 5 LP 1 T

Nie masz uprawnień, by pobrać DASD_45_XX_XX_XT_m_E.dxf

Produkt 923406 został dodany do notatnika.

Do koszyka dodano produkt 923406.

DASD 45 5 LP 2 T

Nr kat. 923408 DASD 45 5 LP 2 T

Nie masz uprawnień, by pobrać DASD_45_XX_XX_XT_m_E.dxf

Nie masz uprawnień, by pobrać DEHN.923402.edz

Produkt 923408 został dodany do notatnika.

Do koszyka dodano produkt 923408.

DASD 45 5 LP 3 T

Nr kat. 923409 DASD 45 5 LP 3 T

Nie masz uprawnień, by pobrać DASD_45_XX_XX_XT_m_E.dxf

Nie masz uprawnień, by pobrać DEHN.923402.edz

Produkt 923409 został dodany do notatnika.

Do koszyka dodano produkt 923409.

DASD 45 10 2 T

Nr kat. 923410 DASD 45 10 2 T

Nie masz uprawnień, by pobrać DASD_45_XX_XX_XT_m_E.dxf

Nie masz uprawnień, by pobrać DEHN.923402.edz

Produkt 923410 został dodany do notatnika.

Do koszyka dodano produkt 923410.

DASD 45 10 3 T

Nr kat. 923411 DASD 45 10 3 T

Nie masz uprawnień, by pobrać DASD_45_XX_XX_XT_m_E.dxf

Nie masz uprawnień, by pobrać DEHN.923402.edz

Produkt 923411 został dodany do notatnika.

Do koszyka dodano produkt 923411.
