Connection Elements for HVI long Conductor

Connection element for HVI long Conductor

1 Produkt

Nr kat. 819650 AE BO10 KF HVI 75 V2A

GTIN / EAN 4013364534377, Nr taryfy celnej (EU): 85359000, Waga brutto: 193.30 g, Jednostka opakowaniowa: 10.00 pc(s)

Rysunki

Informacje dodatkowe

Connection element for HVI long Conductor, stainless steel
Connection elements for HVI long Conductor for sealing
the HVI long Conductor on both ends,
for establishing the connections of the conductor
e.g. to the connection plate on the air-termination mast
or to other parts of the external lightning protection system.
Incl. heat-shrinkable sleeve
Material: StSt
Connection: bolt Ø10 mm, L 50 mm

Brand: DEHN
Type: AE BO10 KF HVI 75 V2A
Part No.: 819650
or equivalent.



Dane techniczne

Material StSt
Connection bolt Ø10 mm, L 50 mm
Diameter Ø connection element 23 mm

Produkt 819650 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 819650.

Idź do sklepu internetowego

Connection kit for HVI long Conductor for installation inside the tube

1 Produkt

Nr kat. 819655 HVI LO ASS RIV KF V2A

GTIN / EAN 4013364534384, Nr taryfy celnej (EU): 85359000, Waga brutto: 401.50 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Connection kit for HVI long Conductor, Ø 21 mm, for installation inside the tube, stainless steel
Connection elements for sealing the HVI long Conductor at both ends
Material: StSt
Connection: bolt Ø10 mm, L 50 mm
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: HVI LO ASS RIV KF V2A
Part No.: 819655
or equivalent.



Dane techniczne

Material StSt
Connection bolt Ø10 mm, L 50 mm
Diameter Ø connection element 23 mm
Standard DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Produkt 819655 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 819655.

Idź do sklepu internetowego

Insulated connection elements for HVI long Conductor

3 Produkty

Nr kat. 819173 AE ISO BO10 KF HVI 75 V2A

GTIN / EAN 4013364530027, Nr taryfy celnej (EU): 85359000, Waga brutto: 233.63 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Insulating connection element for HVI Conductor (earth side)
An insulating connection element
for sealing the
HVI Conductor on the earth side,
including heat-shrinkable sleeve.
for the dielectric withstand test
of the HVI Conductor
Material: StSt / plastic
Connection: Bolt Ø10 mm, L 50 mm with M12 thread with spring washer

Brand: DEHN
Type: AE ISO BO10 KF HVI 75 V2A
Part No.: 819173
or equivalent.



Dane techniczne

Material StSt / plastic
Connection Bolt Ø10 mm, L 50 mm with M12 thread with spring washer

Produkt 819173 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 819173.

Idź do sklepu internetowego

Nr kat. 819174 AE ISO RIV KF HVI 75 V2A

GTIN / EAN 4013364530034, Nr taryfy celnej (EU): 85359000, Waga brutto: 231.90 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Insulating connection element for HVI Conductor (installed inside the tube)
An insulating connection element
for sealing the
HVI Conductor when installed inside the tube,
including heat-shrinkable sleeve
for the dielectric withstand test
of the HVI Conductor
Material: StSt / plastic
Connection: Special mushroom head

Brand: DEHN
Type: AE ISO RIV KF HVI 75 V2A
Part No.: 819174
or equivalent.



Dane techniczne

Material StSt / plastic
Connection Special mushroom head

Produkt 819174 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 819174.

Idź do sklepu internetowego

Nr kat. 819175 AE ISO RAV KF HVI 75 V2A

GTIN / EAN 4013364530041, Nr taryfy celnej (EU): 85359000, Waga brutto: 233.50 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Insulating connection element for HVI Conductor (installed outside the tube)
Insulating connection element
for sealing the
HVI Conductor when installed outside the tube,
including heat-shrinkable sleeve
for the dielectric withstand test
of the HVI Conductor
Material: StSt / plastic
Connection: Bolt Ø10 mm, L 50 mm with M12 thread with spring washer

Brand: DEHN
Type: AE ISO RAV KF HVI 75 V2A
Part No.: 819175
or equivalent.



Dane techniczne

Material StSt / plastic
Connection Bolt Ø10 mm, L 50 mm with M12 thread with spring washer

Produkt 819175 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 819175.

Idź do sklepu internetowego

EB connection element for HVI long Conductor

For discharging the electric field of the HVI long Conductor in the sealing end range.
Special slotted design to electrically contact the semi-conductive sheath.

1 Produkt

Nr kat. 410229 PAE 20 23 AB11 V2A

GTIN / EAN 4013364107731, Nr taryfy celnej (EU): 85359000, Waga brutto: 72.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

EB connection element for HVI long Conductors, StSt
EB connection element for HVI long Conductor for discharging the electrical field of HVI Conductor
in the sealing end range.
Special slotted design to electrically contact the semi-conductive sheath.
Material: StSt
Clamping range Ø: 20 mm
Connection hole Ø: 11 mm
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: PAE 20 23 AB11 V2A
Part No.: 410229
or equivalent.

Certyfikaty



Dane techniczne

Material StSt
Clamping range Ø 20 mm
Connection hole Ø 11 mm
Standard DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Produkt 410229 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 410229.

Idź do sklepu internetowego

Measuring point terminal

Measuring points for HVI check.

1 Produkt

Nr kat. 819649 MPK 18 V2A

GTIN / EAN 4013364512498, Nr taryfy celnej (EU): 85389099, Waga brutto: 41.80 g, Jednostka opakowaniowa: 5.00 pc(s)

Rysunki

Informacje dodatkowe

Measuring point terminal for the dielectric withstand test
Measuring point terminal for
permanent installation
for connecting
measuring equipment for the
dielectric withstand test of
HVI light plus Conductors
and HVI conductors
Material: StSt
Clamping range Ø: 18–20 mm

Brand: DEHN
Type: MPK 18 V2A
Part No.: 819649
or equivalent.



Dane techniczne

Material StSt
Clamping range Ø 18–20 mm

Produkt 819649 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 819649.

Idź do sklepu internetowego

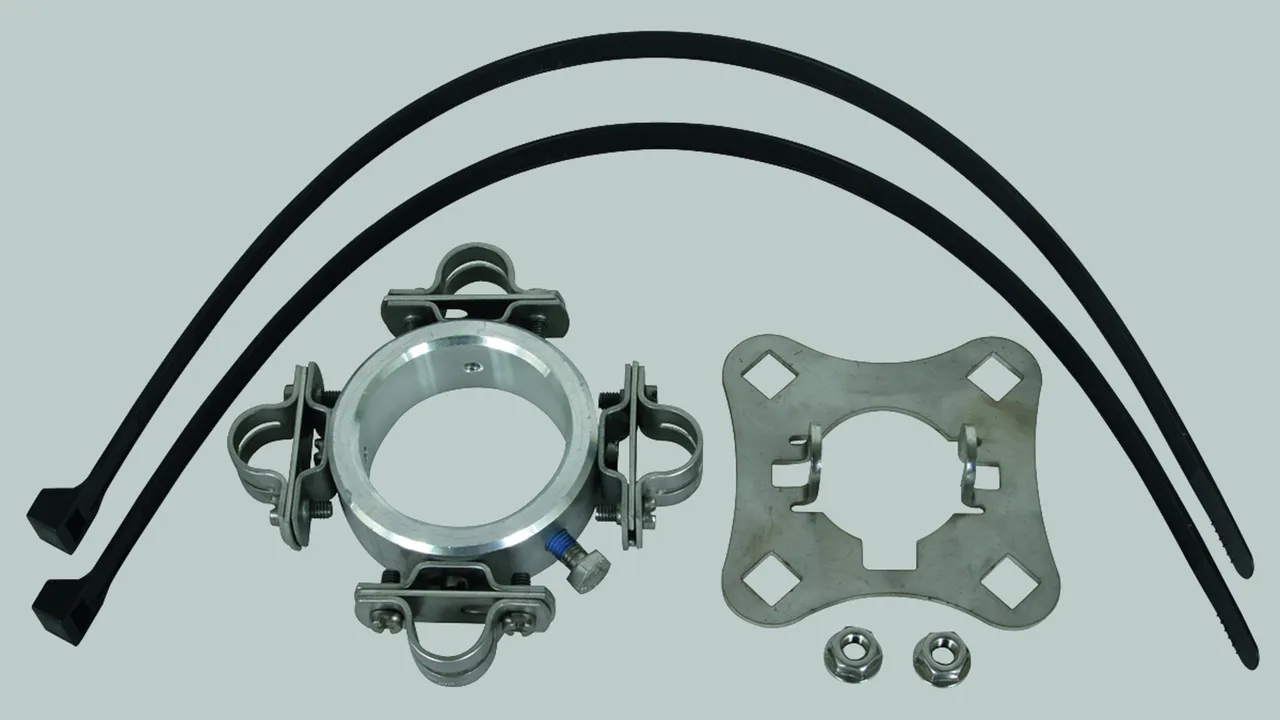

Fixing kit for HVI long Conductor black / grey

Fixing kit for installation of the HVI long Conductor on HVI long supporting tubes, consisting of a connection plate (4x, including two self-locking nuts with serrated bearings) and a fixing ring with four slotted conductor holders (Ø20 mm) for the sealing end (including two cable ties with plastic holder halves).

1 Produkt

Nr kat. 819294 BFS D61 4X20

GTIN / EAN 4013364152571, Nr taryfy celnej (EU): 85389099, Waga brutto: 780.80 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Fixing kit for HVI long Conductors, D 20mm, StSt / Al
Fixing kit for mounting the HVI long Conductor at the supporting tube D 50 mm, consisting of a connection plate (for four conductors, two lock nuts included) and a fixing ring with four slotted conductor holders for the sealing end (two cable ties included).
Material: StSt / Al
Connection plate support: square hole 13 mm
Conductor holder: 4 x 20 mm
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: BFS D61 4X20
Part No.: 819294
or equivalent.

Certyfikaty



Dane techniczne

Material StSt / Al
Connection plate support square hole 13 mm
Conductor holder 4 x 20 mm
Standard DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Produkt 819294 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 819294.

Idź do sklepu internetowego

Connection plate

Connection plate (4x, including two self-locking nuts with serrated bearings) for installing the HVI long Conductor on the supporting tube Ø50 mm (e.g. part no. 105 330, 105 331, 105 332, 105 333).

1 Produkt

Nr kat. 819288 AP SR D50 4AE HVI V2A

GTIN / EAN 4013364236479, Nr taryfy celnej (EU): 85389099, Waga brutto: 176.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Wcześniejszy produkt

Rysunki

Informacje dodatkowe

Connecting plate, StSt
Connecting plate (for four conductors, including two self-locking nuts with serrated bearing) for installing a HVI long Conductor on the supporting tube, D 50 mm (e.g. Part No. 105 330, 105 331, 105 332, 105 333).
Material: StSt
Connection plate support: square hole 13
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: AP SR D50 4AE HVI V2A
Part No.: 819288
or equivalent.

Certyfikaty



Dane techniczne

Material StSt
Connection plate support square hole 13
Standard DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Produkt 819288 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 819288.

Idź do sklepu internetowego

Supporting tube collar for noise reduction

1 Produkt

Nr kat. 819235 SCHIRM HVI SCH RED

GTIN / EAN 4013364477216, Nr taryfy celnej (EU): 85389099, Waga brutto: 109.60 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Supporting tube collar for noise reduction
for the internally installed HVI long Conductor
Ø20 mm and Ø23 mm in the supporting tube
Material: Plastic
Can be used for: HVI long black and HVI long grey
conductor diameter Ø: 20 / 23 mm

Brand: DEHN
Type: SCHIRM HVI SCH RED
Part No.: 819235
or equivalent.

Certyfikaty



Dane techniczne

Material Plastic
Can be used for HVI long black and HVI long grey
conductor diameter Ø 20 / 23 mm

Produkt 819235 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 819235.

Idź do sklepu internetowego
