DCC

  • Resistant to currents as high as 100 kA (4/10 µs)
  • Fast value acquisition
  • Corrosion-resistant
  • Mechanically stable
  • Water-proof
  • Maintenance-free
  • Auxiliary contacts (remote signalling contacts) optionally available

DDC

4 Produkty

Nr kat. 994101 DCC 2

GTIN / EAN 4013364542181, Nr taryfy celnej (EU): 90303900, Waga brutto: 1.68 kg, Jednostka opakowaniowa: 1.00 pc(s)


Rysunki

Informacje dodatkowe

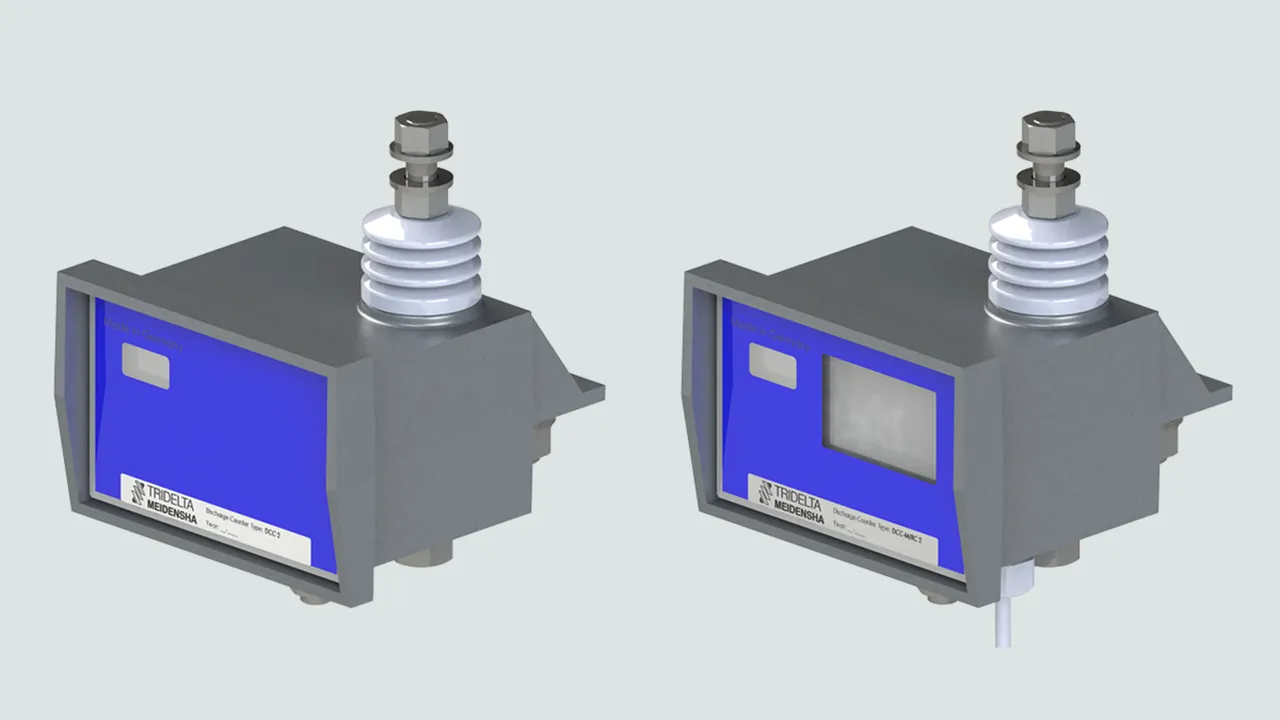

Impulse counter DCC 2
with register for registering discharge processes
Quick acquisition of values
Corrosion-resistant
min. sensitivity: 100 A (8/20 µs)
Max. high-current surge resistance: 100 kA (4/10 µs)
Connection bolt: M12
Aluminium enclosure: IP 67; grey

Brand: DEHN
Type: DCC 2
Part No.: 994101
or equivalent.



Dane techniczne

Register six-digit

Produkt 994101 został dodany do notatnika.

Do koszyka dodano produkt 994101.

Nr kat. 994102 DCC-M 2

GTIN / EAN 4013364542198, Nr taryfy celnej (EU): 90303900, Waga brutto: 1.78 kg, Jednostka opakowaniowa: 1.00 pc(s)


Rysunki

Informacje dodatkowe

Impulse counter DCC-M 2
with register and measuring scale for registration
discharge processes and the recording
leakage currents
Quick acquisition of values
Corrosion-resistant
min. sensitivity: 100 A (8/20 µs)
Max. high-current surge resistance: 100 kA (4/10 µs)
Measuring scale: 0–31 mArms
Connection bolt: M12
Aluminium enclosure: IP 67; grey

Brand: DEHN
Type: DCC-M 2
Part No.: 994102
or equivalent.



Dane techniczne

Register six-digit
Measuring scale 0-30 mArms

Produkt 994102 został dodany do notatnika.

Do koszyka dodano produkt 994102.

Nr kat. 994104 DCC/RC 2

GTIN / EAN 4013364542204, Nr taryfy celnej (EU): 90303900, Waga brutto: 1.74 kg, Jednostka opakowaniowa: 1.00 pc(s)


Rysunki

Informacje dodatkowe

Impulse counter DCC/RC 2
with register for registration of discharge processes
with remote signalling contact
Quick acquisition of values
Corrosion-resistant
min. sensitivity: 100 A (8/20 µs)
Max. high-current surge resistance: 100 kA (4/10 µs)
Connection bolt: M12
Aluminium enclosure: IP 67; grey

Brand: DEHN
Type: DCC/RC 2
Part No.: 994104
or equivalent.



Dane techniczne

Register six-digit

Produkt 994104 został dodany do notatnika.

Do koszyka dodano produkt 994104.

Nr kat. 994105 DCC-M/RC 2

GTIN / EAN 4013364542211, Nr taryfy celnej (EU): 90303900, Waga brutto: 1.81 kg, Jednostka opakowaniowa: 1.00 pc(s)


Rysunki

Informacje dodatkowe

Impulse counter DCC-M/RC 2
with register and measuring scale for registration
discharge processes and the recording
leakage currents
with remote signalling contact
Quick acquisition of values
Corrosion-resistant
Min. sensitivity: 100 A (8/20)
Max. high-current surge resistance: 100 kA (4/10 µs)
Measuring scale: 0–30 mArms
Connection bolt: M12
Aluminium enclosure: IP 67; grey

Brand: DEHN
Type: DCC-M/RC 2
Part No.: 994105
or equivalent.



Dane techniczne

Register six-digit
Measuring scale 0-30 mArms

Produkt 994105 został dodany do notatnika.

Do koszyka dodano produkt 994105.
