Urządzenia do uziemiania i zwierania

Urządzenia uziemiające i zwierające do uziemiania i zwierania instalacji elektrycznych oraz akcesoria i pojedyncze części, również do instalacji niskonapięciowych. Urządzenia uziemiające i zwierające można indywidualnie konfigurować za pomocą konfiguratora.

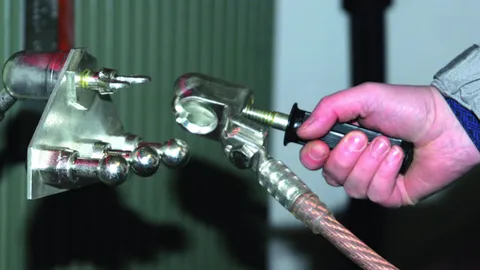

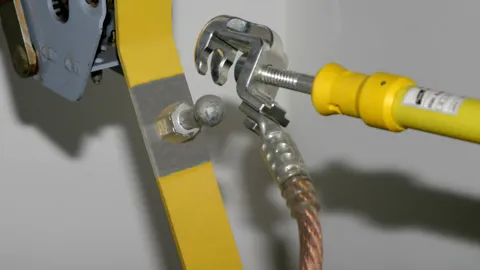

Kulowe punkty mocowania

Line and earth connection point in accordance with EN/IEC 61230 (DIN VDE 0683-100) at the conductor and earth-termination system.
  • Suitable for fixing cable lugs or connecting busbars in accordance with DIN 43673-1
  • M12 and M16 threaded bolt with self-locking nut
  • M12 and M16 non-cutting formed female thread

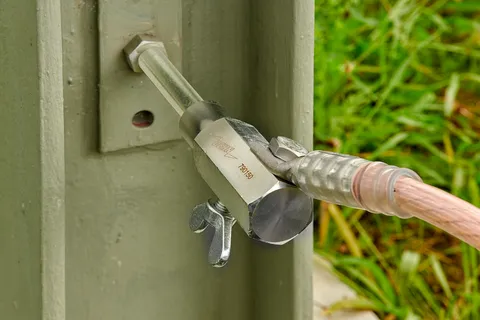

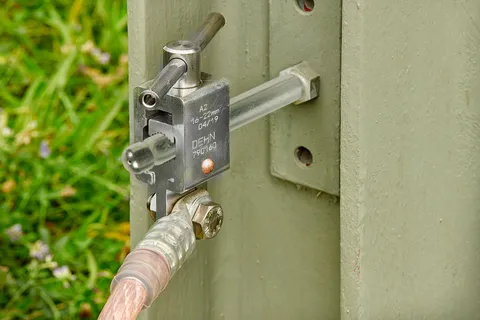

Uziemiające punkty mocowania

Earth connection point in accordance with EN/IEC 61230 (DIN VDE 0683-100).
  • For welding or screwing earth connectors with wing nut or wing bolt to the earth-termination system
  • Connectors with M12 and M16 threaded bolt
  • M12 and M16 female thread

Płyty przyłączeniowe uziemienia

Earth connection point in accordance with EN/IEC 61230 (DIN VDE 0683-100).For indoor and outdoor installations

Przewody uziemiające i zwierające, bez elementów przyłączeniowych

Earthing and short-circuiting cables with crimped cable lug in accordance with EN/IEC 61230 (DIN VDE 0683-100) for earthing and short-circuiting electrical installations at the work location in accordance with EN 50110 (DIN VDE 0105-100).
  • Standard anti-rotation PK1 cable lugs
  • Earthing and short-circuiting devices can be configured online via the earthing and short-circuiting configurator

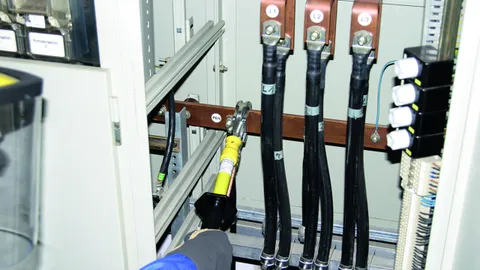

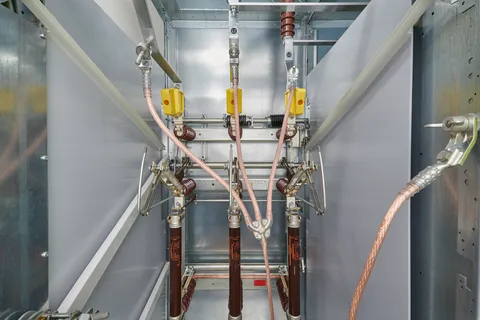

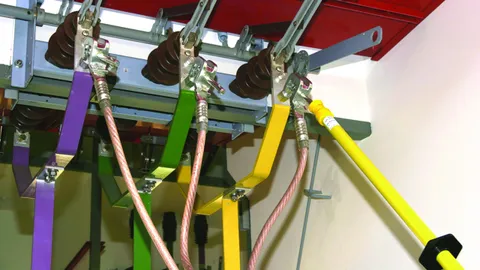

Elementy przyłączeniowe fazy do rozdzielnic

Connection elements in accordance with EN/IEC 61230 (DIN VDE 0683-100) for single-pole/three-pole earthing and short-circuiting cablesEarthing and short-circuiting devices can be configured online via the earthing and short-circuiting configurator

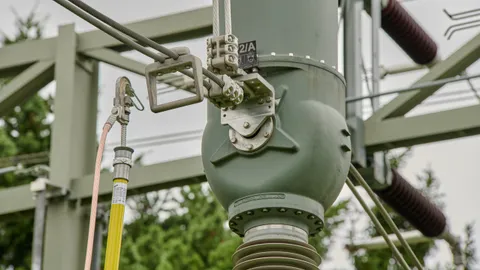

Elementy przyłączeniowe fazy do linii napowietrznych

Connection elements in accordance with EN/IEC 61230 (DIN VDE 0683-100) for single-pole/three-pole earthing and short-circuiting cablesEarthing and short-circuiting devices can be configured online via the earthing and short-circuiting configurator

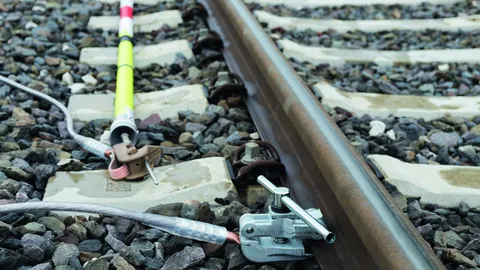

Elementy przyłączeniowe fazy do zastosowań kolejowych

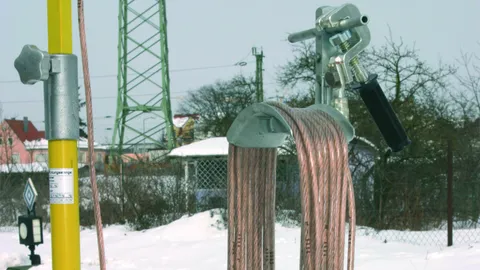

Zestaw uziemiający

Earthing kits are connection elements connecting earthing and short-circuiting cables or bars to the ground either directly or via connecting links.

Uziom kołkowy pogrążany

Elementy przyłączniowe uziemienia do rozdzielnic i linii napowietrznych

Connection elements in accordance with EN/IEC 61230 (DIN VDE 0683-100) for single-pole/three-pole earthing and short-circuiting cables.Earthing and short-circuiting devices can be configured online via the earthing and short-circuiting configurator

Elementy przyłączniowe uziemienia do zastosowań kolejowych

Drążki uziemiające do rozdzielnic

Earthing sticks or earthing handle for installing portable earthing and short-circuiting devices ( single-pole/three-pole devices and short-circuiting bars) to power installations or installations up to 1000 V in accordance with EN 50110 (DIN VDE 0105-100).

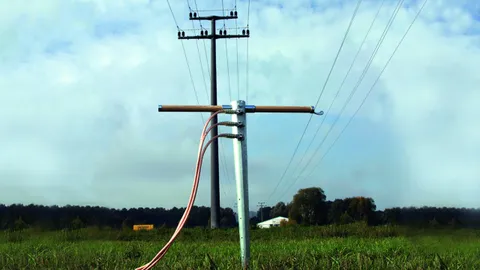

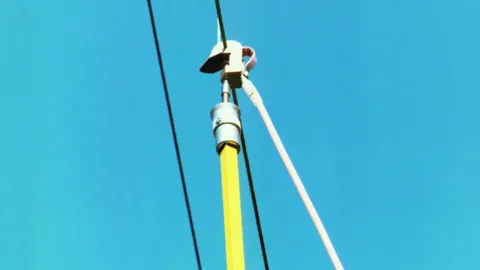

Drążki uziemiające do linii napowietrznych

Earthing sticks for mounting portable earthing and short-circuiting devices (single-pole/three-pole devices) on outdoor switchgear installations and overhead lines in accordance with EN 50110 (DIN VDE 0105-100).
  • Aluminium bayonet coupling with adjusting ring to fix the attached overhead line clamp
  • Telescopic stick, length continuously adjustable by means of robust aluminium star knob
  • Positive aluminium threaded coupling

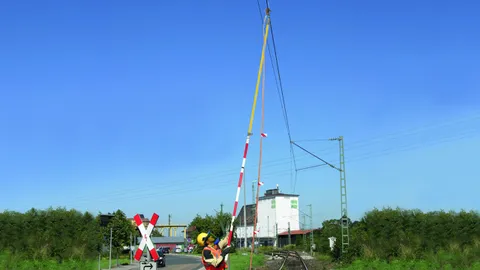

Drążki uziemiające do zastosowań kolejowych

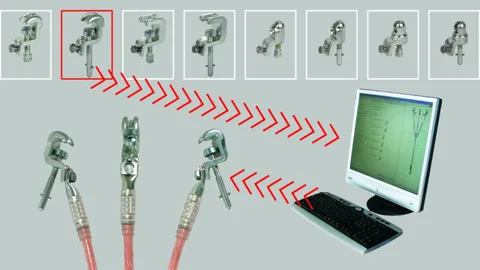

Konfigurator urządzeń do uziemiania i zwierania: łatwa konfiguracja online

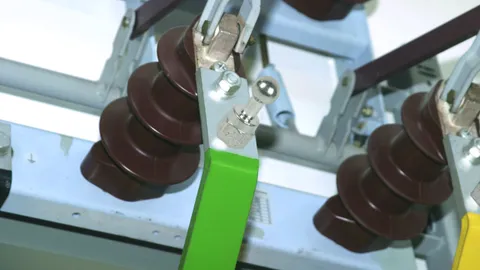

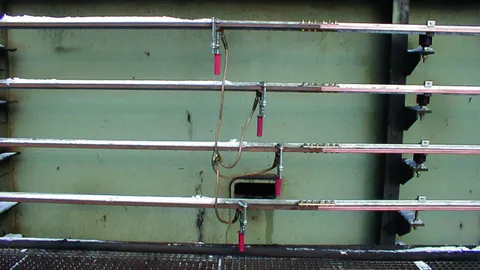

Szyna zwierająca

Earthing and short-circuiting devices in accordance with EN/IEC 61230 (DIN VDE 0683-100) for earthing and short-circuiting electrical installations at the work location in accordance with EN 50110 (DIN VDE 0105-100).An earthing stick has to be used for mounting the short-circuiting bar.
  • For copper or aluminium busbars up to a thickness of 25 mm
  • Other short-circuiting bar and earthing cable lengths available on request (standard lengths: short-circuiting bar = 500 mm, earthing cable = 2500 mm)
  • Available with T pin or hexagon shaft
  • Other busbar and earthing cable lengths can be selected online via the earthing and short-circuiting configurator

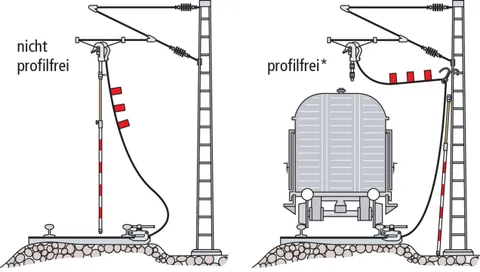

Zestawy do zastosowań kolejowych

Earthing and short-circuiting devices in accordance with EN/IEC 61230 (DIN VDE 0683-100) for earthing and short-circuiting electrical installations at the work location in accordance with EN 50110 (DIN VDE 0105-100).

Urządzenia do uziemiania i zwierania do zastosowań kolejowych

Earthing and short-circuiting devices in accordance with EN/IEC 61230 (DIN VDE 0683-100) for earthing and short-circuiting electrical installations at the work location in accordance with EN 50110 (DIN VDE 0105-100).

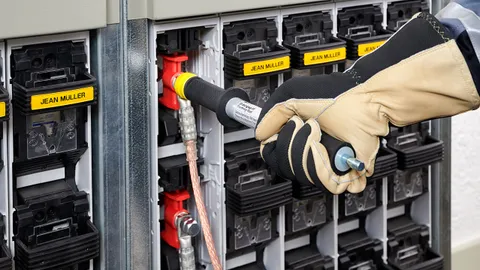

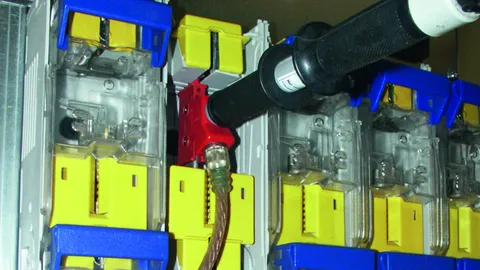

Urządzenia do uziemiania i zwierania (całkowicie izolowane) do szaf rozdzielczych nn

Earthing and short-circuiting device in accordance with EN/IEC 61230 (DIN VDE 0683-100) for earthing and short-circuiting electrical installations at the work location as equipotential bonding measure in accordance with EN 50110 (DIN VDE 0105-100).
  • Fully insulated (VI), shock-proof version
  • Fully equipped kits for cable distribution cabinets
  • Other cable lengths can be selected online via the earthing and short-circuiting configurator

Urządzenia do uziemiania i zwierania (częściowo izolowane) do szaf rozdzielczych nn

Earthing and short-circuiting device in accordance with EN/IEC 61230 (DIN VDE 0683-100) for earthing and short-circuiting electrical installations at the work location as equipotential bonding measure in accordance with EN 50110 (DIN VDE 0105-100).
  • Partly insulated (TI) version
  • Fully equipped kits for cable distribution cabinets
  • Other cable lengths can be selected online via the earthing and short-circuiting configurator

Urządzenia do uziemiania i zwierania do szynoprzewodów do wciągników i suwnic

Earthing and short-circuiting device in accordance with EN/IEC 61230 (DIN VDE 0683-100) for earthing and short-circuiting electrical installations at the work location as equipotential bonding measure in accordance with EN 50110 (DIN VDE 0105-100).Other cable lengths can be selected online via the earthing and short-circuiting configurator

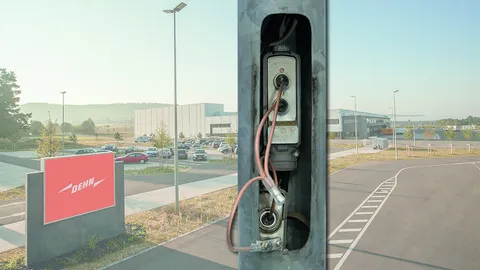

Urządzenia do uziemiania i zwierania do oświetlenia ulicznego

Earthing and short-circuiting device in accordance with EN/IEC 61230 (DIN VDE 0683-100) for earthing and short-circuiting electrical installations at the work location as equipotential bonding measure in accordance with EN 50110 (DIN VDE 0105-100).

Uchwyt uziemiający do instalacji niskiego napięcia

Earthing handle for attaching portable earthing and short-circuiting devices (single-pole/three-pole devices and short-circuiting bars) at power installations up to 1000 V in accordance with EN 50110 (DIN VDE 0105-100).
